Creation 55 Rigid Acoustic Herringbone - LVT - Flooring
Verified by manufacturer 8 months ago

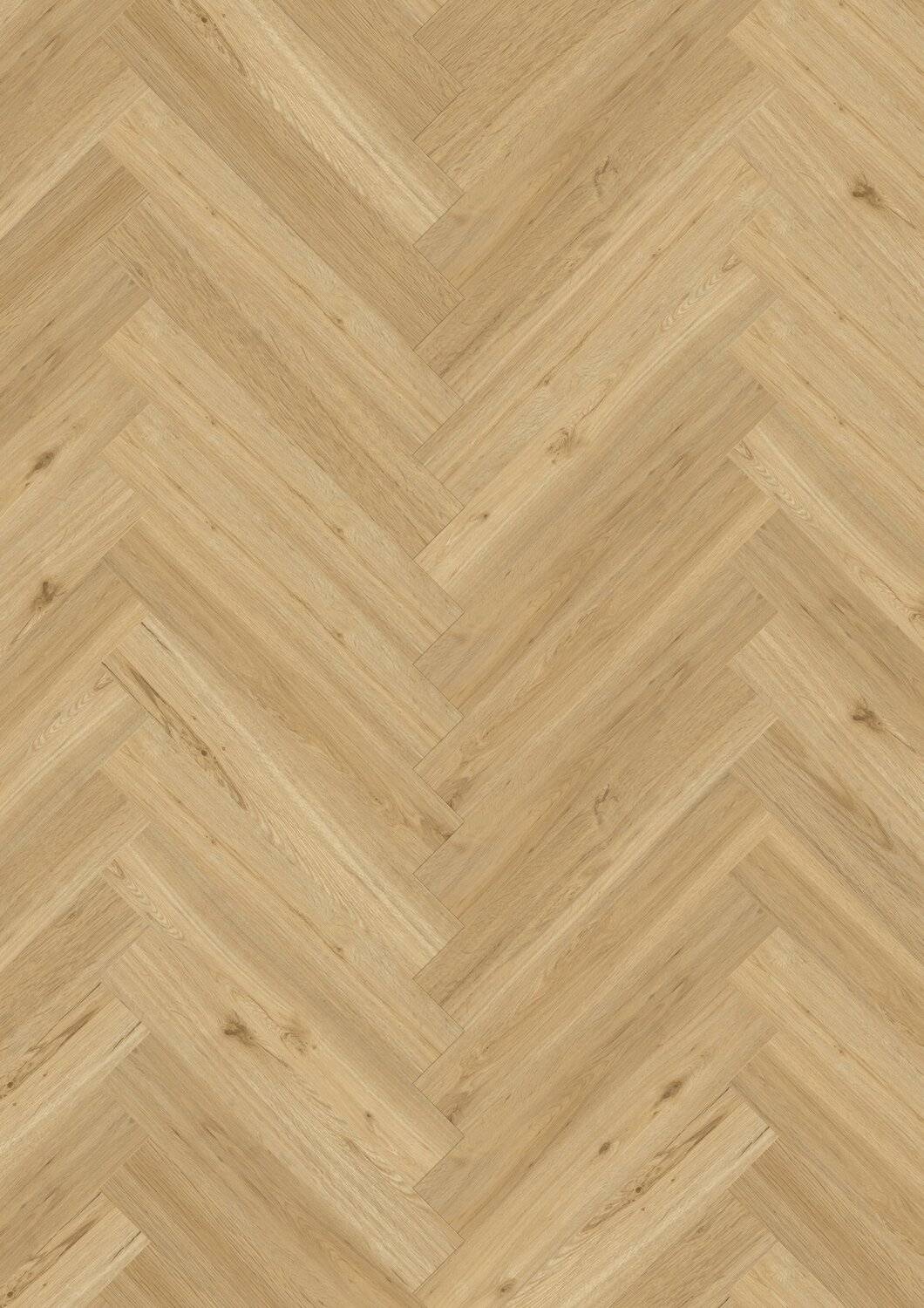

0347 - Ballerina
0347 - Ballerina
Synthetic, decorative, anti-static, abrasion group T floor coverings available in a plank form with a 0.55 mm transparent wear layer.
Application

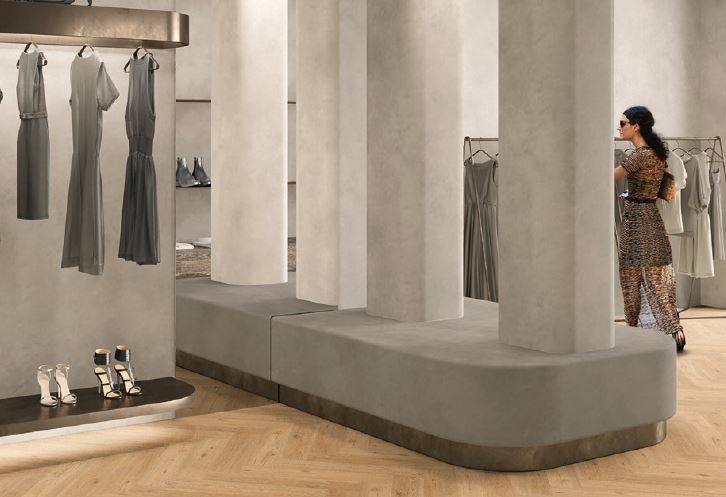

Suitable for light and medium traffic commercial areas including retail, leisure, health and fitness, hospitality, offices and other public spaces.
Description
Creation 55 Rigid Acoustic Herringbone is an interlocking floorcovering to provide robust and easy installation in a herringbone pattern. It comprises a 0.55 mm transparent wear layer for durability, a 4D design film for realistic designs, rigid core technology and an integrated underlayer which delivers 19dB of sound reduction. Creation 55 Rigid Acoustic Herringbone is finished with bevelled edges and an enhanced surface treatment, Protecshield™ for improved scratch and stain resistance, easy cleaning and an ultra matt finish. Available in two wood references.
Features and benefits:
- Protecshield™ surface treatment for easy cleaning and maintenance and enhanced scratch and stain resistance
- Slip resistant - R10.
- Wear Group T/ Type Binder classification I.
- Easy to install.
- Bevelled edges for enhanced authenticity.
- 100% recyclable and contains up to 35% recycled content.
- Matching skirtings and coverstrips available (specified separately).
- Also available as Creation 55 Herringbone glue down (specified separately).
Installation and maintenance:
Should be installed in accordance with the BS 8203: 2017 Code of practice for installation of resilient floor coverings. Installation and maintenance instructions are available.
General information
Color | Other |
Finish | Matt |
Material | Vinyl |
Shape | Rectangle |
Length | 750 mm |
Width | 125 mm |
Height | 6 mm |
Warranty description | 12 year |
Uniclass | |
CAWS | M50/110 Resilient floor tiling M50/10 Resilient floor tiling |
Product range |
Specification data - Polyvinyl chloride (PVC) tiles
Standard | To BS EN ISO 10582. |
Use class | To BS EN ISO 10874, class 33–42.Guidance for specification option: Commercial, very heavy - Light industrial, general. |
Slip potential | |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | R10.Guidance for specification option: To DIN 51130 slip resistance wet. |
Recycled content | 35%. |
Size | 125 x 750 mm.Guidance for specification option: Number of planks and sqm per box: 16/ 1.50m². |
Thickness | 6 mm.Guidance for specification option: To EN ISO 24346. |
Colour and pattern | 0347 Ballerina. |
Light reflectance | 28.4. |
Weight | 9480 g/m². Guidance for specification option: To EN ISO 23997. |
Wear resistance | <2.0 mm³. Guidance for specification option: To EN 660.2. |
Wear group | T. |
Binder | Type I. Guidance for specification option: Type binder content to ISO 10582. |
Dimensional stability (to BS EN ISO 23999) | ≤0.15%. Guidance for specification option: Average measured value ≤0.05%. |
Residual indentation (to EN-ISO 24343-1) | ≤0.10 mm. |
ThermalConductivity | 0.25 W/m·K. Guidance for specification option: To EN ISO 10456. |
Surface treatment | Protecshield™. |
Chemical resistance (to EN-ISO 26987) | OK. |
Static electricity | <2 kV. Guidance for specification option: To BS EN 1815, static electricity electrical propensity. |
Fire classification (EN 13501-1) | Bfl-s1. |
VOC emissions | <10 µg/m³. Guidance for specification option: To ISO 16000-6, TVOC after 28 days. |
Accessories | Design skirtings. Paintable white skirtings. Design coverstrips. Entrance matting. Underlay. Manufacturer guidanceConsult manufacturer and insert requirements. |
Wear layer thickness | 0.55 mm. Guidance for specification option: To EN ISO 24340. |
Impact sound reduction (to EN-ISO 717-2) | 19 dB. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Europe |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 35 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Creation 55 Herringbone
Creation 55 - 2022 Collection
