CS Louvres Ventilation Louvre A-2097 - Slimline Modular Ventilation Louvres

Name: CS Louvres Ventilation Louvre A-2097 - Slimline Modular Ventilation Louvres
Brand: Construction Specialties (UK) Ltd
SKU: xhnMrK2w7t5qfmncJP7rZe

Verified by manufacturer 2 days ago

Standard frame, visible mullion

Construction Specialties (UK) Ltd

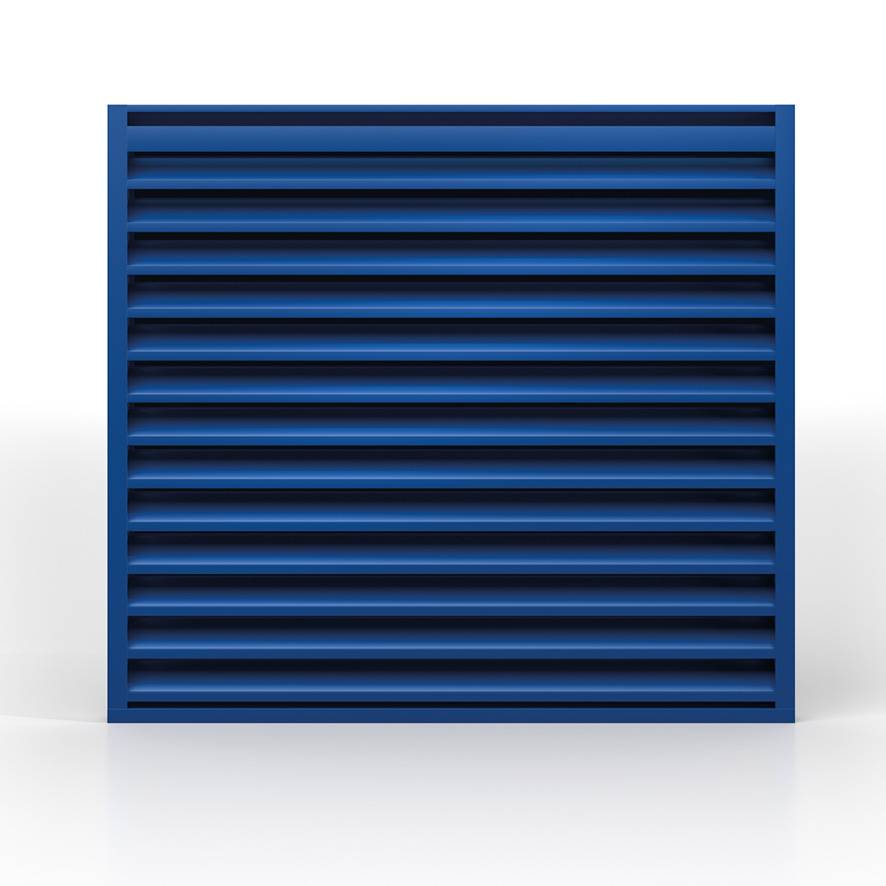

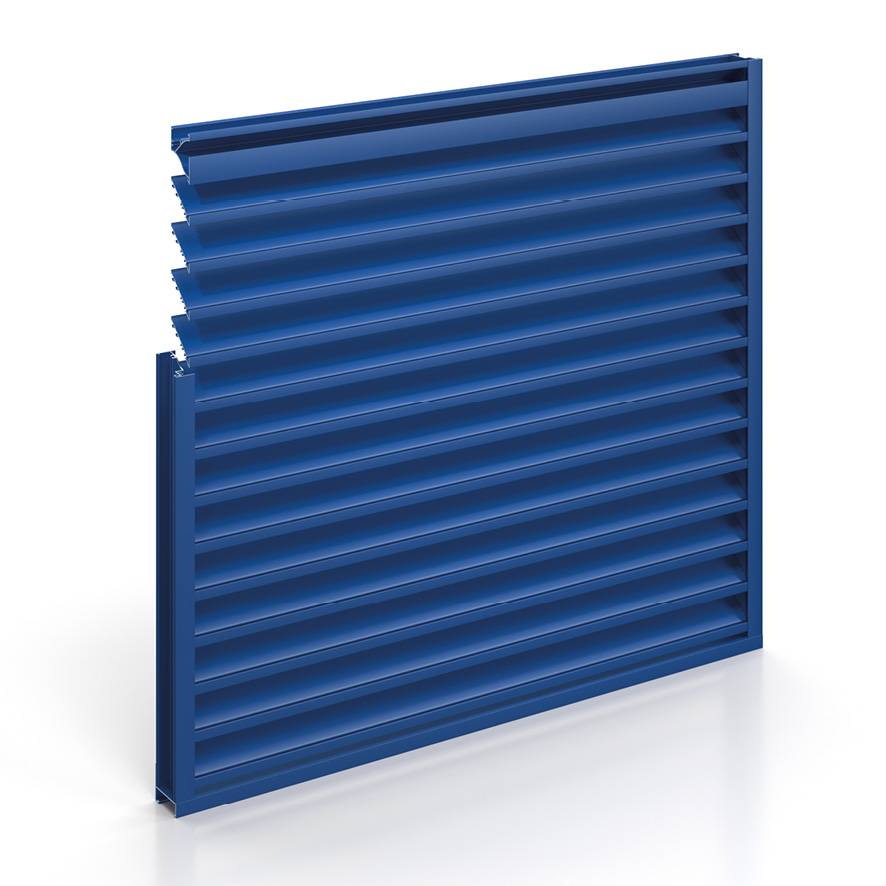

Slimline modular ventilation louvres offering excellent airflow performance, classified as Class C rain defence in natural ventilation conditions.

Jump to:

Request BIM

+44 (0)1296 652800 Website

Application

For applications where a high free area / high airflow ventilation louvre is required. Suitable for applications with permanent mechanical extract ventilation, such as data centres.

Description

Slimline modular ventilation louvres offering excellent airflow performance, classified as Class C at 0.0 m/s.

Features and benefits:

Slimline design offers efficient airflow (class 2 entry and class 1 discharge) and low pressure drop.
Blade and vertical section channels assist in rainwater drainage.
Interlocking mullions align with façade elements; optional hidden mullion enables a continuous blade appearance on the facade.
Supplied as modular units for simplified installation.

General information

Color	Silver Other
Finish	Anodized Mill Powder-coated
Material	Aluminium
Shape	Square Rectangle
Length	53 mm Guidance for specification option: Unit depth with standard frame, visible mullion. 54 mm Guidance for specification option: Unit depth with glazing frame. 129 mm Guidance for specification option: Min. 129 mm - unit depth for hidden mullion configuration or where blade support is required on a single unit. Manufacturer guidance Unit depth including blades and mullions.
Width	Bespoke Guidance for specification option: Module dimensions (based on 1.5 kPa wind load): Max height: 3600 mm* Max width: 3600 mm* *For manual handling purposes, a maximum of 80 kg per unit is recommended. Louvre weight, based on a 2 m x 2 m module size, is 12 kg/m².
Height	Bespoke Guidance for specification option: Module dimensions (based on 1.5 kPa wind load): Max height: 3600 mm* Max width: 3600 mm* *For manual handling purposes, a maximum of 80 kg per unit is recommended. Louvre weight, based on a 2 m x 2 m module size, is 12 kg/m².
Warranty description	Two year Guidance for specification option: Product warranty. 30 year Guidance for specification option: Up to 30 year finish warranty (powder-coated or anodized). Subject to terms and conditions.

Uniclass	Pr_30_59_48_04 Aluminium louvre panel unitsPrimary Ss_25_10_20/540 Custom-made louvres
CAWS	H11/140 Louvres L10/54 Louvres L10/650 Metal louvres

SKU Code	A-2097

Specification data - Aluminium louvre panel units

Classification data
Size (l x w x d)	- Manufacturer guidance Insert requirements or insert As drawing or As schedule. Unit depth: 53 mm. Maximum dimensions (based on 1.5 kPa wind load): Maximum height 3600 mm. Maximum width 3600 mm. Combine units to suit any requirements. *For manual handling purposes, a max of 80 kg per unit is recommended. Louvre weight is 12 kg/m², based on a 2 m x 2 m module size. Blade supports may be required due to unit width or wind load.
Material	Aluminium alloy 6063-T6.
Finish	Milled. Polyester powder-coated, matt, colour. Guidance for specification option: Insert colour requirements. Polyester powder-coated, gloss, colour. Guidance for specification option: Insert colour requirements. Anodized, clear. Anodized, colour. Guidance for specification option: Insert colour requirements.
Colour	As Finish.
Construction	Standard frame, visible mullion. Guidance for specification option: For invisible joint detail select 'Standard frame, hidden mullion' variant.
Weather performance	-
Water penetration class (minimum)	To BS EN 13030, Class C. Guidance for specification option: At 0.0 m/s.
Discharge loss coefficient (minimum)	To BS EN 13030, Class 1. Guidance for specification option: Airflow coefficient Ce (entry): Class 2, 0.383; Cd (discharge): 0.423.
Louvre configuration	-
Number of banks	One.
Blade orientation	Horizontal.
Blade pitch	54 mm.
Blade angle	Fixed.
Accessories	Not required. Bird/ vermin guard, galvanized steel welded mesh. Bird/ vermin guard, expanded aluminium welded mesh. Blanking panel, single-skin. Blanking panel, insulated panels. Insect mesh. Louvred doors and gates. Dampers.

Sustainability data

Material	Aluminium
Recyclability	Yes.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	55 % Guidance for specification option: Minimum 55% recycled content (mix of pre- or post-consumer scrap). Consult manufacturer should other aluminium alloy type be required.
