D298 Strainer
Verified by manufacturer 7 days ago
DN15
DN15
A bronze pipeline strainer.
Application
Suitable for potable water applications.
Description
A bronze pipeline strainer.
Features and benefits:
- A generous use of pipeline strainers will make a significant contribution to the reliability of a piping system and to optimise performance of the equipment - pumps, valves, flow measuring devices, traps etc.
- Strainers are a low cost investment for any piping system and result in reduced maintenance costs as well as minimising ‘downtime’ by protecting the circuit from damage by foreign matter.
- WRAS approved.
General information
Specification data - Water strainers
Material | Bronze to BS EN 1982 CC491K, Stainless steel to A.I.S.I. type 304, PTFE and Aluminium.Guidance for specification option: Body, Cap: Bronze, Mesh: Stainless Steel; Cap Seal: PTFE; ID Plate: Aluminium. |
Mesh size | 0.75 mm. |
Connections | |
Type | Threaded.Manufacturer guidanceEnd connections threaded to BS EN 10266 (BS 21 Taper ISO R7) & B1.20.1 ANSI. |
Size | 15 mm. |
Dimensions | 58 x 55 mm. Manufacturer guidanceRefer to technical datasheet for detailed dimensions. |
Weight | 0.16 kg. |
Standards | To BS EN 1982 and BS EN 10266 (BS 21 Taper ISO R7). |
Approvals | The Water Regulations Advisory Scheme (WRAS). |
PressureRange | Temperature: -10 to +100°C: 16 bar, Temperature: 170°C: 7 bar. |
Sustainability data
Material | Bronze |
Recyclability | Recyclable Guidance for specification option: Recycle locally, consult manufacturer for details. |
Expected Life | 20 year |
Similar products from Crane Fluid Systems
FM276 Strainer

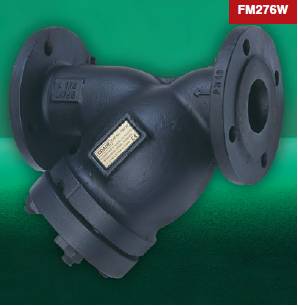

FM276W Strainer
