D997F E-PICV+ - PN16 Pressure Independent Control Valve
Verified by manufacturer 6 days ago
DN65
DN65

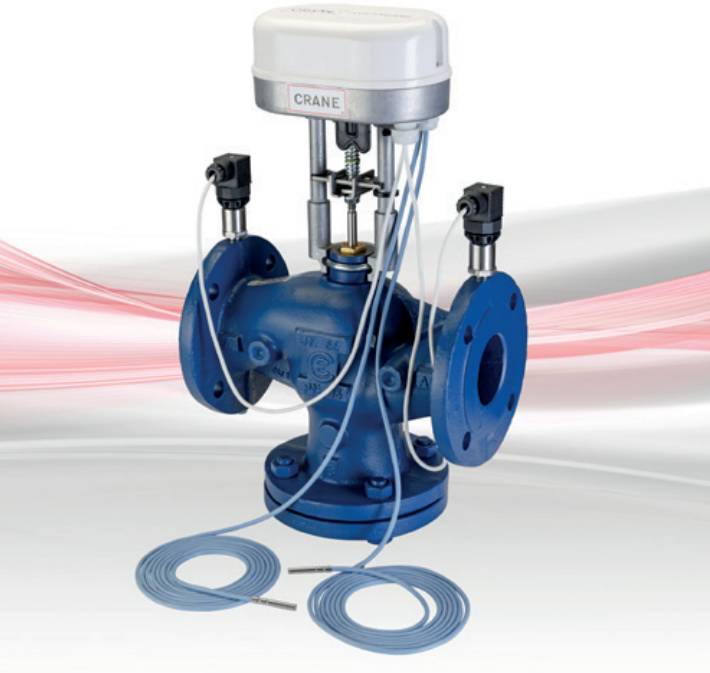

Electronic pressure independent control energy valve. Controls the heat transfer, optimises delta T and automatically regulates flow, regardless of pressure fluctuations in the system.
Application
Energy monitoring, thermal power control and ΔT maximisation functions to optimise system efficiency.
Medium: Group 2 liquids.
Description
Electronic pressure independent control energy valve (PICV).
Controls the heat transfer, optimizes delta T and automatically regulates flow, regardless of pressure fluctuations in the system, through the use of pressure transducers, temperature sensors and a high-speed actuator.
This combination with the addition of Modbus connectivity also allows for energy monitoring and data exchange with the Building Management System (BMS).
Features and benefits:
- Energy monitoring, thermal power control and ΔT maximisation functions to optimise system efficiency.
- Precise flow control using integrated pressure transducers.
- BMS connectivity through Modbus RTU for control and data collection.
- Configurable control method via Modbus or voltage to suit application.
- Able to track position, flow and ΔP through feedback signals.
- Quick and easy maintenance using diagnostic functions and LED behaviour indicating operating status and any errors.
- Accurate over wide ΔP range to 800 kPa.
- Class IV leakage.
General information

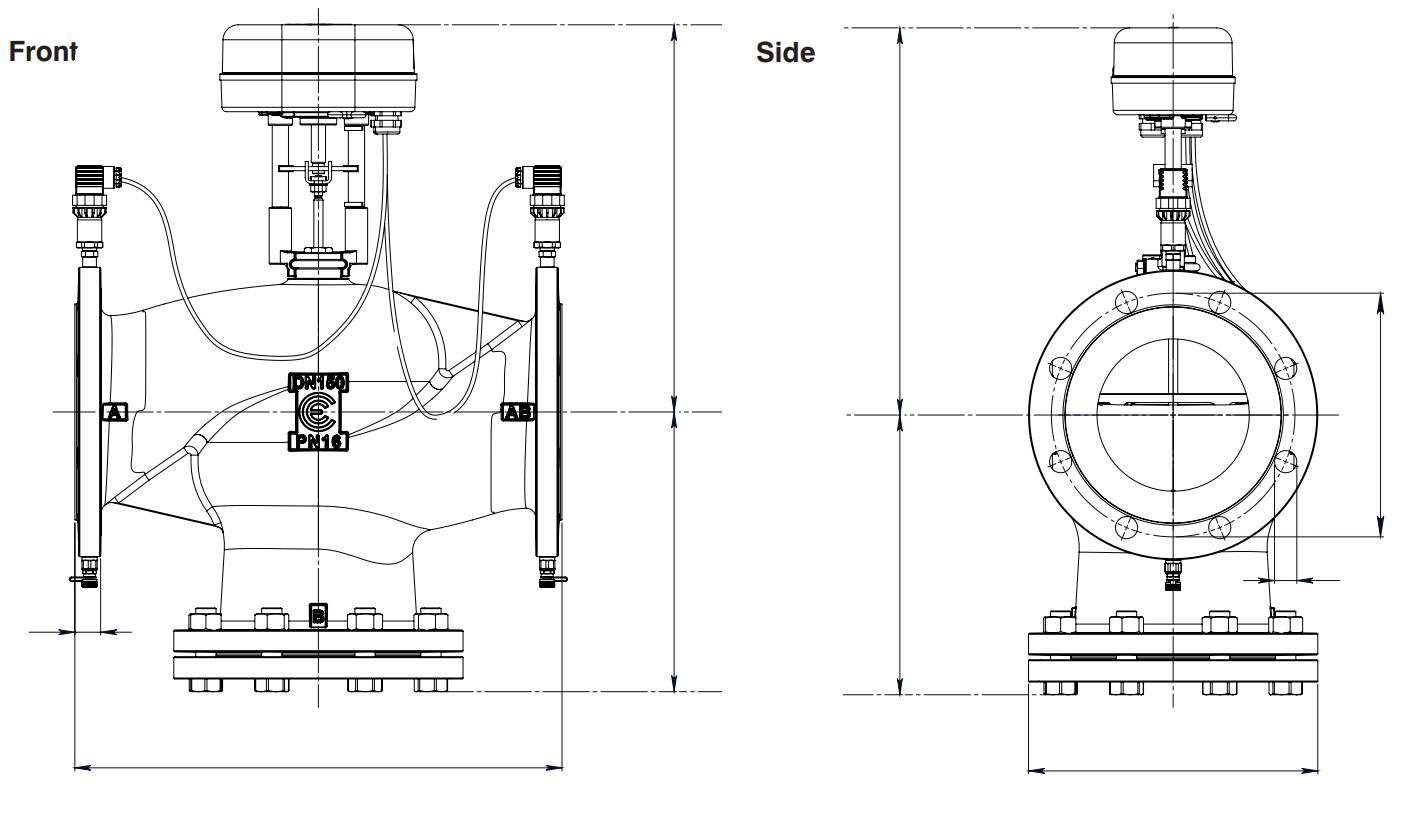

Color | Blue |
Material | Cast iron |
Shape | Other |
Length | 290 mm Guidance for specification option: DN65. 310 mm Guidance for specification option: DN80. 350 mm Guidance for specification option: DN100. 400 mm Guidance for specification option: DN125. 480 mm Guidance for specification option: DN150. |
Width | 185 mm Guidance for specification option: DN65. 200 mm Guidance for specification option: DN80. 220 mm Guidance for specification option: DN100. 250 mm Guidance for specification option: DN125. 285 mm Guidance for specification option: DN150. |
Height | 495 mm Guidance for specification option: DN65. 516 mm Guidance for specification option: DN80. 547 mm Guidance for specification option: DN100. 619 mm Guidance for specification option: DN125. 657 mm Guidance for specification option: DN150. |
Uniclass | |
CAWS | S90/650 Flow-reducing/ servicing valves |
Specification data - Pressure-independent control valves
Pressure rating | PN16.Guidance for specification option: Maximum close off pressure: 800 kPa. Operational ∆P range: 35–800 kPa. |
Temperature range | -10–110°C.Guidance for specification option: Ambient temperature: -10–50°C. |
Material | Grey iron EN GJL-250.Guidance for specification option: Body, end cap and seat. Other components: Brass plug; stainless steel stem. |
Connections | Flanges to BS EN 1092-2. |
Actuator | Manufacturer's standard.Guidance for specification option: Protection: IP54. Consult manufacturer for further details. |
Accessories | Pressure and temperature sensors.Guidance for specification option: Protection: IP65. Pressure sensors:
Temperature sensors:
|
Overall size | 290 x 185 x 495 mm. Guidance for specification option: Length x width x overall height. |
Weight | 18 kg. |
Holes | Four. |
Flow rate | 3.3–10.3 L/s. |
Voltage supply | 24 V a.c./d.c. 230 V a.c. |
Technical characteristics, other | Control signal: 0–10 V d.c., 2–10 V d.c., 0–5/2–6 V d.c. and 4–20 mA |
Sustainability data
Country of product manufacture | Europe |
Material | Cast iron |
Recyclability | Recyclable Guidance for specification option: Recycle locally, consult manufacturer for details. |
Expected Life | 20 year |
