Damex FR Non-Combustible DPC & Cavity Tray - Damp-Proof Course & Cavity Tray
Verified by manufacturer 1 day ago
KIWA BDA
Certificate type
A non-combustible, flexible damp-proof course (DPC) and cavity tray fabric with high temperature polymer coating and stainless steel fixing components.
Application
Used as a Type A damp-proof course and cavity tray in multi-unit and high-rise buildings, where non-combustible materials and compliance with Approved Document B are required.
Description
The Damex FR Flexible DPC & Cavity Tray is a unique, high performance, non-combustible fabric with a waterproof high temperature polymer coating to both sides, achieving A2-s1,d0 to EN 13501-1.
Available with a range of ancillary components to aid ease of installation.
Features and benefits:
- Manufactured in accordance with BS EN 14909.
- KIWA BDA certified.
- High performance adhesive sealant included.
- Stainless steel fixing strips with pre-drilled holes included.
- Preformed units and corners available on request (made to order).
- Stainless steel joint supports provided.
- Cavity wall weep vents included.
General information
Color | Black |
Finish | Coated |
Material | Glass Fibre Polymer Stainless steel Composite |
Shape | Other |
Length | 25000 mm |
Width | 100 mm 150 mm 300 mm 450 mm 500 mm |
Height | 0.5 mm |
Uniclass | |
CAWS | F30/320 Damp-proof courses – plastics F30/46 Damp-proof courses – plastics F30/370 Preformed cavity trays F30/56 Preformed cavity trays |
Sustainability data
Material | Glass Fibre Polymer Stainless steel Composite |
Expected Life | 60 year |
Product certifications
KIWA BDA
BAW-24-330-P-A-UK - BDA Damex FR Non-Combustible DPC & Cavity Tray
Literature
Literature type
Damex FR Adhesive TDS 05082025
Damex FR Fixing Strip TDS 16092025

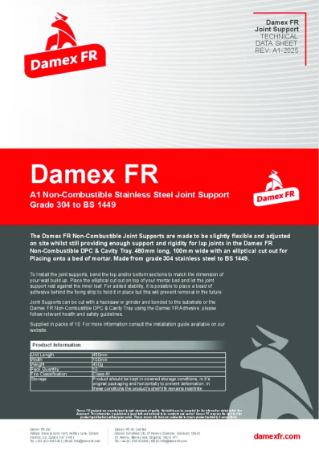

Damex FR Joint Support TDS 16092025

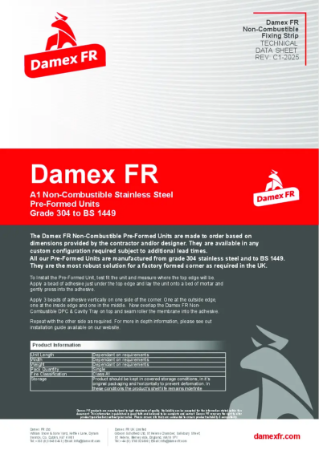

Damex FR Pre-Formed Units TDS 16092025

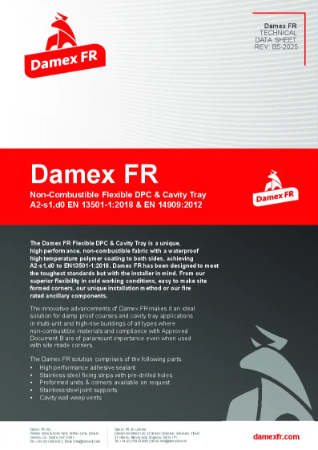

Damex FR Non-Combustible DPC & Cavity Tray TDS 05082025

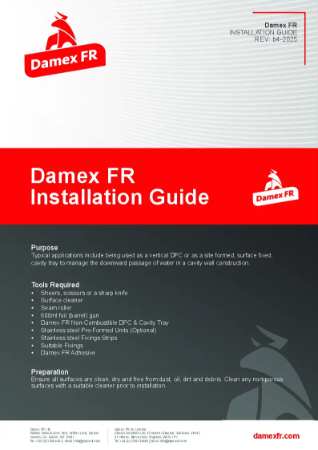

Damex FR Non-Combustible DPC & Cavity Tray Installation Guide 05082025
