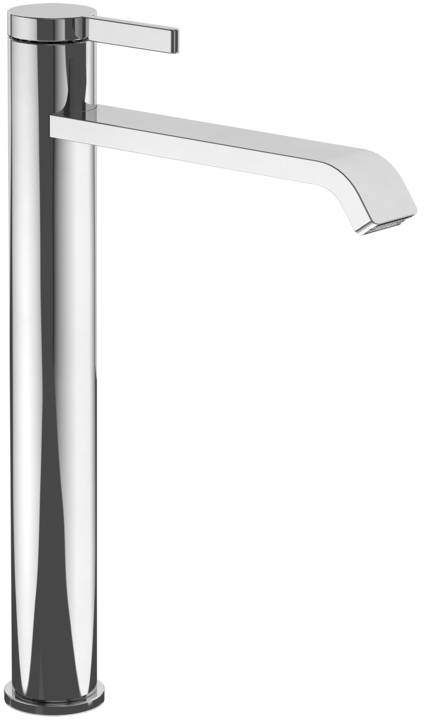

Dawn Tall Single-lever Basin Mixer TVW106106152
Verified by manufacturer 8 months ago
Tall, single lever basin mixer.
Application
For basins.
Description
Surface-mounted, single lever basin mixer. Without waste; cartridge with ceramic discs.
Features and benefits:
- Air Plus - An aerator enriches the water with air for a particularly soft, water-saving jet.
- Aqua Smart - Sustainable, limited water flow: saving water without sacrificing on performance.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Length | 311 mm |
Width | 207 mm |
Height | 38 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Mixer taps
Form | Mixer taps. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 4.7 L/ min. |
Integral accessories | Cartridge with ceramic discs. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 3Ds Max | - | 1 |
 ARCHICAD | - | 1 |
 IFC | - | 1 |
 OBJ | - | 1 |
 SketchUp | - | 1 |
