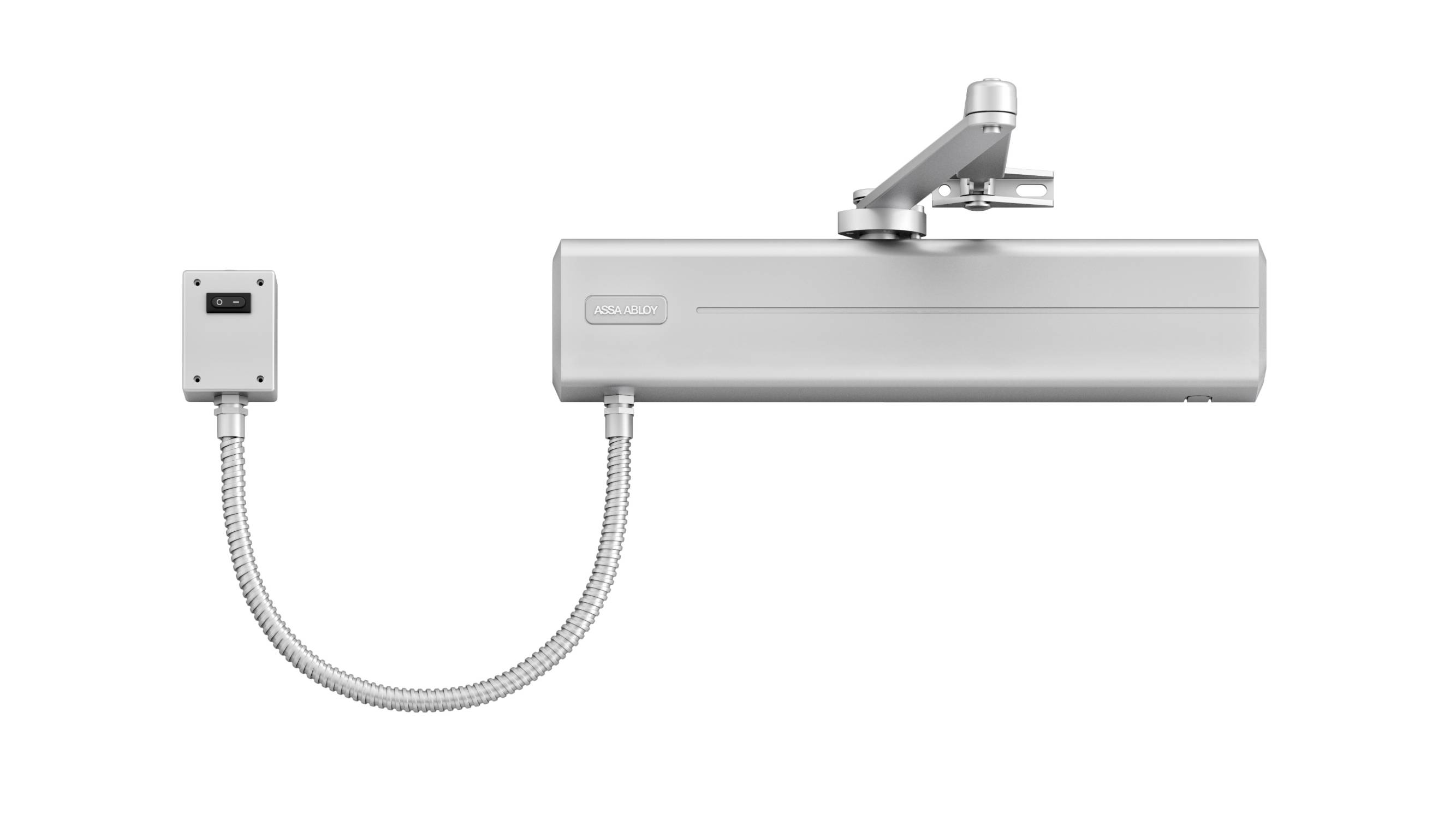

DC300G-HF - 3-6 Electro-magnetic Free Swing/ Hold Open Door Closer
Verified by manufacturer 1 month ago
DC300GHF/SS - EL-MECH DOOR CLOSER
DC300GHF/SS - EL-MECH DOOR CLOSER
Hold open, free swing door closer.
Application
- Suitable for fire and smoke controlled doors.
- Suitable for larger doors.
- Suitable for door widths up to 1400 mm (size 6, 120 kg).
Description
High efficiency rack and pinion, electromechanical door closer with standard, hold open and free swing modes. Softmotion release closing helps prevent damage to doors set and injury to users, extending the door closer and door set life span.
Features and benefits:
- Changes between hold open and free swing modes in seconds.
- Adjustable power size EN 3-6.
- Holding force greater than 120Nm.
- Junction box non-polarity sensitive.
- Unhanded.
- 14 mm height adjustment.
- Tamper proof arm.
- BS 8300 compliant in standard, hold open and free swing modes.
General information
Color | Silver |
Material | Stainless steel |
Shape | Rectangle |
Length | 57 mm |
Width | 318 mm |
Height | 60 mm |
Warranty description | Ten year Guidance for specification option: Mechanical warranty; Two year electrical warranty. |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Specification data - Controlled door closers
Standard | To BS EN 1154 and EN 1155. |
Classification grades (minimum) | |
Category of use | 3. |
Durability | 8. |
Door closer power size | Adjustable 3–6. |
Suitability for use on fire and smoke doors | 1. |
Safety | 1. |
Corrosion resistance | 3. |
Form | Overhead, face fixed. |
Closer functions | Back check.Controlled closing.Latching. |
Materials and finishes | |
Casings | Stainless steel. |
Colour | Stainless steel. |
Execution | Adjusting controlled door closers. |
Sustainability data
Material | Stainless steel |
Recyclability | 70 Manufacturer guidanceMetals widely recycled. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 70 % |
Literature
DC300G-HF
