Degafloor Cycle Route System - Resin Flooring

Name: Degafloor Cycle Route System - Resin Flooring
Brand: Degafloor Ltd
SKU: wjCZREbdvpjwN1367XsT4D

Verified by manufacturer 20 days ago

Degafloor Ltd

Third party certifications:

QA Certificate
Certificate type
UK Conformity Assessed (UKCA)
Certificate type
BBA Agrément Certificate
Certificate type
BREEAM - Certification
Certificate type

Anti-skid cycle route system, designed on quick curing MMA resins, slip resistance, and choice of colour.

Jump to:

BOS

+44 (0)1778 342545 Website

Application

Suitable for external use on both concrete and asphalt substrates.

Applications include:

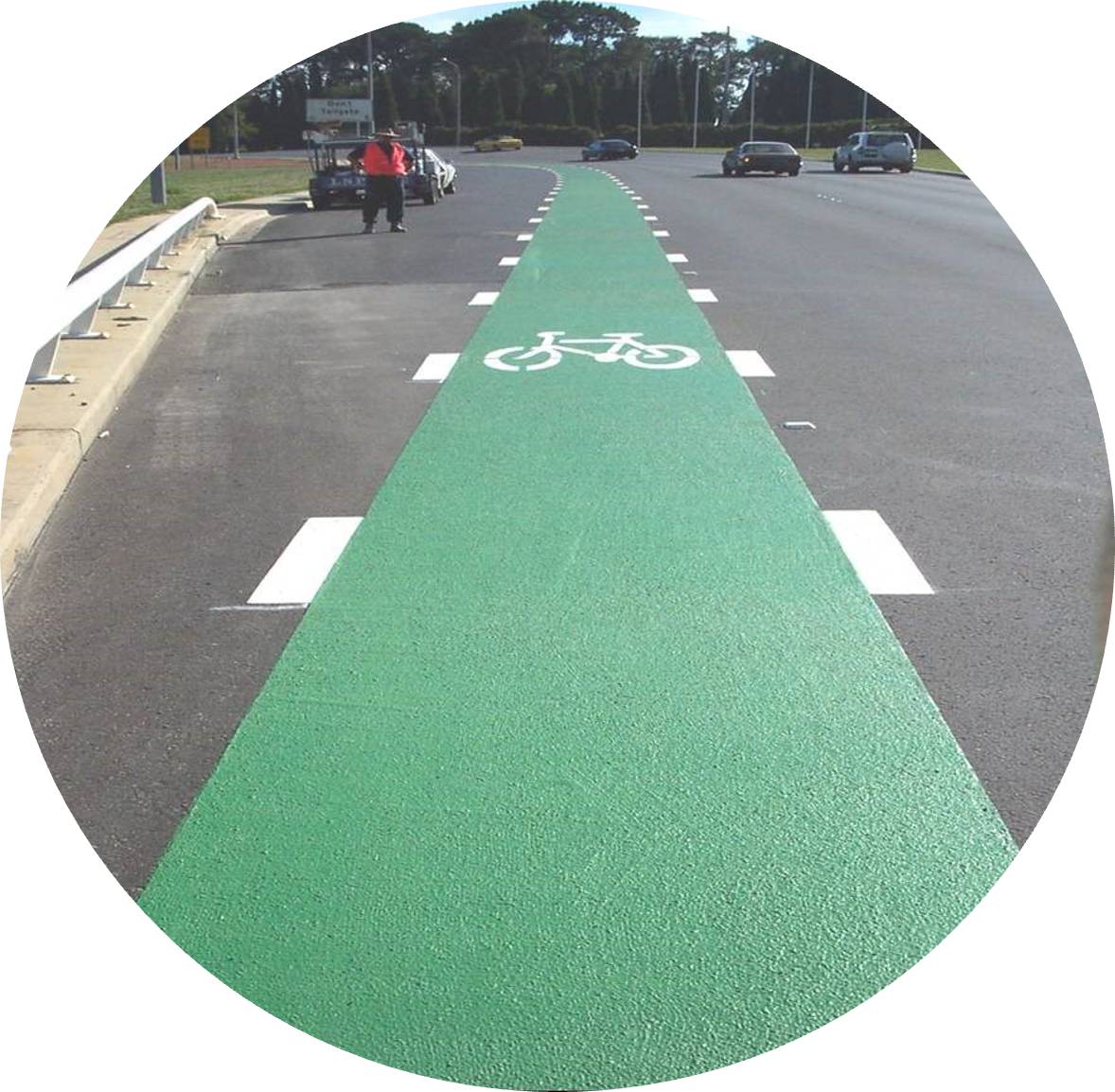

Cycle lanes.
Pedestrian routes.
Bus Lanes.
Pedestrian crossings.
Highway area marking.
Anti-skid surfacing.
Use with road salts.

Description

Delivering a slip and skid resistance to any pedestrian or vehicular area.

Manufactured from methyl methacrylate resin. Offers durability, flexibility and resistance to extreme operating conditions.

Features and benefits:

Fully cured within 20 minutes. Ready for full traffic and no need to repair year after year.
Bonds to asphalt. No need to prime, minimal preparation is required.
Impervious. Will not suffer freeze/ thaw damage and failure.
Chemical resistance
Cold applied. No health and safety issues associated with hot trades and minimal environmental impact.
Thermal stability/ UV stability. Flexible allowing for fluctuations in temperature during summer and winter months, with UV stability.
Manufactured in accordance with ISO 9001:2015, ISO 14001:2015 and ISO 18001:2007 Quality and Management Systems.

General information

Color	Black Guidance for specification option: Stock colours. Blue Guidance for specification option: Made to order colours. Green Guidance for specification option: Made to order colours. Grey Guidance for specification option: Stock colours. Purple Guidance for specification option: Made to order colours. Red Guidance for specification option: Stock colours. White Guidance for specification option: Stock colours. Yellow Guidance for specification option: Made to order colours. Show more Manufacturer guidance Stock colours include traffic grey, mid grey and traffic red. Made to order colours also include traffic purple, traffic blue, traffic green and traffic yellow.
Material	Methyl methacrylate Guidance for specification option: Methyl methacrylate resin. Resin
Shape	Formless
Warranty description	Five year Guidance for specification option: Pothole repair product called Degafill, which is designed for repairs within asphalt.

Uniclass	Ss_30_42_54_75 Resin flooring systemsPrimary
CAWS	M12/110 Resin flooring M12/10 Resin flooring

Product range	Highways and car park marking solutions

Specification data - Resin flooring systems

Substrate	-
Testing	Surface hardness of substrate(s).
Preparation	Preparation of existing substrates. Manufacturer guidance All substrates must be clean, dry and free from contamination. Concrete substrates must be mechanical prepared by means of shotblasting, planning or diamond grinding and will require priming. Asphalt substrates may not require priming, a bond test will confirm.
Primer	Resin coating primers.
Resin flooring	Resin floor coatings Floor seals
Surface treatment	Slip-resistant surface treatments. Surface treatment fine aggregates. Floor surface sealers.
Movement joints	-
Type	Resin flooring strip movement joints.
System completion	Testing slip resistance.

Colour	Black. Guidance for specification option: Stock colours. Mid Grey. Guidance for specification option: Stock colours. Traffic Blue. Guidance for specification option: Made to order colours. Traffic Green. Guidance for specification option: Made to order colours. Traffic Grey. Guidance for specification option: Stock colours. Traffic Purple. Guidance for specification option: Made to order colours. Traffic Red. Guidance for specification option: Stock colours. Traffic Yellow. Guidance for specification option: Made to order colours. White. Guidance for specification option: Stock colours. Show more
Cure time	20 minutes.
Material	MMA. Guidance for specification option: Methyl methacrylate resin.
Third-party certification	To British Board of Agrément-certified (20/Q064).
Cleaning options	Guidance for specification option: Cleaning equipment and products for all industrial and commercial floor maintenance. Consult manufacturer and insert requirements or omit: Heavy Duty Wet Vacuum 30 Litre. Heavy Duty Wet Vacuum 60 Litre. Degafloor Eco-Clean. The DegaWash Range. Swift95. The Maxey. Emex. Crusader. Manufacturer guidance Floor Cleaning Solutions. See manufacturer literature 'DegaClean Cleaning & Maintenance Brochure'.

Sustainability data

Material	Methyl methacrylate Guidance for specification option: Methyl methacrylate resin. Resin

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Third party certifications

QA Certificate

BSI UKCA Certificate of Performance - BS EN 1504-2 : 2004 Products and Systems for the Protection and Repair of Concrete Structures Part 2: Surface Protection Systems for Concrete
