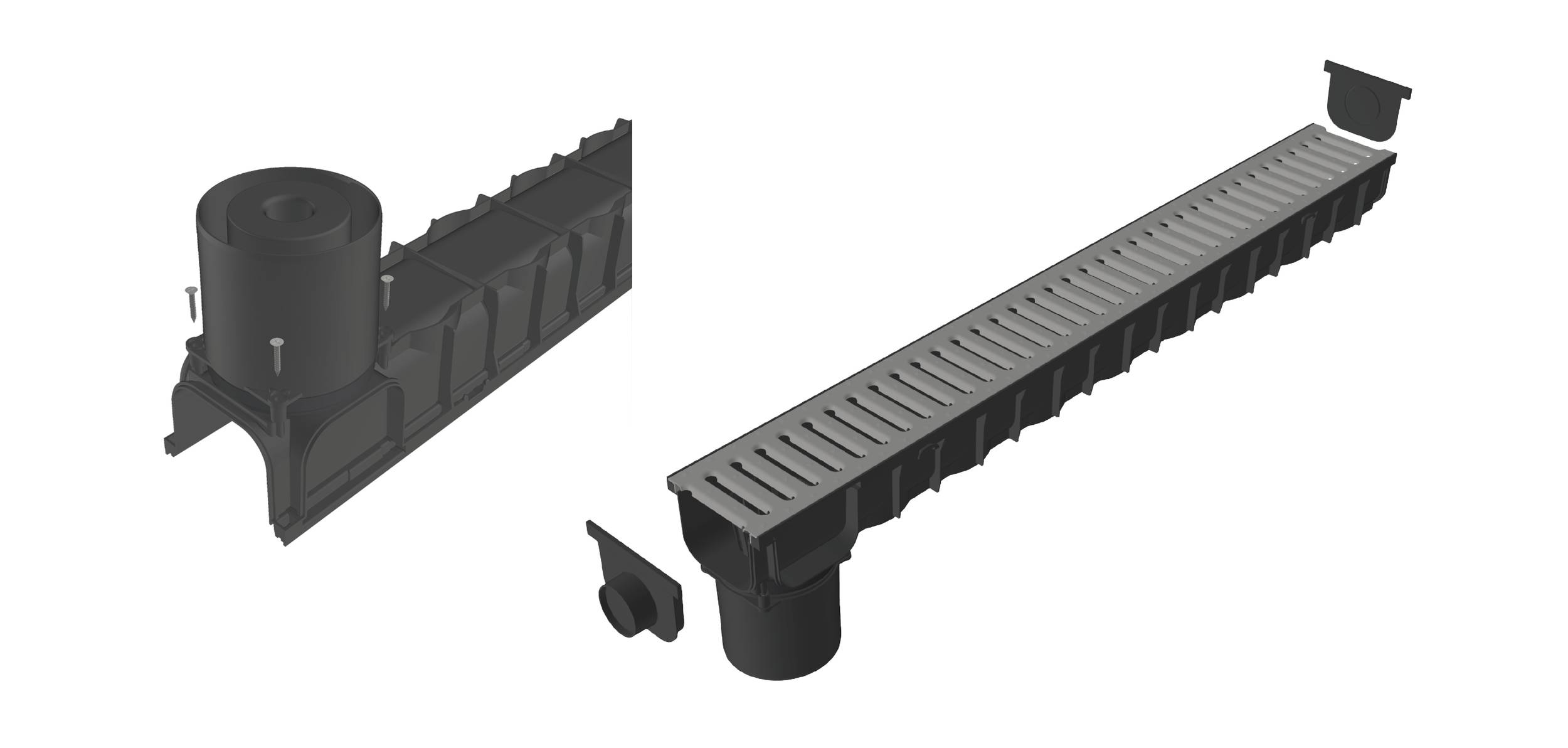

DekDrain A15 Sump Kit
Verified by manufacturer 8 days ago
A15 sump kit.
Application
For use within drainage channels
Description
Connects any 50 mm/2” outlet to 100 mm/4” underground drainage pipe. The outlet connector is rotational in any direction as well as adjustable from 0–90 degrees.
Sump; 84 mm In-line trapped Sump/Gully with dip-tube trap and leaf Guard. This inexpensive clever unit will replace the bottom outlet with a 110 mm connection to below ground pipework. Seals to the underside of the channel with a rubber seal and four screws, the dip tube trap is inserted from inside under the grating and leaf guard fitted all in one handy bag.
The kit contains:
- Rubber Gasket.
- Trapped Sump/Gully.
- Four screws.
- Removable leaf guard.
- End Cap.
- End Cap.
General information
Color | Black |
Finish | Smooth |
Material | Polypropylene |
Shape | Circle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | R11/315 Floor drains R11/5 Floor drains |
SKU Code | DCD-VL |
Specification data - Floor gullies
Classification data | |
Properties | |
Body | |
Configuration | Trapped Sump/ Gully. |
Material | Polypropylene. |
Cover or grating | |
Cover or grating type | Removable leaf guard. |
Outlet | Vertical one-part fixed. |
Load class (minimum) | A 15. |
Integral accessories | Rubber gasket, ends caps and fixings. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Manufacturing plant location | |
Material | Polypropylene |
Recyclability | yes |
Expected Life | Ten year |
Literature
Literature type

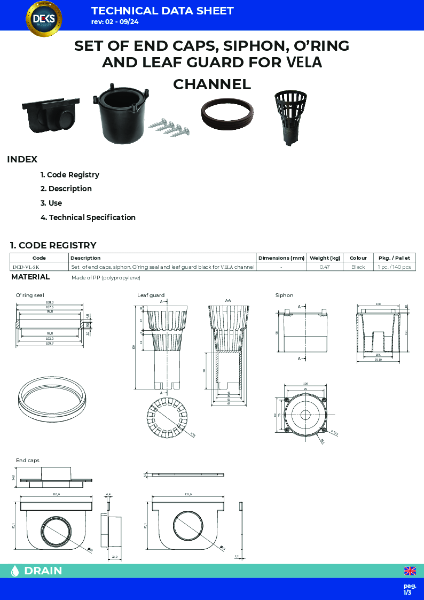

SET OF END CAPS, SIPHON, ORING AND LEAF GUARD FOR VELA CHANNEL
