DEVIreg™ 610 Controller - Electronic Thermostat - UFH
Verified by manufacturer today
Electronic thermostat with IP44 protection, for frost protection applications.
Application
Suitable for frost protection in domestic applications.
Description
Electronic thermostat with IP44 protection, provided with a 2-pole switch and a wire sensor to control the desired temperature.
Features and benefits:
- On/ off switch.
- Terminals for normally opened (NO)/ normally closed (NC) connection.
- LED light indicates the current mode (heating, standby or fault).
- Mounts directly onto any plain surface (indoor or outdoor).
- Low energy consumption.
- IP44 protection.
- Includes a button for adjusting the temperature setting with a scale from -10°C to +50°C.
- Water-resistant.
- Compliant with EN/IEC 60730-1 (general) and EN/IEC 60730-2-9 (thermostat).
General information
Color | White |
Shape | Rectangle |
Length | 45 mm Manufacturer guidanceDepth. |
Width | 69.5 mm |
Height | 100 mm |
Warranty description | Two year |
Uniclass | |
CAWS | T90/485 Thermostats |
SKU Code | 140F1080 |
Specification data - Electronic trace heating thermostats
Standards | To BS EN 60730-1 and BS EN IEC 60730-2-9. |
Application | Ambient air and surface. |
Temperature range | |
Set points | Adjustable. |
Control range | -10 to +50°C. Guidance for specification option: Hysteresis: ±0.2°C. |
Switch arrangement | |
Type | 2-pole switch. |
Current rating | 10 A. Guidance for specification option: Maximum. |
Voltage rating | 230 V a.c. Guidance for specification option: Operation voltage: 220–240 V. 50/60 Hz. |
Enclosure | |
Ingress protection (minimum) | IP44. |
Exposure limits | -30 to +55°C. Guidance for specification option: Ambient temperature range. Storage temperature: -20 to +65 °C. |
Visual indication | 'Heating On' LED. 'Standby' LED. 'Fault' LED. |
Mounting type | Wall. Pole. Plate. Pipe. |
Features | Wire sensor included to control the desired temperature. |
Accessories | Manufacturer guidanceConsult manufacturer and insert requirements. |
Standby power | 0.93 W (maximum). |
TemperatureSensorType | NTC 15 kOhm at 25°C. Guidance for specification option: Cable specification is either 1 x 4 mm² or 2 x 2.5 mm², dependent on requirements. Consult manufacturer for details. |
Controller | 1 C. |
Protection class | Class II. |
Weight | 165 g. |
Sustainability data
Country of product manufacture | Denmark |
Recyclability | Recyclable at end of useful life |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Literature type

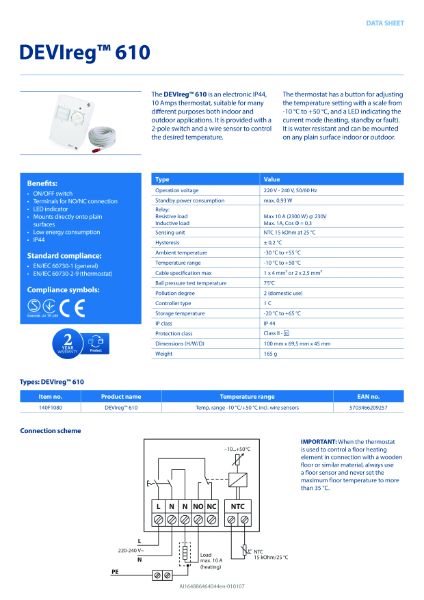

DEVIreg 610 data sheet

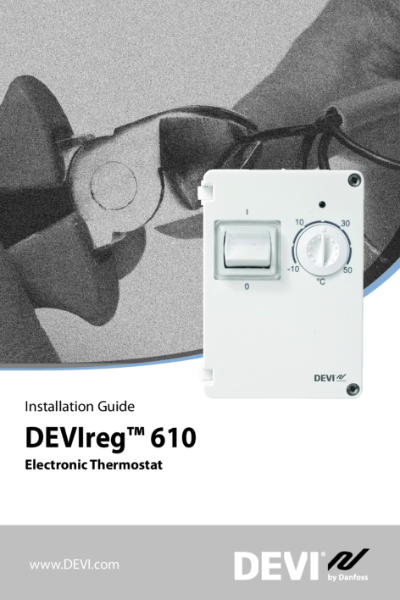

DEVIreg 610 operation guide
