Dflect 1000 Rubber Tile - Rubber Tile

Verified by manufacturer 1 month ago

Castle Composites Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

High quality recycled rubber granulate playground tile.

Jump to:
BOS
+44 (0) 1555 870 003 Website

Application

Suitable for installation onto almost any surface.

Description

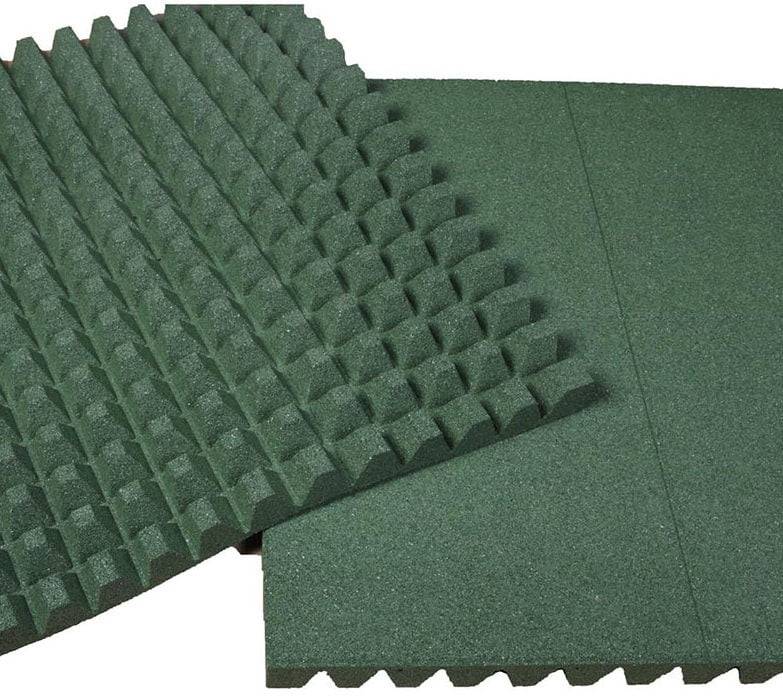

High quality recycled rubber granulate playground tile.

Supplied with interlocking pins for laying. When the tiles are laid in a brick bond formation with the interlocking pins, they form a large mat-type surface, requiring adhesive only on outside lip of the first and last row if no edge restraint exists.


Features and benefits:

  • Manufactured with channels on the underside to provide drainage and critical fall height test results (available on request).
  • Reduced labour and adhesive requirements.
  • Manufactured to cushion falls.
  • Slip resistant finish.
  • Tested in accordance with EN 1177.

Applications:

Suitable for installation onto almost any surface.

General information

Color

Black

Green

Grey

Red

Finish

Anti-slip

Material

Rubber

Shape

Square

Length

1000 mm

Width

1000 mm

Height

25 mm

Warranty description

Five year

Uniclass

Pr_35_57_71_36 Granular rubber tilesPrimary

CAWS

M50/120 Interlocking resilient floor tiling

M50/10 Resilient floor tiling

Product range

Rubber Tiles

Specification data - Granular rubber tiles

Standard

To BS EN 1177 and BS EN 1176.

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

To BS EN 7976 & EN1339 Annex 1, dry: 102 wet: 62.

Guidance for specification option:

Low potential for slip.

Recycled content

100%.

Size

1000 x 100 mm.

Thickness

25 mm.

30 mm.

40 mm.

45 mm.

50 mm.

65 mm.

Colour

Black.

Green.

Grey.

Red.

Material

Rubber

Sustainability data

Contains Red List materials

No

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Material

Rubber

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Certification

Literature

Dflect Rubber Tiles - Data

Dflect Rubber Tiles - Data

Dflect Rubber Tiles - Install Guide

Dflect Rubber Tiles - Install Guide

2435 PU Adhesive - Data

2435 PU Adhesive - Data

Dflect Brochure

Dflect Brochure
