Diffuse - Raised Access Floor System

Name: Diffuse - Raised Access Floor System
Brand: Parkside Architectural Tiles
SKU: aKHCLQWTBHwErZmhQhmJTe

Verified by manufacturer 3 days ago

A patented raised access floor system that combines full underfloor accessibility with efficient, screed-free underfloor heating.

Jump to:

01162 762532 Website

Application

Suitable for commercial, office and architectural spaces.

Description

Diffuse is a patented raised access floor system that integrates underfloor heating while maintaining full accessibility to the underfloor void. The system operates without the need for a cement screed, enabling efficient thermal regulation through a dry installation process. Designed to balance thermal performance with the functional requirements of a raised floor, Diffuse offers low thermal inertia, rapid heat response, and immediate usability after installation. Its construction allows for easy access, flexibility in building services, and consistent indoor comfort without compromising architectural design.

Features and benefits:

Dry installation system allows for rapid and clean installation without cement screed.

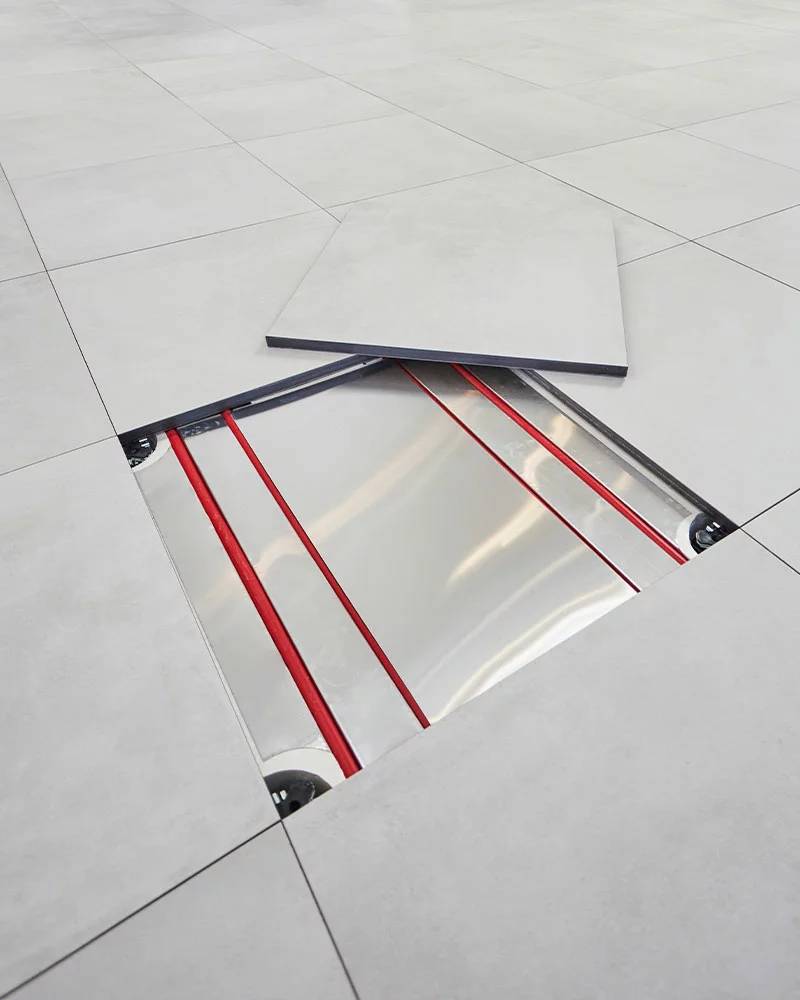

Fully accessible raised floor design enables each panel to be removed and repositioned independently.
Integrated underfloor heating eliminates the need for visible heating elements such as radiators or fan coils.
Absence of convective air movement helps maintain indoor air quality and reduces dust circulation.
High thermal efficiency provides fast response times and uniform heat distribution up to 2.5 m in height.
Low thermal inertia ensures quick heating and efficient temperature control.
Energy-efficient system delivers energy savings of at least 30%.

General information

Color	Other Manufacturer guidance Available in a wide range of colours and types of finish.
Finish	Galvanized
Material	Calcium sulphate Steel Aluminium Polystyrene
Shape	Square Rectangle
Length	600 mm 1200 mm
Width	600 mm

Uniclass	Ss_30_20_70_70 Raised access floor systemsPrimary Ss_60_40_92_15 Combined underfloor heating and cooling systems
CAWS	K41/130 Raised access floor K41/130 Proprietary raised access floor

Specification data - Raised access floor systems

Classification data
Subfloor preparation	- Manufacturer guidance Insert requirements or omit.
Support structure type	Access floor pedestals and stringers - MPL. Guidance for specification option: The structure with open cross-sectional stringers allows maximum stability of the floor even without gluing the columns to the supporting slab support. Access floor pedestals and stringers - MPM. Guidance for specification option: The substructure with medium resistance and open section stringers is suitable for rooms with medium/ high load requirements and traffic. Manufacturer guidance Height adjustment from 14 to 65 cm.
Pedestal fixings	Not required. Epoxy resin-based adhesives. Polyurethane (PUR) adhesives.
Raised access floor surface	Raised access floor panels, calcium sulphate core. Guidance for specification option: Core composed of a monolithic layer of calcium sulphate, anhydrite-reinforced with recycled cellulose fibers, reaction to fire in class A1. Calcium sulfate panels offer high-performance characteristics and are EPD certified making them also suitable for projects with high sustainability standards. Raised access floor panels, sintered material core. Guidance for specification option: Core made of inert and inorganic material, with very high density (2200 kg/m³). Resistant to temperature changes, non-absorbent and frost-resistant. Suitable for high humidity environments or outdoor spaces, in the version without edge trim.
Samples required	- Manufacturer guidance Insert requirements or omit.
System accessories	- Manufacturer guidance Consult manufacturer and insert requirements or omit.
Colour/ Finish	- Manufacturer guidance The top covering of the raised access floor panel is available in a wide range of materials and colours. Consult maufacturer and insert requirements.

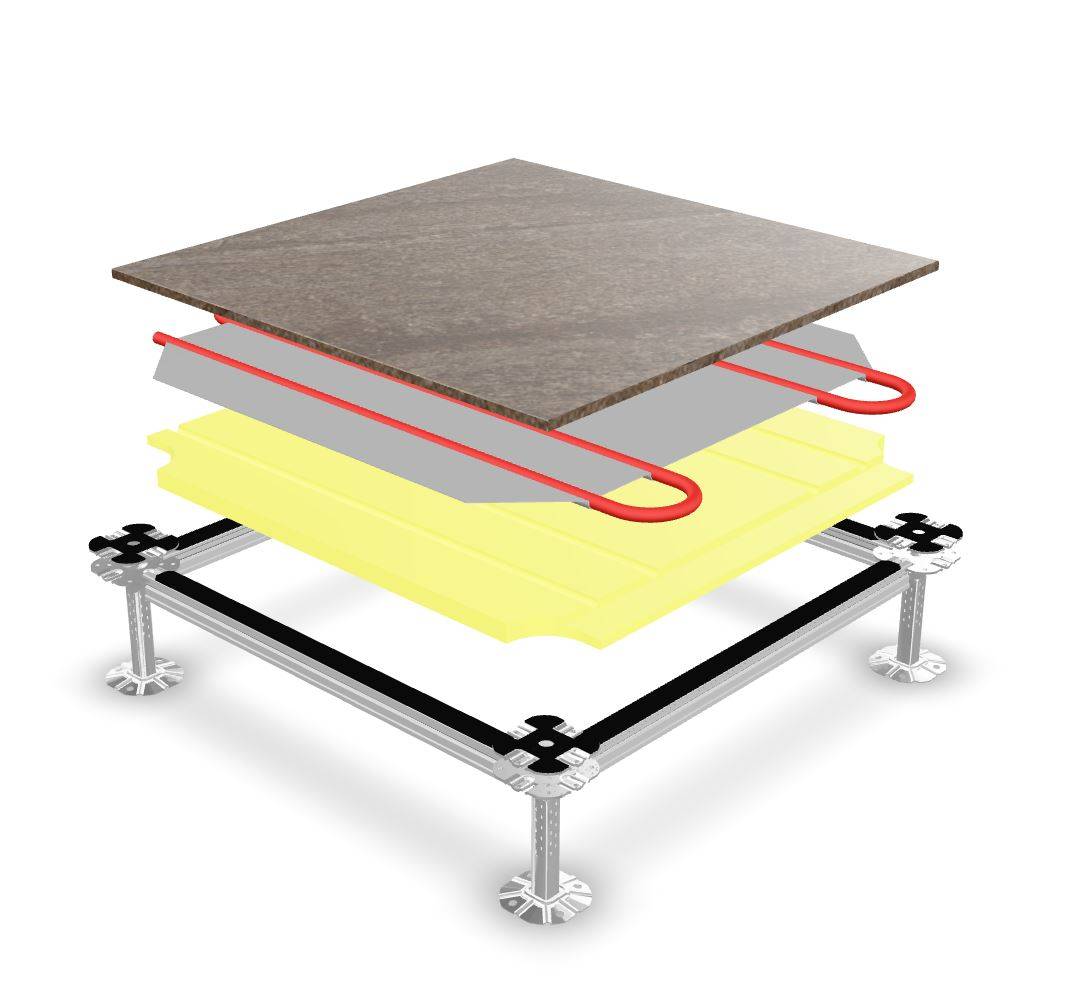

Underfloor heating	Heat source: Low-temperature water from thermal plant. Pipework: Multilayer 16 x 2 mm. Radiant panel: Extruded polystyrene 300 kPa, 40 mm thick, with heat diffusion element of pure 0.5 mm aluminum.
