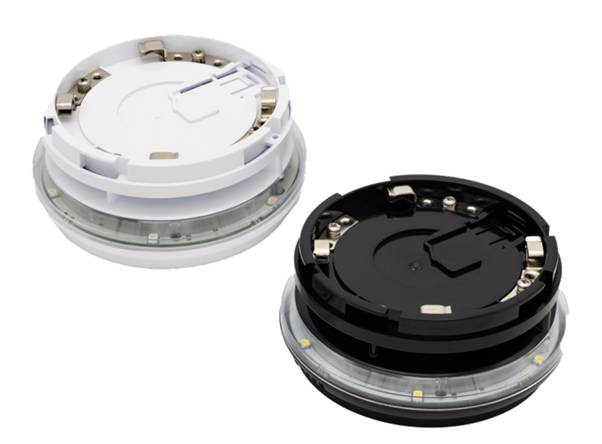

Discovery Base Sounder Visual Indicator (Red Flash) - Fire Alarm Sounder

Name: Discovery Base Sounder Visual Indicator (Red Flash) - Fire Alarm Sounder
Brand: Apollo Fire Detectors Ltd
SKU: 3oYaxpvzJaQKVrMG2CoerD

Verified by manufacturer 5 days ago

Discovery Base Sounder VID - Red Flash (black body)

Apollo Fire Detectors Ltd

Fire alarm base sounder for use with an Apollo addressable detector or as a standalone device.

Jump to:

+44 (0)23 9249 2412 Website

Application

Suitable for fire alarm systems.

Description

The Discovery Base Sounder Visual Indicator can be used with an Apollo addressable detector or as a stand-alone device with a base cap. The Discovery Base Sounder Visual Indicator includes features such as group, global and individual control, status reporting and selectable tone and volume settings, all configured through the fire control panel**.

Features and benefits:

Simple installation using an XPERT 8 base.
Adjustable tone and volume (15 tone pairs, 7 volume settings).
Built-in isolator (when used with XPERT 8 Base).
Acoustic self-test.
Set-up and testing of device at point of installation.
Independent control of sounder and visual indicator.

**Note: Features are panel dependent. Please consult your panel manufacturer to confirm feature availability.

General information

Color	White Black
Material	Polycarbonate Stainless steel
Shape	Circle
Length	110 mm
Width	110 mm
Height	46 mm
Warranty description	Ten year

Uniclass	Pr_75_80_30_30 Fire alarm soundersPrimary
CAWS	W90/337 Sounders

SKU Code	58006-351APO

Specification data - Fire alarm sounders

Classification data
Standard	To EN 54-3 and EN 54-17.
Sounder type	Electronic sounder with visual indicator.
Rated voltage	24 V d.c.
Sound patterns	15 evacuation tones.
Enclosure protection	To EN 54-3, Type A. Guidance for specification option: IP rating: IP21C rating approved as per EN 54-3. IP34. Guidance for specification option: Not EN 54-3 approved volume level. Manufacturer’s declared IP34 rating - below ceiling level - applies only when a Detector or Cap is fitted. The Grub screw must be engaged to ensure the IP ratings are achieved.
Sound pressure level (minimum)	95 dBA at 1 m (maximum).
Mounting	Surface.
Power supply	From loop.
Colour	Black.
Base	XPERT 8 base.
Cover cap	Not required. Base cap, part no. 45681-292 - white. Base cap, part no. 45681-293 - red. Base cap, part no. 45681-296 - black. Manufacturer guidance The Discovery Base Sounder can either be used with an Apollo addressable detector or as a stand-alone device with a base cap.
