DORMA-Glas TP/TA Easy Safe Door Rails from BM Architectural - Lower Edge Protection for Glass Doors
Verified by manufacturer today
Panels with double-action door rails combined with door rails for centre hung doors
Panels with double-action door rails combined with door rails for centre hung doors

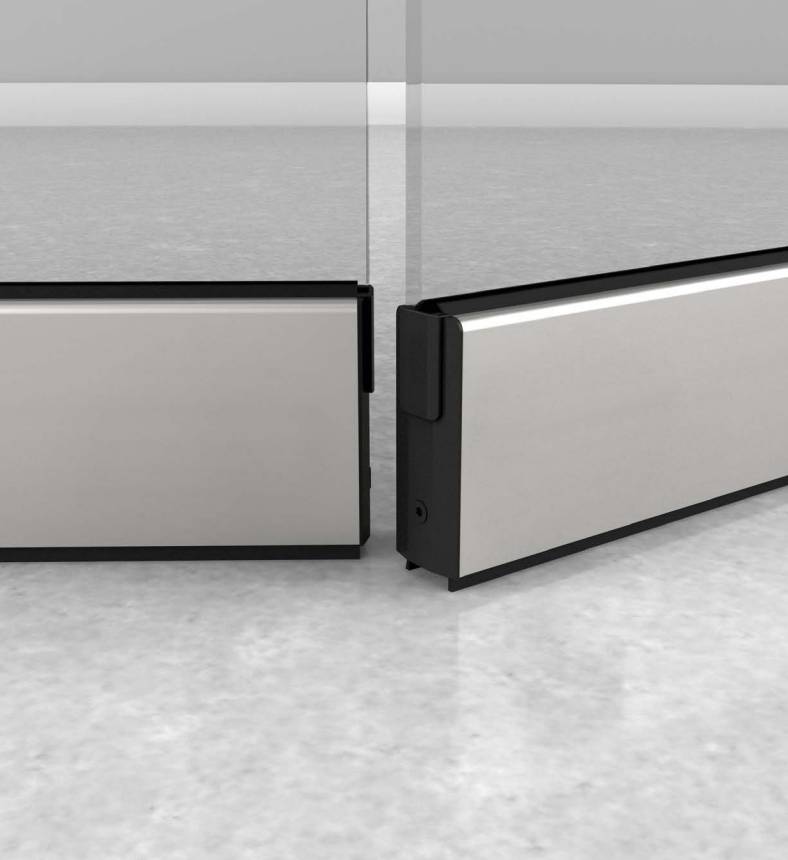

Lower edge protection for glass doors.
Application
One or two panel single and double action doors, side lights, toughened glass assemblies.
Description
Lower edge protection for glass doors.
These door rails ensure a high level of stability for high use, or particularly wide, doors when used simultaneously at the top and bottom edges of the door. At the bottom, they serve to protect against impacts, as an alternative to corner fittings.
Features and benefits:
- Stability and glass protection.
- Matched to corner fittings.
- Additional security through integrated locks.
- Suitable for glass 10–19 mm thick - toughened safety glass (TSG), semi-tempered glass (STG) or laminated safety glass (LSG).
- Maximum leaf weight: 200 kg.
General information
Color | Silver Other |
Finish | Anodized Stainless steel Satin |
Material | Aluminium Stainless steel |
Shape | Rectangle |
Length | 39.3 mm Guidance for specification option: Rail depth. |
Width | Bespoke |
Height | 105 mm Guidance for specification option: Rail height. |
Uniclass | |
CAWS | L20/45 Doors L20/460 Frameless glass doors |
Specification data - Frameless glass door leaves
Classification data | |
Format | Double-leaf, single-action. Double-leaf, double-action. Single-leaf, single-action. Single-leaf, double-action. |
Thickness | 10 mm. 10.8 mm. 12 mm. 12.8 mm. Guidance for specification option: Maximum for door rail designs with free glass edge. 13.5 mm. 15 mm. 17 mm. 19 mm. |
Door leaf size | Guidance for specification option: Insert exact details of required wing width(s), and of side rails where applicable. |
Leaf | |
Material | Toughened safety glass (TSG). Semi-tempered glass (STG). Laminated safety glass (LSG). Manufacturer guidanceLeaf supplied by others. |
Hardware | |
Door rails and patch fittings | |
Type | TP/TA EASY Safe door rails, standard. TP/TA EASY Safe door rails, clamp-free. TP/TA EASY Safe door rail and patch fittings UNIVERSAL. TP/TA EASY Safe door rail and patch fittings EP UNIVERSAL pinch. |
Material and finish | Anodized aluminium. Guidance for specification option: 7 kg/m. Satin stainless steel. Guidance for specification option: 8.5 kg/m. Powder-coated aluminium. Guidance for specification option: Consult manufacturer for options and insert colour requirements. Powder-coated stainless steel. Guidance for specification option: Consult manufacturer for options and insert colour requirements. |
Lock | |
Type | Not required. Centre and corner lock SG, to match door rail. Guidance for specification option: Toughened safety glass (TSG) only; 8/10 or 12 mm. Centre and corner lock SG, other. Guidance for specification option: Toughened safety glass (TSG) only; 8/10 or 12 mm. Consult manufacturer's literature for options and insert requirements. |
Position | As Type. |
Accessories | Side panel rail(s). Not required. Manufacturer guidanceOptional lever handles specified separately below. |
Lever handle | Required; to match door rails. Required; other material. Guidance for specification option: Consult manufacturer's literature for options and insert requirements. Not required. Manufacturer guidanceLarge selection of lever handles for glass doors, which are technically mature solutions for high design requirements in the building. The models are not only visually but also haptically very appealing. Made of high-quality materials. |
Gasket | To suit glass thickness above. |
Opening direction | Guidance for specification option: Insert details (DIN direction). |
Pivot point | Guidance for specification option: Insert details of pivot point or rebate depth where applicable. |
Sustainability data
Material | Aluminium Stainless steel |
