Double Fire Doors - Double Action | Hospital Doors - Timber Doorsets

Name: Double Fire Doors - Double Action | Hospital Doors - Timber Doorsets
Brand: Ahmarra Door Solutions Ltd
SKU: vnA79W99y6HvzXAfwBvnfx

Verified by manufacturer 15 days ago

FD30 Fire Doors | Double Doors – Double Action | Healthcare Range

Ahmarra Door Solutions Ltd

Third party certifications:

BM Trada
Certificate type
Carbon Footprint Standard
Certificate type
Fleet Operator Recognition Scheme
Certificate type
FSC
Certificate type
Made in Britain
Certificate type

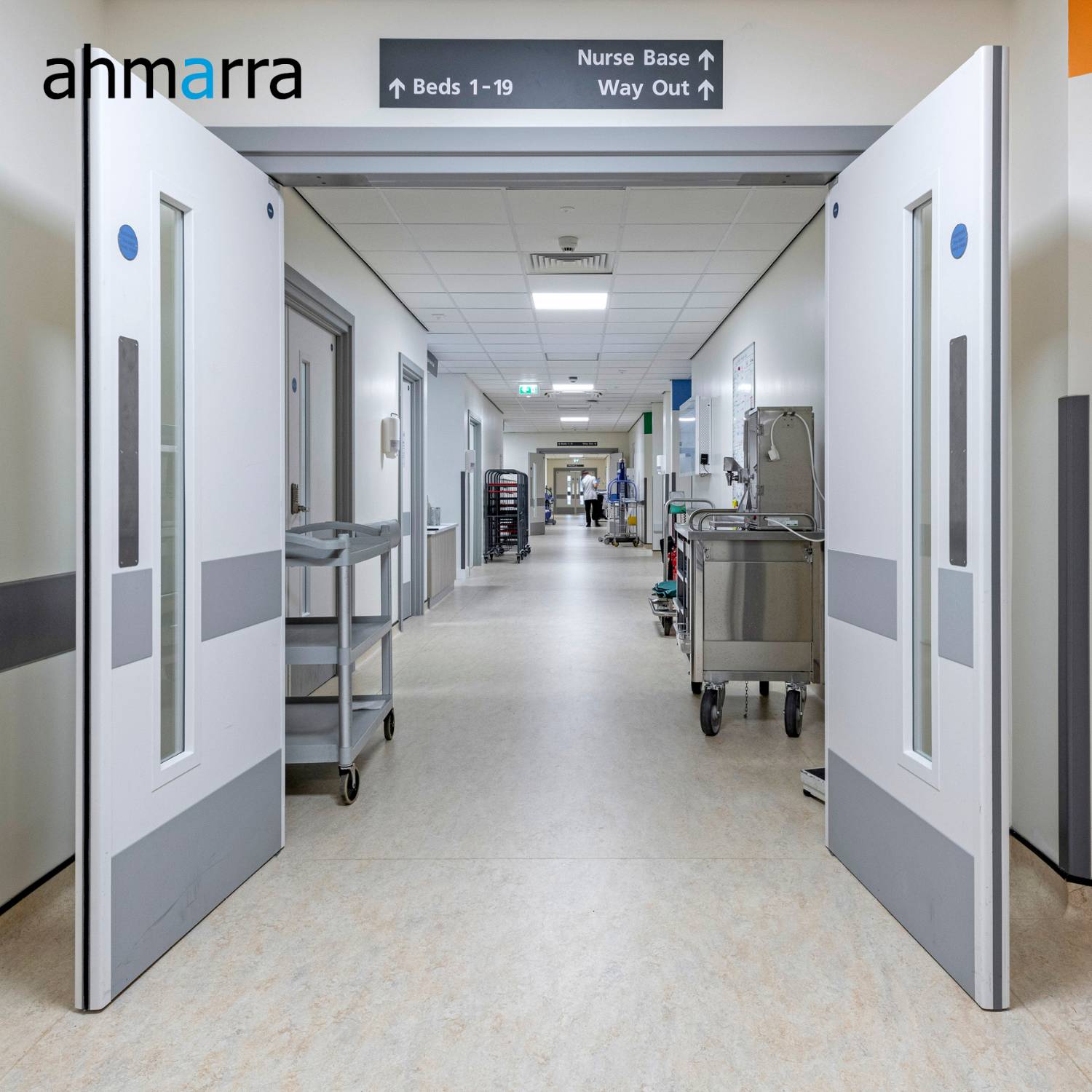

Internal Hospital Fire Doors - Double Action Double Doors. These Q-Mark certified timber fire doorsets are part of Ahmarra’s Healthcare Door Range.

Jump to:

02392 389 076 Website

Application

Ahmarra's Healthcare Door Range is a range of Q-Mark certified fire doors tailored to meet the specific needs of hospitals, health centres, medical research labs, mental health facilities and care homes.

Ahamarra can fully manage each project from site survey and design to manufacture and installation.

Engineered for longevity, these severe-duty doorsets are available in a range of configurations and have been specifically developed to suit the demands of busy healthcare environments.

These hygienic healthcare doors are suitable for hospital wards, operating theatres, laboratories, offices, kitchens, toilets, washrooms, corridors, consultation rooms, storage and riser cupboards etc.

Ahmarra’s dedicated specification team are always on hand to offer advice on fire door specification to architects, design managers, contractors, fire safety officers and hospital trusts.

Description

Ahmarra specialise in manufacturing hospital fire doors, as well as doors for other healthcare environments.

Healthcare environments have a unique set of fire door specification requirements, which often include enhanced fire & smoke ratings, sound reduction, infection control, increased durability, impact resistance, optimised accessibility, anti-ligature, access control, automation and wayfinding.

Features and benefits:

BM TRADA Q-Mark Fire Door Manufacture scheme certified.
NFR, FD30, FD30s, FD60 and FD60s fire ratings available.
Bespoke door designs - available with a wide range of PVC-u, high pressure laminate or wood veneer facings, as well as ready primed eco veneer for on-site painting.
Anti-bacterial door facings available (kills 99.9% of bacteria)
Made-to-measure - manufactured to suit the specified structural opening.
Manufactured from FSC®-certified (FSC C018847) and other controlled material that support responsible forestry.
Architectural ironmongery - fully compatible and factory-fitted as standard.
Finger protection is available and tested to BS 8613:2017 - Type A.
Various vision panel and Vistamatic privacy vision panel configurations available.
Glazed screens, internal windows and fanlights are also available.
Mechanical test to BS EN 1192 (classification to EN 947, EN 948, EN 949, EN 950): Severe Duty (class 4).
Cyclic tests to BS EN 1191 (classification to EN 12400): Severe Duty (class 8).
BM TRADA Q-Mark Fire Door Installation service by our experienced installers is available.
Replacement parts list available for facility management teams to maximise the doorset’s lifespan and retain certification.

Third party accreditation:

BM TRADA Q-Mark Fire Door Manufacture Scheme.
BS EN ISO 9001 Quality Management System certified.
BS EN ISO 14001 Environmental Management System certified.
BS EN ISO 14064 Carbon Footprint verified.
FSC® (Forest Stewardship Council®) certified.
Fleet Operator Recognition Scheme (FORS).
Guild of Architectural Ironmongers (GAI) full member.
Architectural and Specialist Door Manufacturers' Association (ASDMA) member.
Made in Britain member.

General information

Color	Beige Black Blue Brown Cream Green Grey Ivory Orange Pink Purple Red Turquoise White Yellow Other Show more
Finish	Textured Guidance for specification option: PVC (2mm Impact Resistant) PVC facings are available in a wide range of solid colours with a textured finish. Laminated Guidance for specification option: High Pressure Laminate High pressure laminates are available in a wide range of solid colours or wood-effects. Veneered Guidance for specification option: Wood Veneer Wood veneers are available in a wide range of wood species in either a crown cut or quarter cut. Primed Guidance for specification option: Pre-Primed Eco Paper Veneer A primed, eco-friendly white paper suitable for on-site painting.
Material	Timber Guidance for specification option: Timbercore™: Suitable for severe plus applications.
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Pr_30_59_24_97 Wood doorsetsPrimary
CAWS	L20/55 Doorsets L20/480 Doorsets L20/410 Wood doorsets

Specification data - Wood doorsets

Standard	Internal fire-rated doorset to BS 476-22 and third-party-certified.
Wood in joinery standard	To BS EN 942.
Configuration	Double-leaf, double-action.
Doorset size	Guidance for specification option: Bespoke manufactured to suit specified structural opening. Consult manufacturer and insert requirements - height x width (not including frame).
Performance	-
Fire resistance	-
Integrity	To BS 476-22, FD30. Guidance for specification option: 30 minutes fire resistance.
Acoustic performance	Unrated.
Strength and durability	Severe duty. Guidance for specification option: As standard.
Thermal	Guidance for specification option: Consult manufacturer for details and insert requirements.
Frame	-
Material	Timber.
Species	Engineered Hardwood (EHWD). Guidance for specification option: Primed for on-site painting. American White Oak. American Black Walnut. American Cherry. Ash. Maple. Steamed Beech.
Appearance class	J30. Guidance for specification option: Minimum. Manufacturer guidance Timber in accordance with BS EN 942.
Perimeter seals or inserts	- Manufacturer guidance Perimeter seals are factory-fitted to the door leaf(s)/frame. Perimeter seal types will be determined by the fire, smoke and acoustic performance specified.
Finish	Primed - white. Lacquered - clear. PVC wrapped.
Door leaf	-
Core	Severcore™. Guidance for specification option: As standard, a 54 mm core suitable for the majority of heavy and severe duty applications.
Facings	PVC. Guidance for specification option: The hygienic 2 mm impact resistant textured PVC-u facings feature an anti-bacterial additive that is integrated during the manufacturing process. This additive prevents the bacteria from getting the nutrients they need, causing 99.9% of bacteria to die within 24 hours - combating the spread of harmful bacteria such as C-difficile, MRSA, Salmonella, Listeria and E.coli. As well as door faces, door edges and glazing beads can also be clad in PVC impact resistant material. Ahmarra even have secret-fix PVC clad frames, stops, architrave and kick plates to complement the door which can be specified to match or contrast with the door leaf. High pressure laminate. Guidance for specification option: High pressure laminate is manufactured through fusing multiple layers of impregnated paper under high pressure and temperature to create a hard wearing, durable and hygienic facing material. Wood veneer. Guidance for specification option: Wood veneers, as opposed to solid wood, provide a uniform finish - free from knots, splits and staining. Wood veneers are available in either a crown cut book matched (cathedraling/ elipse/ oval grain) or quarter cut slip matched (straight grain) veneer. A protective UV lacquer coating is applied to all wood veneered doors to promote longevity. Primed. Guidance for specification option: Ready primed eco veneer is suitable for on-site painting of doors. The specially formulated eco-friendly paper veneer is applied to door blanks in the same way as a veneered layon. The pre-primed paper has been designed as a time saving initiative for paint grade doors and is suitable for under-skinning and concealing any lipping ensuring a smoother finish. Manufacturer guidance The specific PVC colour, laminate colour or wood veneer species can be determined during the post-order request for information stage, at the time of order placement. Please refer to the manufacturers 'Decorative Facings & Finishes Brochure' for the most popular finish options, which is featured in the ‘Literature’ section.
Species	Not required. Guidance for specification option: High pressure laminate and primed facings. American Black Walnut. Guidance for specification option: Wood veneer facings. American Cherry. Guidance for specification option: Wood veneer facings. American White Oak. Guidance for specification option: Wood veneer facings. Ash. Guidance for specification option: Wood veneer facings. European Oak. Guidance for specification option: Wood veneer facings. Maple. Guidance for specification option: Wood veneer facings. Sapele. Guidance for specification option: Wood veneer facings. Steamed Beech. Guidance for specification option: Wood veneer facings. Other. Guidance for specification option: Consult manufacturer and insert requirements.
Cut	Not required. Guidance for specification option: High pressure laminate and primed facings. Crown cut veneer. Guidance for specification option: Wood veneer facings. Quarter cut veneer. Guidance for specification option: Wood veneer facings.
Lippings	Exposed lippings to all edges. Semi-concealed to all edges. Replaceable PVC edge protection on both vertical edges. Manufacturer guidance 8 mm hardwood lippings are applied to all four edges of the door as standard.
Perimeter seals	- Manufacturer guidance Perimeter seals are factory-fitted to the door leaf(s)/frame. Perimeter seal types will be determined by the fire and smoke performance specified.
Glazing	-
Type	Guidance for specification option: Consult manufacturer for details and insert requirements or omit.
Manifestation	Guidance for specification option: Consult manufacturer for details and insert requirements or omit.
Beading	-
Type	Not required. Guidance for specification option: No vision panel. Hardwood bolection / cloak bead. Guidance for specification option: Suitable for PVC, laminate, wood veneer and primed doorsets. Hardwood flush / quirk bead. Guidance for specification option: Suitable for veneer and primed doorsets. Hardwood flush / quirk bead is not recommended for laminate faced doors. PVC wrapped. Guidance for specification option: Suitable for PVC and laminate doorsets. Stainless steel clad. Guidance for specification option: Suitable for PVC, laminate, wood veneer and primed doorsets.
Fixing	Factory fitted.
Hardware	All architectural ironmongery included - as part of a complete doorset. Guidance for specification option: Door manufacturer supplies and factory fits all ironmongery as part of a Q-Mark silver plugged doorset. Mortice only. Guidance for specification option: Door manufacturer factory machines for locks and flush bolts.
Accessories	Not required. Glazed side screens. Elevated side screens. Fanlights. Manufacturer guidance Consult manufacturer for details and insert requirements.

Lippings	American White Oak. American Black Walnut. American Cherry. Ash. Maple. Steamed Beech. Show more Manufacturer guidance Lippings species.
Vision panels	Not required. VP01 - single narrow vision panel 200 x 1400 mm. VP03 - narrow vision panels with middle rail 200 x 830 (top) x 420 mm (bottom). VISTA01- vistamatic pivacy vision panel - rectangle shaped 258 x 800 mm. VISTA02 - vistamatic pivacy vision panel - square shaped 404 x 404 mm. Bespoke size. Show more Manufacturer guidance Ahmarra's standard VP01, VP03, VISTA01 and VISTA02 vision panels are BS 8300 compliant.
Door frame	Lining double action (LDA). Guidance for specification option: Double action frame design for double doors.
Architraves	44 x 18 mm. 69 x 18 mm. Bespoke. Guidance for specification option: Consult manufacturer and insert requirements.
Anti-finger trap Option	Not required. Integral finger protection - aluminium (Safehinge Alumax). Manufacturer guidance Finger protection.
Pivot	Not required. Floor spring (70 mm floor screed required). Transom closer (70 mm frame head required).

Sustainability data

Country of product manufacture	United Kingdom
Material	Timber Guidance for specification option: Timbercore™: Suitable for severe plus applications.
Manufacturing plant location	Harts Farm Way, Havant PO9 1FA, UK
