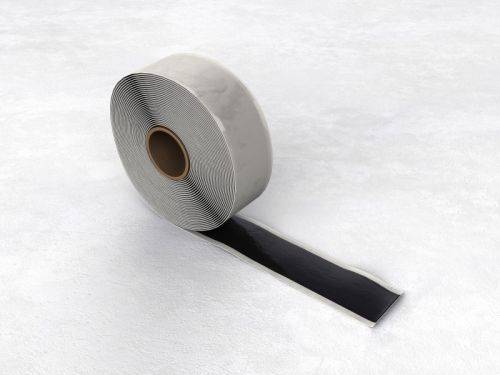

Double Sided Jointing Tape
Verified by manufacturer 2 months ago
Membrane sealing tape.
Application
Typical applications of use include the jointing of construction membranes including damp proof, radon and gas resistant sheet membranes for combined ground gas and damp proofing applications.
Description
A high performance polyisobutylene (PIB) based sealing tape with enhanced adhesive characteristics for more demanding applications, where there are requirements for a high degree of bonding.
Features and benefits:
- Solvent free formulation.
- Simple to install, without the requirement for any specialist equipment.
- Adhesion on both faces to most building materials.
General information
Color | Blue |
Material | Polyisobutylene (PIB) Guidance for specification option: PIB. |
Length | 10000 mm Manufacturer guidanceRoll length. |
Width | 50 mm |
Height | 1.5 mm Manufacturer guidanceThickness. |
Warranty description | Other |
Uniclass | |
CAWS | D21/350 Gas-retardant membrane D21/38 Gas-retardant membranes F30/360 Gas-resistant damp-proof courses/ cavity trays F30/54 Gas-resistant dpcs/ cavity trays J40/140 Loose-laid plastics or rubber sheet gas-retardant membranes J40/35 Loose-laid plastics or rubber gas-retardant membranes |
Specification data - Butyl rubber adhesive tapes
Classification data | |
Bond | Double-sided. |
Size | 1.5 x 50 x 10,000 mm. Guidance for specification option: Thickness x width x roll length. |
Colour | Blue. |
Service temperature | -40° to +90°C. |
Joint movement | <15%. |
Dynamic tensile tension | 20 N/cm³. |
Dynamic shear | 22 N/cm³. |
Moisture vapour transmission rate | To BS 15106-3, 0.010 g/m²/day/mm (25°C, 75% RH). |
Material: | Polyisobutylene (PIB). |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyisobutylene (PIB) Guidance for specification option: PIB. |
Literature
Cordek VOC & Ground Gas Brochure
