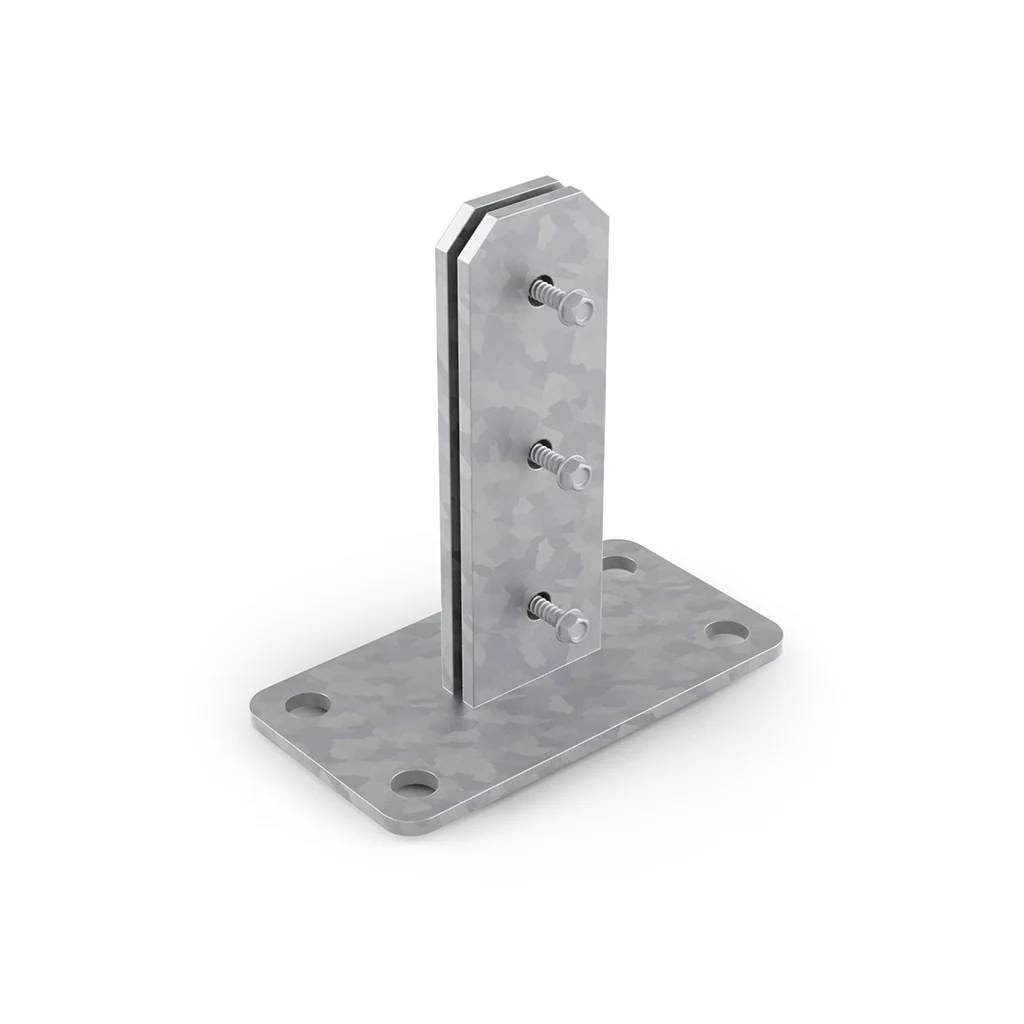

DuraPost® Bolt-Down - Fence Post Base Plate
Verified by manufacturer 1 day ago
Classic Post Bolt Down - 8061501
Classic Post Bolt Down - 8061501
Hot dip galvanized steel post supports for fixing DuraPost® to solid surfaces such as masonry or concrete, welded for strength.
Application
Suitable for fixing DuraPost® to solid surfaces such as masonry or concrete (not tarmac). Commonly used for fence heights up to 1800 mm, in compounds for additional strength on closer corners, on top of strong brick walls, or on raised deck/ hard standing areas.
Description
Constructed from S275 grade hot rolled steel, the DuraPost® Bolt-down post supports enable the fixing of DuraPost® to solid surfaces, suitable for fixing into masonry or concrete surfaces (not tarmac).
Features and benefits:
- Hot dip galvanized to standard BS EN ISO 1461: 2009.
- Welded top and bottom for greater strength and support.
- Suitable for fence heights up to 1800 mm or in compounds where closer corners provide additional strength for taller posts.
- Can be used on top of brick walls if brickwork is strong and in good condition, or on raised deck/ hard standing areas.
- Not suitable for posts that will have a gate hung from them or as a gate slam (specifically product code 8070001).
General information
Color | Grey |
Finish | Galvanized |
Material | Steel |
Shape | Rectangle Square |
Length | 125 mm 150 mm |
Width | 80 mm 125 mm |
Height | 100 mm 150 mm |
Uniclass | |
CAWS | Q40/430 Proprietary fencing Q40/30 Proprietary fencing Q40/380 Plastics and composite fencing |
SKU Code | 8061501 |
Specification data - Carbon steel post base plates
Classification data | |
Material | Carbon steel. Guidance for specification option: S275 Grade. |
Finish | Galvanized. |
Shoe dimensions | 150 x 80 mm. |
Post fixing | Through-fix. Guidance for specification option: Three 25 mm 5.5 SiteMate hex head self-drilling screws. |
Height | 150 mm. |
Sustainability data
Contains Red List materials | No |
Material | Steel |
Literature
DuraPost® Bolt-Down
