E37 Elite SR1 / A1 - Aluminium Security Shutter
Verified by manufacturer 6 months ago

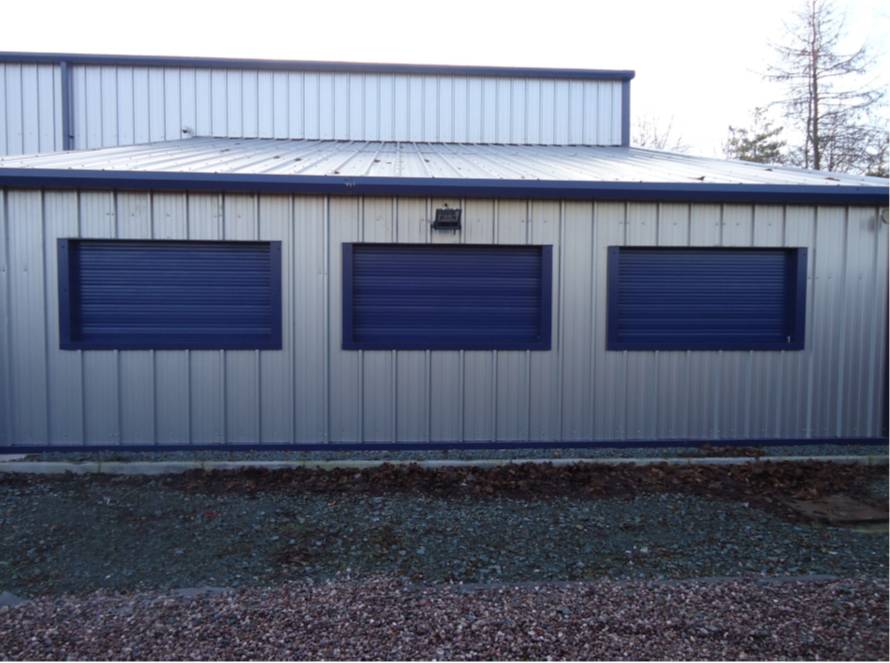

LPCB SR1/ A1 insurance approved extruded aluminium security roller shutter with 37.5 mm high slats.
Application
- External and internal window apertures.
- Domestic and commercial sites with high security requirements.
- Must only be fixed to approved substrates: brick, block, aluminium box section, or steel box section.
Description
Double-skinned extruded aluminium security roller shutter with 37.5 mm high slats. It has been tested by the Loss Prevention Certification Board (LPCB) and awarded insurance-approved 'Secured by Design' status. It is tested to LPS 1175 SR1/ A1 and can be mounted internally, externally or reveal fixed. The shutter can span up to 3 m in width and an area of up to 8.5 m².
Features and benefits:
- Guide channel depth: 60 mm.
General information
Color | White Grey Black Other Manufacturer guidanceOption to powder coat any RAL/ BS colour (surcharge applies). |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Two year |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Specification data - Roller shutters
Opening sizes | 3000 x 3000 mm.Guidance for specification option: Available up to 3000 x 3000 mm (w x h). Up to 9 m². Insert requirements or refer to a drawing. Manufacturer guidanceEnclosure size (internal face fix): Dependent on height.
|
Arrangement | Vertical, external face fix.Vertical, internal face fix.Vertical, reveal fix. |
Shutter curtain | |
Lath material | 9.5 mm thick double-skinned extruded aluminium. 37.5 mm in height. Bottom slat: Extruded aluminium with rubber weather seal. |
Profile | Curved.Manufacturer guidance37 mm. |
Finish and colour | White.Guidance for specification option: Standard colour. Anthracite.Guidance for specification option: Standard colour. Black.Guidance for specification option: Standard colour. BS.Guidance for specification option: Insert colour requirement. RAL.Guidance for specification option: Insert colour requirement. |
Frame and guides | |
Material | Enclosure: Roll-formed aluminium enclosure with pressure-moulded aluminium end plates. Guide channels: Extruded aluminium with brush inserts, depth of 60 mm. |
Finish | Powder-coated. |
Colour | Brown.Guidance for specification option: Standard colour. White.Guidance for specification option: Standard colour. BS.Guidance for specification option: Insert colour requirement. RAL.Guidance for specification option: Insert colour requirement. |
Operation | |
Mode | Somfy tubular motor with internal rocker or external key switch.Guidance for specification option: Safety brake as appropriate to comply with legislation. |
Control | Manufacturer guidanceNumerous control option variants such as rocker switch, key switch, remote and group or mobile phone activation are available. Consult manufacturer and insert requirements. |
Accessories | None.Crank handle.Manual override facility. |
Weight | 7.5 kg/m². |
Sustainability data
Country of product manufacture | United Kingdom |
Literature

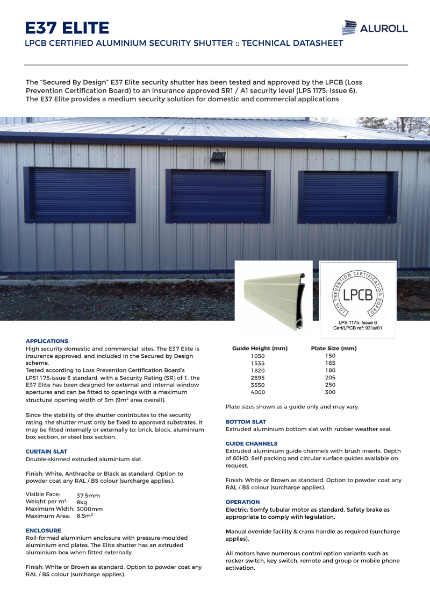

Aluroll E37 Elite Datasheet
