Application

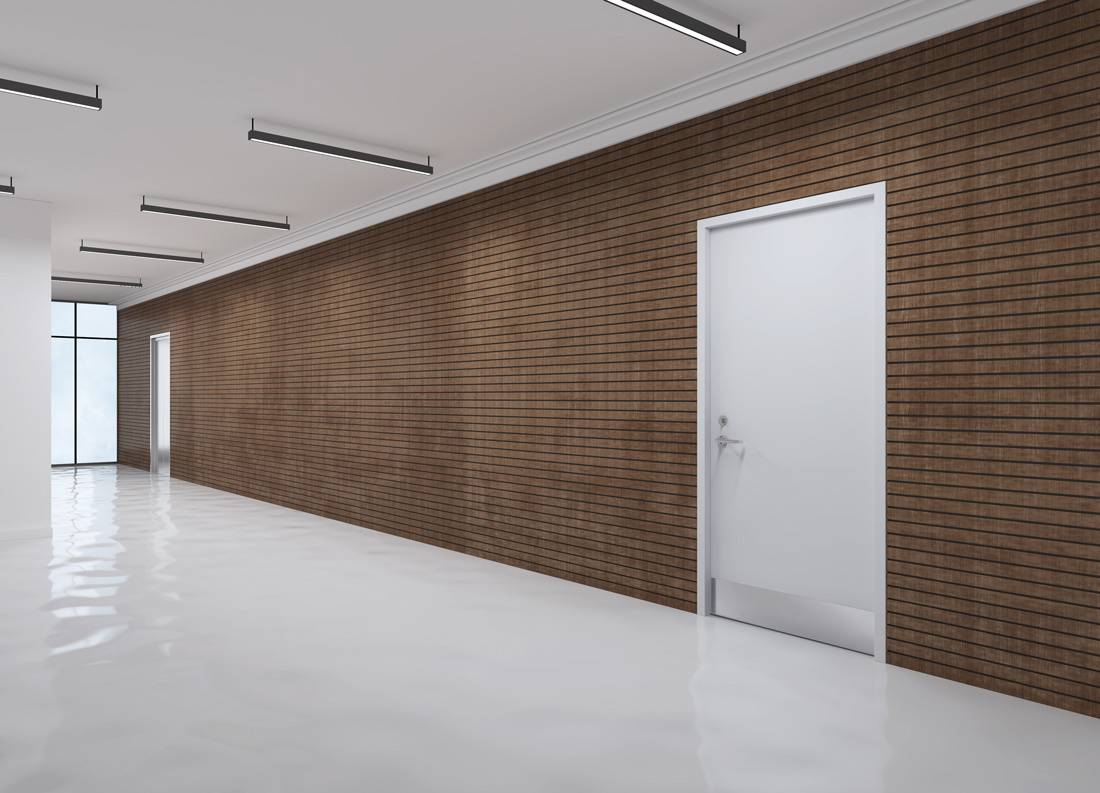

Suitable for interior applications where fire rating is not required.

Description

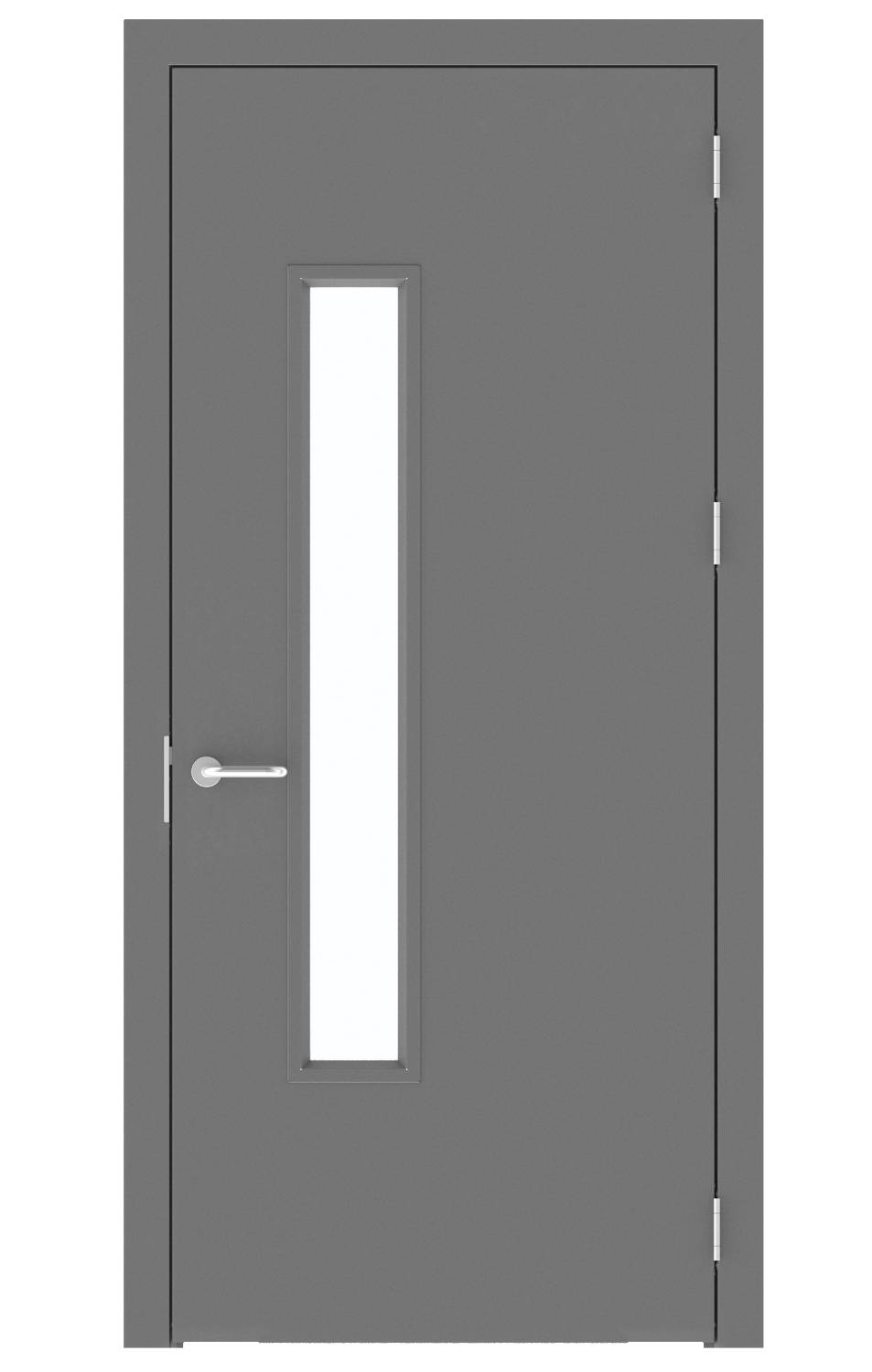

General-purpose metal personnel doors offer high-quality, durable and cost-effective solutions for a range of applications where fire rating is not required.


Available in the full RAL colour range and finished with polyester powder-coating (PPC).

General information

Color

Other

Guidance for specification option:

Available in the full RAL colour range.

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Carbon steel doorsets

Configuration

Single leaf, left hand hung.

Single leaf, right hand hung.

Doorset size

Guidance for specification option:

  • Refer to data sheet for sizes.
  • Insert requirements or refer to a schedule.

Performance

-

Smoke leakage

To EN 1634-3:2004, Sa.

Acoustic performance

To BS EN ISO 10140-2:2010, sound reduction index up to Rw 35 dB.

Frame

-

Material

1.2 mm galvanized steel.

Threshold

EBD standard threshold.

Drop seal.

Aluminum threshold.

Without threshold.

Raindrip threshold.

Finish

-

Coating

Powder-coated.

Texture

30% gloss (matt).

Colour

RAL colour range.

Guidance for specification option:

Insert requirements.

Door leaf

-

Thickness

44 mm.

Core

Dufaylite corrugated cardboard.

Material

1.2 mm galvanized steel.

Glazing

-

Type

Not required.

6 mm polycarbonate clear.

Finish

-

Coating

Powder-coated.

Texture

30% gloss (matt).

External colour

RAL colour range.

Guidance for specification option:

Insert requirements.

Internal colour

RAL colour range.

Guidance for specification option:

Insert requirements.

Film thickness (minimum)

40 microns.

Door accessories

Not required.

Kickplates - stainless steel brush finish.

Guidance for specification option:

Standard height 200 mm (up to 1250 mm from FFL, other heights available to order).

Kickplates - aluminium chequer plate.

Guidance for specification option:

Standard height 1250 mm from FFL.

Door frame profile

Fixed rebate frame.

Guidance for specification option:

Frame width: 96 mm.

Applications:

  • Blockwork and masonry walls.
  • Reinforced concrete walls.

Architrave frame.

Guidance for specification option:

Frame width: Wall thickness + 30 mm.

Applications:

  • Plasterboard steel stud partitions.
  • White wall panel sandwich. Please contact manufacturer to verify approved systems.

Clamp frame.

Guidance for specification option:

Frame width: Wall thickness + 7 mm.

Applications:

  • White wall panel sandwich. Please contact manufacturer to verify approved systems.

Vision panel

Not required.

Rectangular unit 152 x 711 mm.

Rectangular unit 152 x 1340 mm.

Rectangular units 152 x 711 mm + 152 x 475 mm.

Rectangular unit 203 x 305 mm.

Show more

Louvres

Not required.

AFDL.44 Anemostat metal louvre - double 457 x 457 mm.

AFDL.44 Anemostat metal louvre - lower 457 x 457 mm.

AFDL.44 Anemostat metal louvre - upper 457 x 457 mm.

AFDL.44 Anemostat metal louvre - large 457 x 1546 mm.

Meeting stiles

Single astragal.

Plain.

Hinges

Grade 14 concealed bearing hinge - EN 1935:2002, CE marked.

Guidance for specification option:

Satin stainless steel finish.

Door closer

EN 1154, CE or UKCA marked.

Guidance for specification option:

Cam Motion or Rack and Pinion.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

Platform Compatible Version
Revit
 -

1

Literature

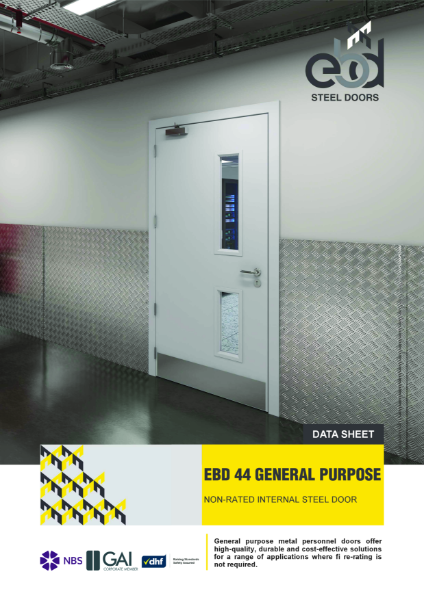

DATA SHEET - EBD - ZZ - XX - SP - Y - 1007_EBD 44 GENERAL PURPOSE

DATA SHEET - EBD - ZZ - XX - SP - Y - 1007_EBD 44 GENERAL PURPOSE
