ECLISSE 40 Hinged Aluminium Framed Glass - Door
Verified by manufacturer 7 days ago
Inset/ flush contemporary aluminium framed, glass insert door.
Application
Suitable for use internally.
Description

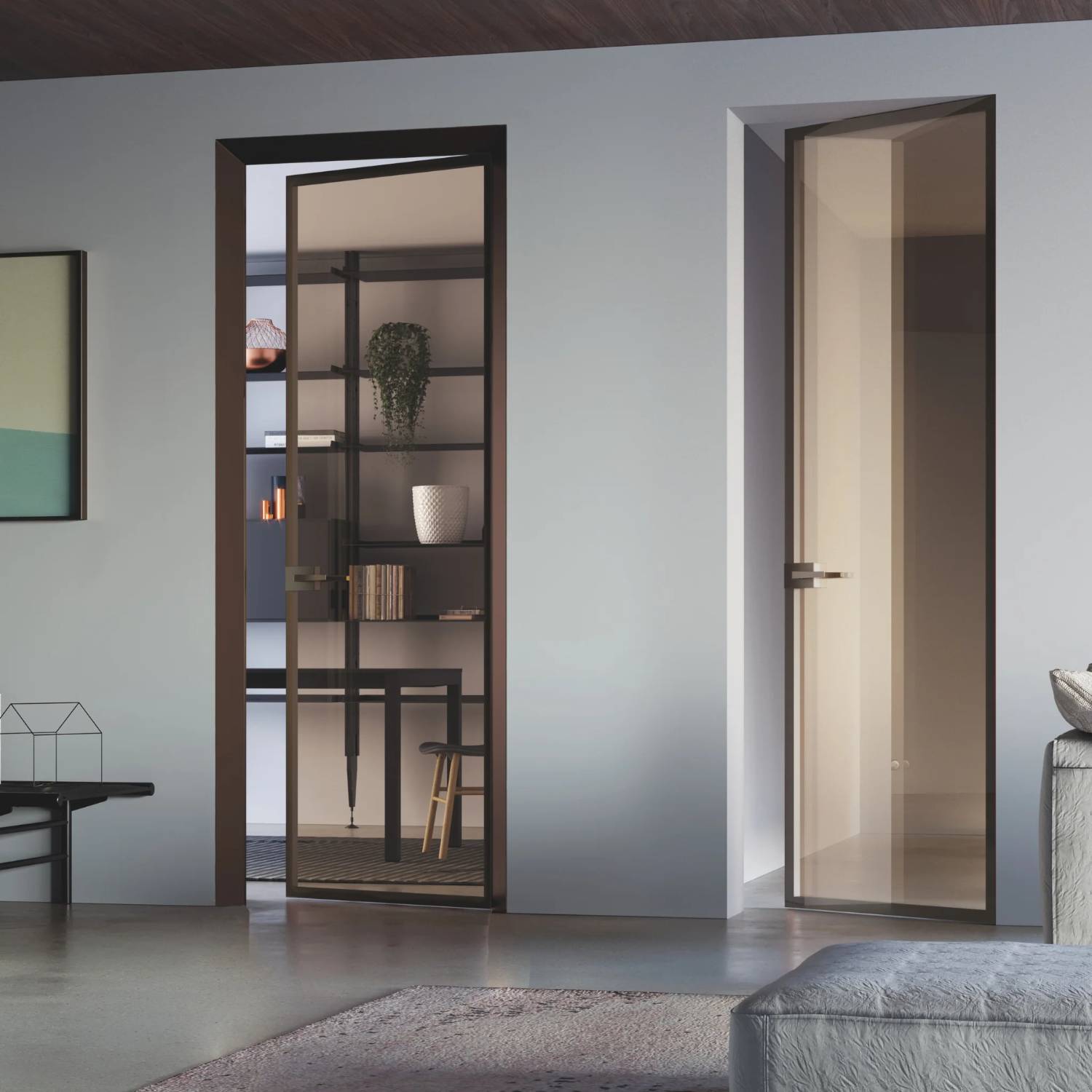

An alternative to the traditional flush door, the ECLISSE 40° Hinged Door features a distinctive chamfered edge that creates a striking feature for a contemporary, design-led finish and a flush door on the other. Engineered with clean lines and premium materials, it offers a seamless, modern look.
Features and benefits:
- Chamfered splayed door on one side and flush door on the other.
- 40° chamfered splayed frame.
- Minimalist design.

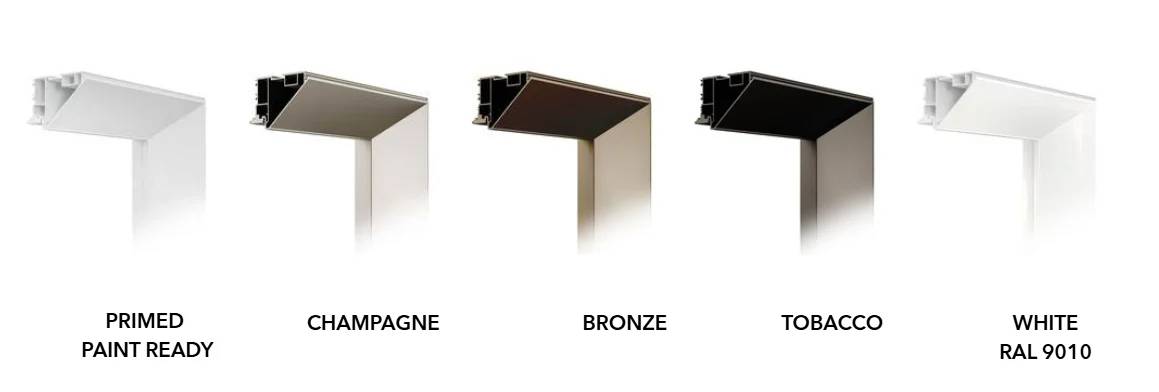

- Primed, champagne, bronze, tobacco, and white RAL 9010 frame finishes.
- Glass leaves in a range of finishes.
- Range of handles and locks.
General information
Color | Brown Beige White Bronze Clear |
Finish | Primed Painted Lacquered |
Material | Glass Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | 100 mm Guidance for specification option: Frame width. 125 mm Guidance for specification option: Frame width. 150 mm Guidance for specification option: Frame width. |
Height | Bespoke |
Warranty description | 12 year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Aluminium doorsets
Classification data | |
Configuration | Single-leaf, push left. Single-leaf, push right. Single-leaf, pull left. Single-leaf, pull right. |
Doorset size | Guidance for specification option: Consult manufacturer and insert requirements. |
Frame | |
Material | Aluminium. |
Finish | |
Colour | Primer-coated. RAL 910 white. Champagne. Bronze. Tobacco. |
Frame accessories | With header. Without header. |
Door leaf | |
Thickness | 44 mm. |
Panel details | Aluminium-framed glass pane. |
Material | Glass. |
Glazing | |
Type | Double-glazed. |
Finish | |
External colour | Bronze. Stain bronze. Reflex bronze. Satin extra clear. Smoked. Satin smoked. Reflex smoked. Mirror. |
Internal colour | As external. |
Door accessories | Three hinges. Guidance for specification option: For door panels up to 50 kg. Four hinges. Guidance for specification option: For door panels up to 65 kg. |
Hardware | Zante handle, bronze. Zante handle, tobacco. Zante handle, white. Zante handle, champagne. Zante handle with lock and thumb turn, champagne. Zante handle with lock and thumb turn, bronze. Zante handle with lock and thumb turn, tobacco. Zante handle with lock and thumb turn, white. 40+uno handle, bronze. 40+uno handle, tobacco. 40+uno handle, white. 40+uno handle, A. 40+uno handle with lock and thumb turn, champagne. 40+uno handle with lock and thumb turn, bronze. 40+uno handle with lock and thumb turn, tobacco. 40+uno handle with lock and thumb turn, white. |
Frame width | 100 mm frame. 125 mm frame. 150 mm frame. |
Sustainability data
Material | Glass Aluminium |
Literature
Literature type

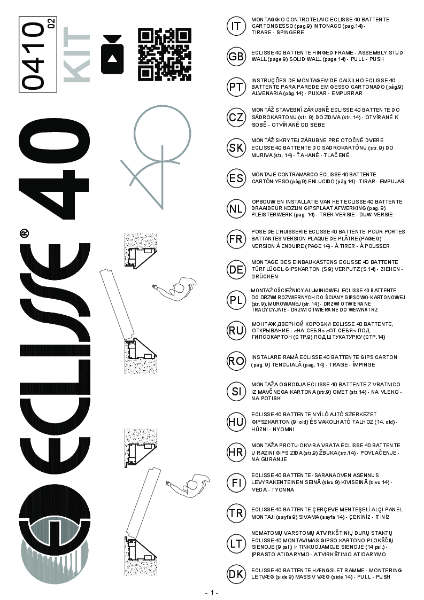

603041002_40 degree single frame installation instructions

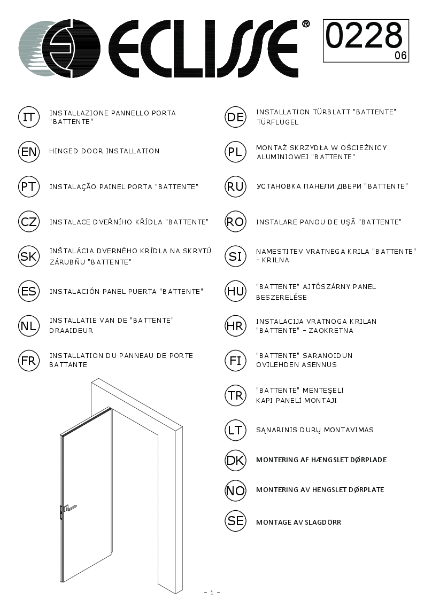

603022806 40 degree door installation instruction

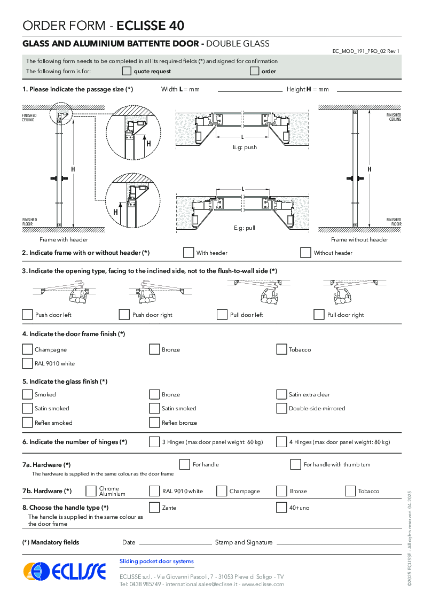

ECL_EN_Order_Form_ECLISSE 40_glass-alluminum_double-glass

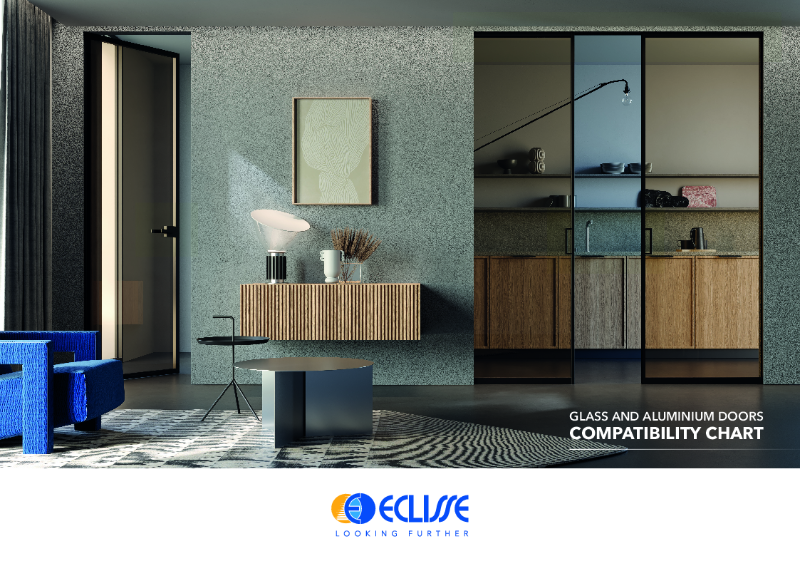

eclisse-glass-aluminium-doors-compatibility-chart-24

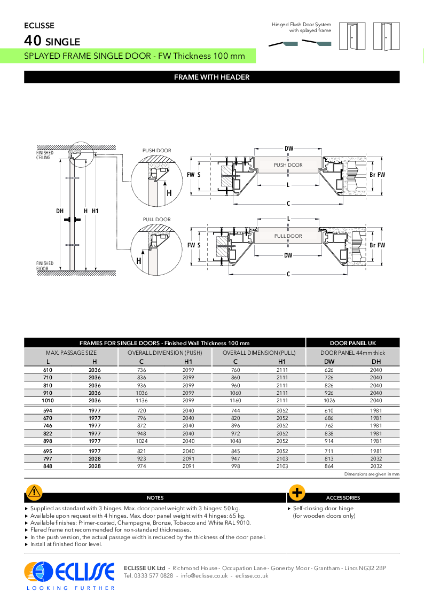

ECL-40-Single-UK
