EcoActive 100 HRU

GDL Air Systems Ltd Variant:

Heat recovery systems.

Jump to:
+44 (0)1457 861538 Website

Application

Suitable for education and residential applications.

Description

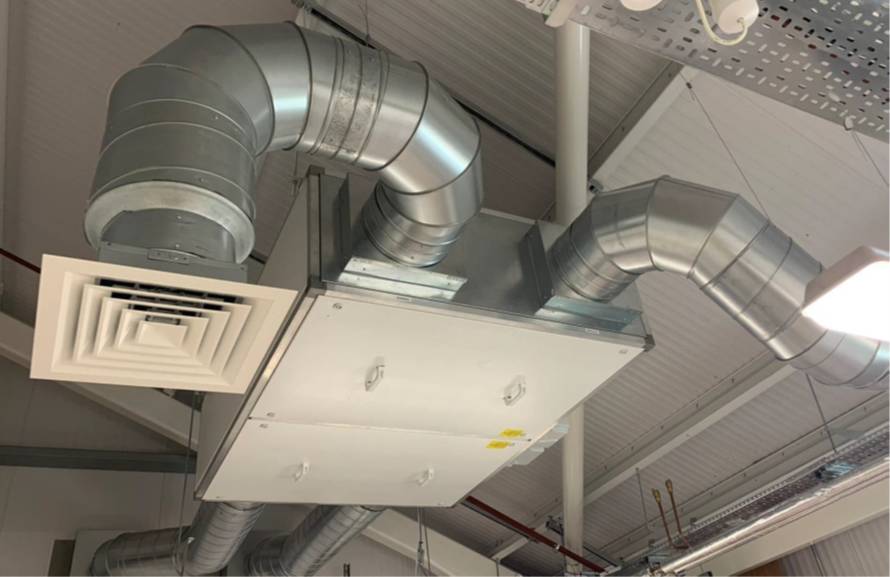

Situated within a high-level void or exposed, giving winter and summer ventilation and also summer night time purging to each room. These units can also be externally roof mounted.


Each unit contains a heat exchanger with a minimum efficiency of 74%, giving a minimum supply air temperature of 17°C. Units also have low energy EC supply and extract fans handling volumes up to 1.0 m3/s.


Each unit is controlled via a CO2/ temperature room sensor and intelligent controller to give the correct ventilation at all times.


Features and benefits:

  • Ensures air quality and temperature remain within Department of Education guidelines.
  • Easy to use room controllers.
  • Summer boost and night purge mode.
  • Low maintenance with a range of colours available.
  • Low noise - Independently tested to BS EN ISO 3744:2010 meeting BB93 criteria and verified for use within educational establishments.
  • ErP 2018 compliant.

General information

Color

Silver

Other

Finish

Galvanized

Powder-coated

Material

Steel

Aluminium

Shape

Rectangle

Length

1450 mm

1800 mm

2200 mm

2450 mm

Width

1000 mm

1200 mm

1350 mm

1550 mm

1850 mm

Height

330 mm

450 mm

520 mm

560 mm

610 mm

Show more

Uniclass

Pr_60_65_03_87 Supply and return air-handling unitsPrimary

Product range

Eco Active MVHR Unit / EcoActive 600 HRU
Eco Active MVHR Unit / EcoActive 200 HRU
Eco Active MVHR Unit / EcoActive 900 HRU
Eco Active MVHR Unit / EcoActive 400 HRU
Eco Active MVHR Unit / EcoActive 300 HRU
Eco Active MVHR Unit / EcoActive 800 HRU
Eco Active MVHR Unit / EcoActive 700 HRU
Eco Active MVHR Unit / EcoActive 1000 HRU
Eco Active MVHR Unit / EcoActive 100 HRU
Eco Active MVHR Unit / EcoActive 500 HRU

Specification data - Supply and return air-handling units

Standard

To BS EN 13053.

Duty

-

Air volume

-

Supply

0.1 m³/s.

Extract

0.1 m³/s.

External resistance

250 Pa.

Sound power level

61 dB.

Guidance for specification option:

Consult manufacturer for details.

Environment

External.

Internal.

Casing construction

-

Material

Galvanized sheet steel.

Finish

Self-finish.

Polyester powder-coated.

Guidance for specification option:

Available in standard colours from BS 4800 or RAL ranges. Insert requirements.

Method of support

Suspended with M10 threaded rod either fixed through the pre-drilled holes within the corner sections or welded lugs.

Components

-

Dampers

-

Purpose

Bypass damper.

Guidance for specification option:

  • Material/grade: Blades: 1.2 mm galvanized mild steel; Casing: 1.2 mm galvanized mild steel.
  • Damper type: D7330+2M.
  • Frame type: 30 mm flanges.
  • Case depth: 65 mm.
  • Connection type: Flanged.
  • Motor type: Siemens GDB161.1E 24v fully modulating actuator 0–10 V.
  • Bearings: Punch formed casing bushes.
  • Seals: Fully sealed case and blades.

Filters

G4 panel air filters.

Heaters

-

Pre-heaters

Guidance for specification option:

Heating coil options are available, consult manufacturer for details.

Re-heaters

Guidance for specification option:

Heating coil options are available, consult manufacturer for details.

Cooling coils

Guidance for specification option:

Cooling coil options are available, consult manufacturer for details.

Heat recovery

-

Heat recovery equipment

Plate heat exchanger - ERI Corporation PCF-I-3-95-280-T-BR-110-B-SM-HO.

Supply fan

-

Fan type

Centrifugal fans - GR20V-4IP.Z8.VR.

Guidance for specification option:

  • Fan SFP: 0.473.
  • Start power: 170 W; run power: 44 W.
  • Start amps: 1.7 A; run amps: 0.43 A.
  • Power supply: 230 V.

Extract fan

-

Fan type

Centrifugal fans - GR20V-4IP.Z8.VR.

Guidance for specification option:

  • Fan SFP: 0.473.
  • Start power: 170 W.
  • Run power: 44 W.
  • Start amps: 0.43 A.
  • Power supply: 230 V.

Attenuators

Not required.

EcoActive 100.

Guidance for specification option:

615 x 300 x 200 mm (L x W x H).

EcoActive 200.

Guidance for specification option:

615 x 400 x 300 mm (L x W x H).

EcoActive 300.

Guidance for specification option:

615 x 400 x 350 mm (L x W x H).

EcoActive 400.

Guidance for specification option:

750 x 500 x 400 mm (L x W x H).

Accessories

Not required.

Room sensor - CO₂ and temperature.

Guidance for specification option:

Wall mounted and wired back to unit.

Speed control.

Guidance for specification option:

0–10 V signal.

Integral accessories

Access panel, side (removable panels on quarter turn cam locks and plastic handles).
Fresh air sensor, spigot side.

Leakage

To EN 16798-3.

Manufacturer guidance

Leakage class.

Building Management System (BMS) connection

Modbus.

Flow rate

60 L/s.

100 L/s.

Manufacturer guidance

For ventilation of spaces with occupancies of up to 12 people (based on 8/l/s/p).

Support frame

Extruded aluminium to BS 1474 - 30 x 30 mm pentapost box section.

Mullions

Extruded aluminium to BS 1474 – 30 mm mullion joint.

Controls

Siemens Climatix Controllers, interface units, wall-mounted sensors and room operator units.

Guidance for specification option:

Consult manufacturer's literature for details and options.

Dimensions

1450 x 1000 x 330 mm.

Unit weight

134 kg.

Sustainability data

Country of product manufacture

United Kingdom

Literature

EcoActive MVHR

EcoActive MVHR

7192-M1-001-A

7192-M1-001-A
