Application

Suitable for standard housing or small load applications.

Description

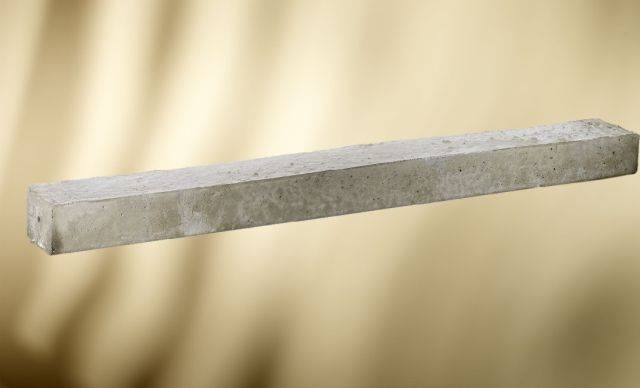

A cost effective, fully reversible unit for use in standard housing or a small load situation. All Economy lintels are suitable for use with L-Strip. An extruded finish and made from wet cast concrete. May see small air holes on the surface, aggregate and concrete fines to bottom arrises. For use normally in plastered situations. For exposed situations see Fair Faced range.


Features and benefits:

  • Design complies with EN 1992-1-1.
  • Materials comply with BS EN 206 and BS 8500.
  • The pre-stressing wire complies with BS 5896.

General information

Color

Grey

Finish

Textured

Guidance for specification option:

Ex-steel mould finish, made from wet cast concrete. May see small air holes on the surface, aggregate and concrete fines to bottom arrises. For use normally in plastered situations. For exposed situations see Fair Faced Range.

Material

Concrete

Shape

Rectangle

Length

600 mm

750 mm

900 mm

1050 mm

1200 mm

Show more

Width

65 mm

70 mm

100 mm

140 mm

215 mm

Height

65 mm

70 mm

100 mm

140 mm

215 mm

Warranty description

50 year

Guidance for specification option:

Design life.

Uniclass

Pr_20_85_48_67 Prestressed concrete lintelsPrimary

CAWS

F30/745 Prestressed concrete lintels

Product range

Lintels / Economy Lintels

Specification data - Prestressed concrete lintels

Standard

To BS EN 845-2.

Types

Single.

Dimensions

-

Length

900 mm.

Guidance for specification option:

Insert requirements, or 'As drawing/ schedule'.

1200 mm.

1500 mm.

1800 mm.

2100 mm.

2400 mm.

2700 mm.

3000 mm.

Cross section

100 x 65 mm.

100 x 140 mm.

140 x 65 mm.

215 x 70 mm.

140 x 140 mm.

100 x 215 mm.

140 x 215 mm.

Characteristics

-

Freeze/ thaw

Resistant.

Resistance to fire

30 minutes.

Thermal conductivity

1.52 W/m.K.

Guidance for specification option:

Thermal conductivity λ 10,dry, mat, to EN 1745.

Water absorption

1.15 Cw.s.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.19 kg CO₂ eq/kg

Self declared

Guidance for specification option:

Raw materials are locally and responsibly sourced.

Recyclability

-

Manufacturer guidance

At the end of life, concrete can be recycled. Crushed concrete can be used as aggregates in new concrete or as sub-base and fill.
