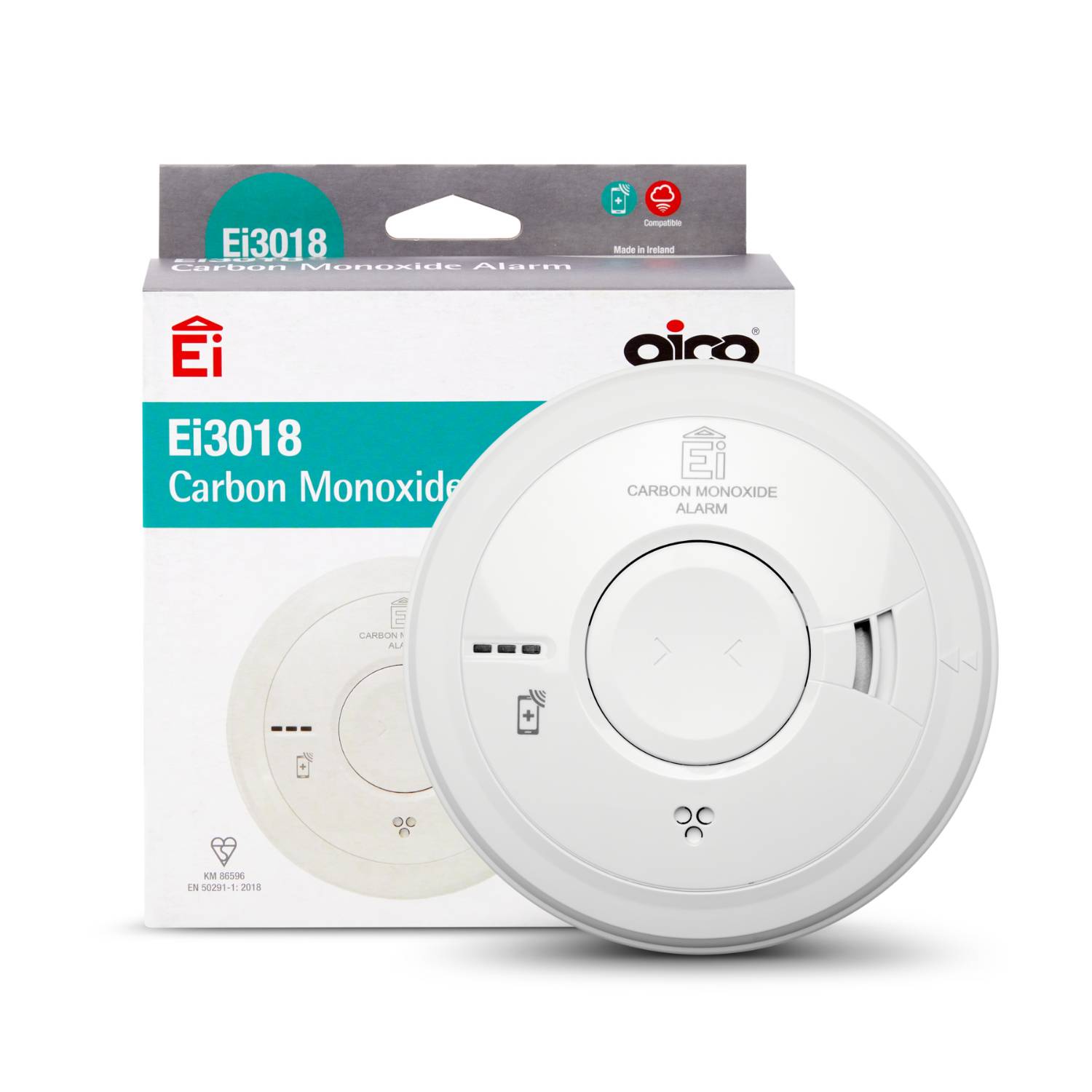

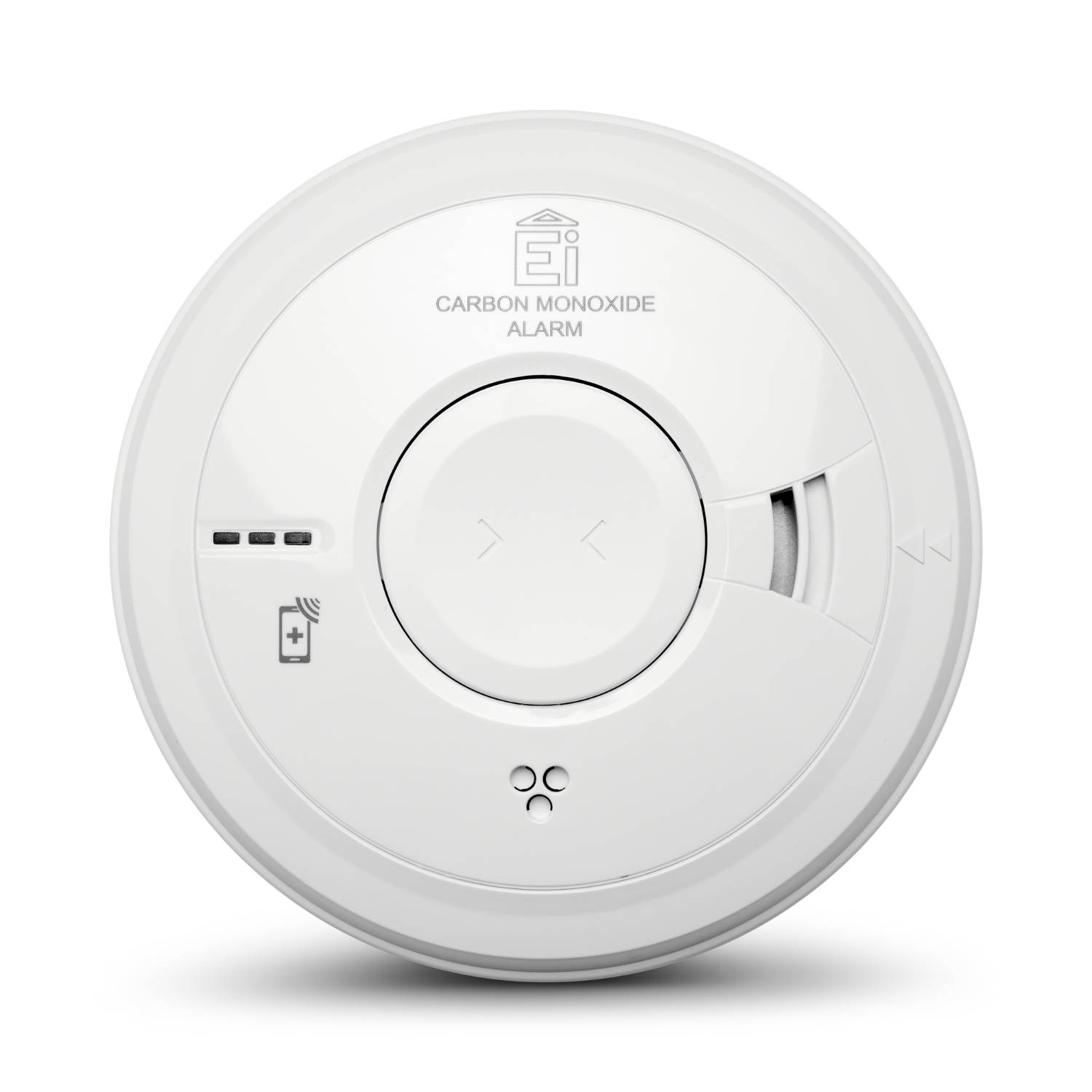

Ei3018 Carbon Monoxide (CO) Alarm - Carbon Monoxide (CO) Alarm
Verified by manufacturer 10 days ago
BSI Kitemark
Certificate type
Carbon monoxide (CO) alarm. 230 V with ten year rechargeable lithium back-up. AudioLINK+. SmartLINK upgradeable.
Application
Detection of Carbon Monoxide (CO) in domestic properties
Description
The Ei3018 is a mains powered carbon monoxide alarm with ten year rechargeable lithium back-up. It contains built-in AudioLINK+ data extraction technology and is upgradeable to SmartLINK wireless interconnection using a Ei3000MRF module. Mains powered with easi-fit base for quick and simple installation.
Features and benefits:
- Proven electrochemical CO sensor.
- Mains powered with rechargeable lithium back-up.
- Built in AudioLINK+ data extraction technology.
- Easi-fit base for quick and simple installation.
- Kitemarked to BS EN50291-1:2010.
- Part of the 3000 Series
- Kitemark reference: 86596.
- EAN number: 5099383006520
Product datasheet:
https://aicodatasheets.epim.online/Datasheet?part=Ei3018&template=AicoDatasheet
General information
Color | White |
Finish | Other |
Material | Polystyrene Guidance for specification option: HIP UL94 V0 flame retardant. |
Shape | Circle |
Length | 150 mm |
Width | 150 mm |
Height | 63 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | W90/332 Combined smoke and carbon monoxide detectors W90/332 Combined smoke and carbon monoxide detectors W90/331 Carbon monoxide alarms |
SKU Code | Ei3018 |
GTIN/EAN | 5099383006520 |
Specification data - Carbon monoxide detectors
Classification data | |
Standard | To BS EN 50291-1:2010+A1:2012. |
Third-party certification | BSI Kitemark-approved. |
Detector type | CO. |
Control features | Downloadable data including time in use, battery level, sensor status, peak CO level. |
Power supply | |
Primary | 230 V a.c. |
Battery backup | Rechargeable lithium back-up. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0%. |
Manufacturer's warranty (minimum) | Ten years. |
Enclosure material | High impact polystyrene (HIP) UL94 V0 flame retardant. |
Packaged weight | 0.378 kg. |
Weight | 0.306 kg. Guidance for specification option: Plastic weight: 0.002 kg. Manufacturer guidanceProduct weight. |
Type | Lithium rechargeable. Guidance for specification option: Battery weight: 0.009 kg. Manufacturer guidanceBattery type. |
Width | 155 mm. |
Depth | 62 mm. |
Height | 155 mm. |
Power consumption | 0.25 W. |
Fixing | Screws included. |
TemperatureRange | -10 to 40°C. |
RelativeHumidity | 15–95%. Manufacturer guidanceHumidity range. |
Indicator colour | Green - Power; Red - Alarm; Yellow - Fault. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | Netherlands |
Country of product manufacture | Ireland |
Manufacturing plant location | |
Material | Polystyrene Guidance for specification option: HIP UL94 V0 flame retardant. |
Recyclability | Follow WEEE regulations |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | Ten year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Product certifications
BSI Kitemark
BS EN 50291-1 - KM 86596
