Electrak Floor Boxes and Grommets
Verified by manufacturer 2 days ago
Floor Boxes - Access Floor Service Outlet Boxes
Floor Boxes - Access Floor Service Outlet Boxes
A range of floor boxes and grommets.
Application
For office installations.
Description
A range of floor boxes and grommets.

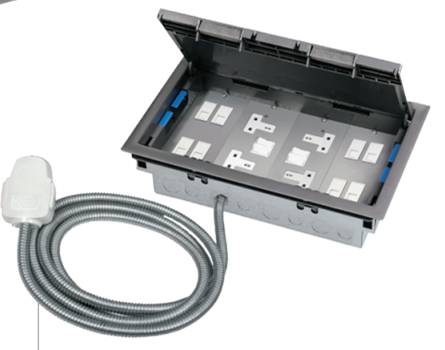

The floor boxes are available pre-wired with powertrack tap-off, or supplied empty (unassembled), with a choice of single or separate compartment bases and three depth options. With a wide selection of power and data plates available, boxes can be tailored to the specific requirements of each office installation. Available in two, three and four compartments.

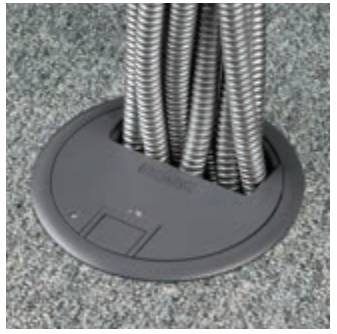

Electrak's range of floor grommets includes access and power and data grommets. The access grommets allow cables and conduit to link between underfloor power and desk power systems. Ranging from 144 mm to 232 mm in diameter. Push-fit lid with optional screw fixing to prevent unauthorised access. The power and data grommet range includes cleaner’s grommets. With a diameter of 169 mm, these grommets can accommodate a flat RCD 30 mA socket, providing sufficient space for users to plug in or unplug equipment easily.
General information
Color | Grey |
Finish | Galvanized |
Material | Steel Acrylonitrile butadiene styrene (ABS) Aluminium Nylon |
Shape | Rectangle Circle |
Length | 290 mm 366 mm 144 mm 169 mm 232 mm |
Width | 230 mm 144 mm 169 mm 232 mm |
Height | 75 mm 85 mm 110 mm 55 mm 102 mm |
Warranty description | Two year |
Uniclass | |
CAWS | K41/360 Service outlet boxes K46/382 Service outlet boxes |
SKU Code | CR |
Specification data - Service outlet boxes
Classification data | |
Standards | To BS EN 61534-22. |
Frame material | Galvanized steel. |
Hinged lid | |
Material | Galvanized mild steel with ABS outer. Galvanized mild steel with metal outer. |
Outer finish | Manufacturer’s standard grey. Guidance for specification option: Alternative colours available to special order. Other. |
Recess | To suit floor covering. Guidance for specification option: Floor boxes: Lid can accommodate carpets up to 6 mm depth. Grommets: Removable inlay for optional carpet fitting. |
Lockable | Not required. Required. |
Dimensions | 290 x 230 mm. Guidance for specification option: Access floor service outlet boxes. Available with two compartments. 366 x 230 mm. Guidance for specification option: Access floor service outlet boxes. Available with three or four compartments. |
Compartments | |
Power | Manufacturer guidanceA wide selection of power and data plates is available. Consult manufacturer's literature and insert requirements. |
Communications and signalling | Manufacturer guidanceA wide selection of power and data plates is available. Consult manufacturer's literature and insert requirements. |
Depth | 75 mm. 85 mm. 110 mm. |
Base | Single base. Separate compartment base. |
Wiring | Not required. Pre-wired. Guidance for specification option: Electrak floor boxes can be supplied pre-wired to powertrack tap-offs with any variation of sockets, tap-offs, depth or other configuration. RCD 30 mA protection is also available. Refer to manufacturer's literature and insert requirements. |
Sustainability data
Material | Steel Acrylonitrile butadiene styrene (ABS) Aluminium Nylon |
