Electrak Underfloor Power
Verified by manufacturer 3 days ago
Electrak 24 Standard system (white)
Electrak 24 Standard system (white)
EPD
Certificate type
Underfloor busbar for cavity floor installations.
Application
Suitable for cavity floor installations.
Description
Electrak powertrack/ underfloor busbar is suitable for cavity floor installations. With minimal parts, push-fit assembly and a complementary range of floor boxes and grommets, this flexible, easy-to-install system can be reconfigured as office layouts evolve. The system consists of continuous lengths of track which are fed via a feed unit and can be installed in floor voids as low as 48 mm.
Features and benefits:
- 63 A rated, IP 40 protection.
- Available in five versions: single phase, clean earth, dual circuit, three phase and auxiliary earth.
- Available in 1.2 m, 1.8 m, 2.4 m and 3.6 m lengths.
- Tap-off outlets are located at every 300 or 600 mm pitch.
- Floor mountable (stand-off brackets also available).
General information
Color | White Green Grey Red |
Finish | Galvanized |
Material | Steel Polycarbonate |
Shape | Rectangle |
Length | 1200 mm 1800 mm 2400 mm 3600 mm |
Width | 99 mm |
Height | 47 mm |
Warranty description | Two year |
Uniclass |
Specification data - Powertrack
Classification data | |
Standards | To BS EN 61534-22 and BS 7671. |
Rated current (InA) | 63 A. |
Rated operational voltage (Ue) | 230/ 400 V a.c. |
Rated impulse withstand voltage (Uimp) | 4000 V. Guidance for specification option: Category III. |
Configuration | Single-sided. |
Length | 1200 mm. Guidance for specification option: Four outlets. 1800 mm. Guidance for specification option: Six outlets. 2400 mm. Guidance for specification option: Eight outlets. 3600 mm. Guidance for specification option: 12 outlets. |
Tap-off points | At 300 mm intervals. At 600 mm intervals. |
Resistance to impact (minimum) | 5 J. |
Resistance to floor maintenance | Suitable for dry treatment of floor. |
Installation position | Underfloor. |
Tap-off units | 32 A unfused 16 mm Ø L, N, PE. 13 A fused 16 mm Ø L, N, PE. 13 A 543·7 fused 16 mm Ø L, N, PE. |
Enclosure | |
Ingress protection (minimum) | IP40. |
Material | Sheet steel. |
Finish | Galvanized. |
Colour | Grey. |
Pollution degree category | 2. |
Conductors | Insulated copper. |
Accessories | Track feed unit and flexible interlinks. |
Service conditions | Normal. |
Support | Integral floor fixing brackets. Guidance for specification option: As standard. Special fixing brackets. Guidance for specification option: Required when track is raised off surface level. Brackets raise track by 21 mm and should be spaced 600 mm apart. |
Sustainability data
Material | Steel Polycarbonate |
Product certifications
Product certifications
EPD

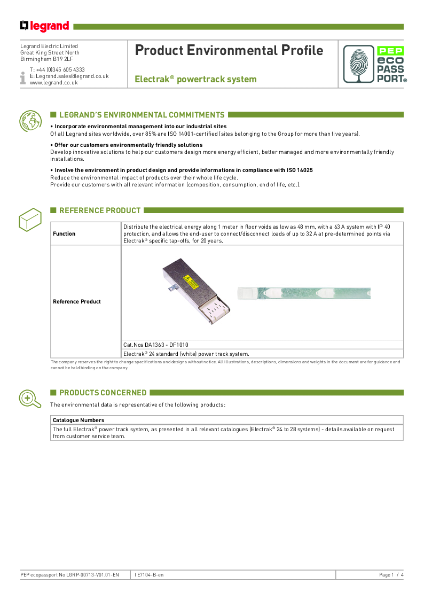

Product Environmental Profile Electrak® powertrack system
