Ellipse Bed Head - Wall Protector
Verified by manufacturer today

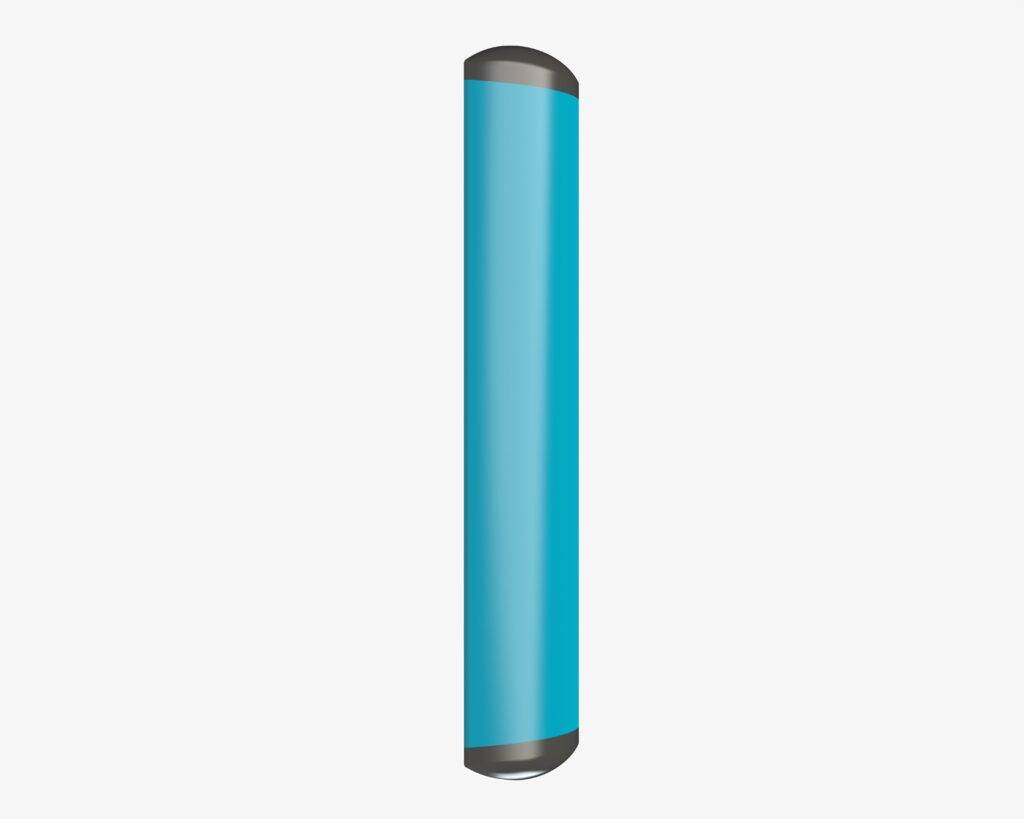

Oval twin handrail with upper handrail and lower protection rail.
Application
Specifically developed for healthcare environments.
Description
The Yeoman Shield Ellipse Bed Head Protectors are part of a range of comprehensive wall protection solutions, specifically developed for healthcare environments.
Designed to shield walls from damage caused by beds and medical equipment, the protectors are installed vertically in pairs and can be fitted directly to the wall or mounted on spacers to accommodate and safeguard medical services.
Manufactured from durable extruded PVCu, the protectors feature a robust, easy-to-clean stippled surface and are available in a wide selection of colours to complement interior design schemes.
Features and benefits:
- Save the bed, wall and medical gas equipment from harm.
- Fire rated.
- Protects wall at head of beds.
- Fitted vertical in pairs.

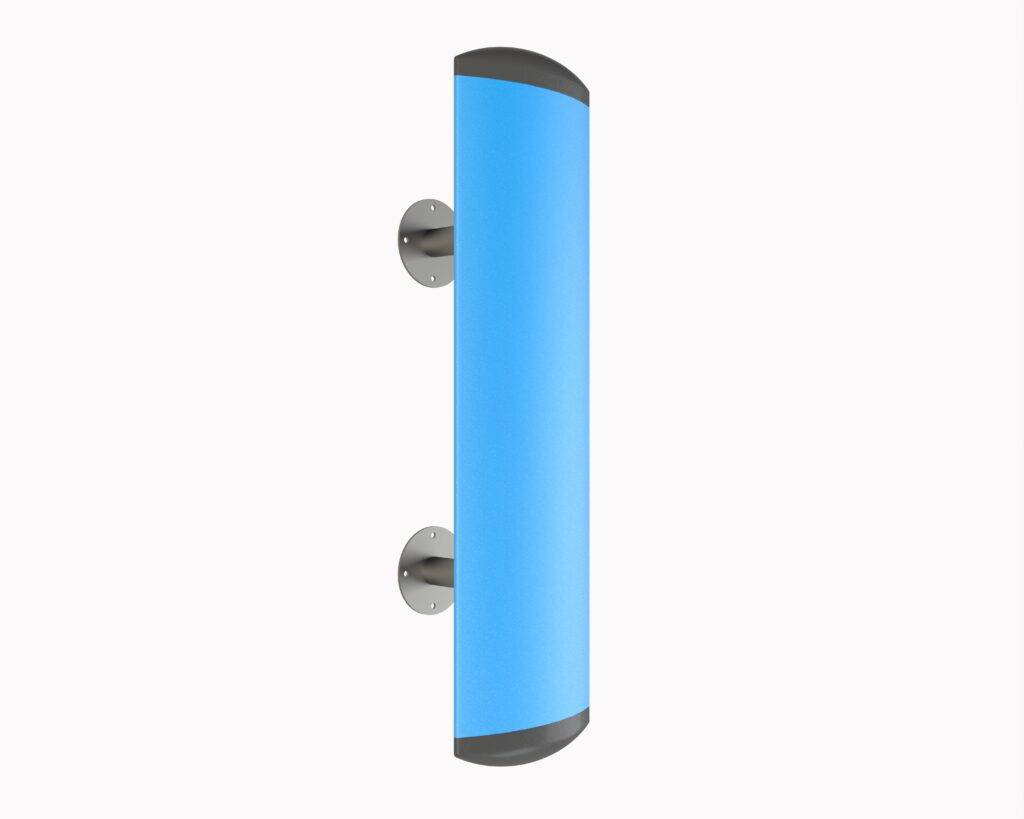

- Mounted flat to the walls or on spacers.
- Steel dumbell or standard spacers available.
- Choice of colours.
- Low VOC Product.
General information
Color | White Grey Blue Turquoise Purple |
Finish | Coated Powder-coated Textured |
Material | PVC-U Aluminium Steel |
Shape | Rectangle |
Length | 750 mm 900 mm 1200 mm |
Width | 200 mm |
Uniclass | |
CAWS | P20/30 Proprietary P20/170 Proprietary |
Specification data - Wall protection panels
Classification data | |
Material | Extruded PVCu cover over aluminium core. |
Fire rating | Textured Extruded Protection Products: B, s2, d0. To BS EN 13823: 2010 + A1: 2014. To BS EN ISO 11925-2: 2010. To BS EN 13501-1: 2007 + A1: 2009. To BS 476-7, Class 1Y. To BS 476-6, Class O as defined in the latest building regulations, approved document B (Fire Safety). |
Finish | Stippled. |
Anti-microbial coating | Not required. |
Colour or pattern | Light grey. Mid grey. Dark grey. White. Dusty grey. Graphite. Aqua blue. Cornflower blue. Trafalgar blue. Royal blue. Amethyst. Aubergine. Heather. Mocha. Sage green. Opal green. Light green. Pastel green. Pastel blue. Steel blue. Lilac. Red. Sky blue. Yellow. Green. Black. Dark blue. Regatta blue. Powder blue. Pigeon blue. Brown. Buff. Mushroom. Cream. Avocado. Lavendar. Pale green. Terracotta. Raspberry red. Bordeaux. Burgundy. Blush. Pink rose. Grapefruit. Orange. Slate green. Primrose. Tangerine. |
Profile | Manufacturer's standard. |
Size | 3.5 m lengths. |
Fixing | Directly to the wall. Mounted on spacers. |
Volatile organic compounds (VOC) emissions level (maximum) | Low VOCs. |
Spacers | Standard spacers. Steel dumbell spacers. |
Width | 200 mm. |
Length | 750 mm. 900 mm. 1200 mm. |
Projection | 60 mm on standard spacers. 150 mm on dumbbell brackets. Manufacturer guidanceProjection on spacers. |
Accessories | Manufacturer guidanceInjection moulded ABS available. Consult manufacturer for details and insert requirements. |
Sustainability data
Material | PVC-U Aluminium Steel |
