EMS Debris Channel - Recover - Aluminium Grid Entrance Matting System

Verified by manufacturer 3 months ago

Entrance Matting Systems Ltd

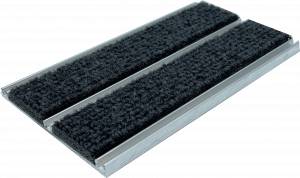

Recycled and recyclable entrance matting system with aluminium grid and polyester ribbed infills.

Jump to:
BOS
+44 (0)1205 761757 Website

Application

Suitable for:

  • Internal use.
  • Leisure.
  • Offices.
  • Industrial.
  • Public sector.
  • Retail.
  • High footfall.

Description

EMS Recover entrance matting system is constructed with the EMS Debris Channel 100% recycled and recyclable solid aluminium interlocking grid system, combined with EMS Recover recycled and recyclable infill material. It has an exceptional combination of materials creating a high quality sustainable entrance matting system.


Features and benefits:

  • Durable and sustainable.
  • 80% recycled polyester and 20% polyester insert.
  • Made in the UK.
  • Manufactured with vegan materials.
  • No additives, adhesives or latex.
  • Heat laminated.
  • Single polymer.
  • Fully recyclable.
  • No landfill.
  • High fire resistance rating.
  • 100% recycled aluminium solid grid system base – no wires.
  • Available in primary and secondary barrier entrance matting system.
  • Easy to cut on site and install.
  • Easy to clean and maintain.

General information

Color

Finish

Anodized

Material

Aluminium

Polyester

Shape

Rectangle

Crescent

Diamond

Elliptical

Circle

Show more

Length

Bespoke

Width

Bespoke

Height

12 mm

17 mm

Warranty description

15 year

Uniclass

Pr_35_57_11_26 Entrance matsPrimary

CAWS

N10/300 Entrance matting

Specification data - Entrance mats

Description

Recycled and recyclable entrance matting system with aluminium grid and polyester ribbed infills.

Manufacturer

Entrance Matting Systems Ltd.

Arrangement

Inset internal.

Guidance for specification option:

Recessed in matwell.

Loose lay internal.

Guidance for specification option:

Surface-laid with ramped edge frames.

Dimensions

Bespoke.

Guidance for specification option:

Insert requirements.

  • EMS panels are manufactured specifically to suit building requirements.
  • Panel lengths are available up to 4600 mm left to right without a join.
  • Aluminium grid system and framework to suit (up to 2500 mm in gunmetal grey).

Material

Polyester.

Guidance for specification option:

  • Infill: 80% recycled polyester, 20% polyester ribbed.
  • Extrusion composition: recycled aluminium.

Pattern

Ribbed.

Colour

Graphite.

Zinc.

Integral accessories

Debris channel.

Grid

Aluminium, solid grid.

Aluminium profile finish

Anodized, black.

Anodized, light gold.

Anodized, medium gold.

Anodized, dark gold.

Anodized, gun metal grey.

Show more

Total height

12 mm.

Guidance for specification option:

Low profile.

17 mm.

Guidance for specification option:

Standard profile.

Fire resistance

To BS EN 13501-1, Class Bfl s1.

Class

To BS EN 1307, 33 Heavy Contract.

Flammability

Hot metal nut to BS 4790, LRC.

Colour fastness

Colour fastness to light: to DIN EN ISO 105 B02, Grade 6.
Colour fastness to water: to DIN EN ISO 105 E01, Grade 5.

Colour fast - rubbing

To DIN EN ISO 105 X12, Grade 4.

Colour fast - shampoo

To BS 1006-UK-TB, Grade 5.

Static load resistance

To BS 4939/ISO 3416, Pass.

Dynamic loading

To BS ISO 2094, Pass.

Castor chair rating

To BS EN 985 (R2.9), Pass.

Light reflectance

2.1–8.38.

Guidance for specification option:

Consult manufacturer's literature for details.

Dimensional stability

Tested to BS 4682.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Polyester

Recyclability

Fully recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Guidance for specification option:

Aluminium is a minimum of 95% recycled, closed construction format.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

EMS Debris Channel - rECOver

EMS Debris Channel - rECOver
