Energysaver FAIRs - Factory Assembled Insulating Rooflights

Name: Energysaver FAIRs - Factory Assembled Insulating Rooflights
Brand: Brett Martin Daylight Systems
SKU: 2zKzF1psxbVeexkxGXVknA

Verified by manufacturer 1 month ago

Trilite 24

Brett Martin Daylight Systems

Third party certifications:

EPD
Certificate type

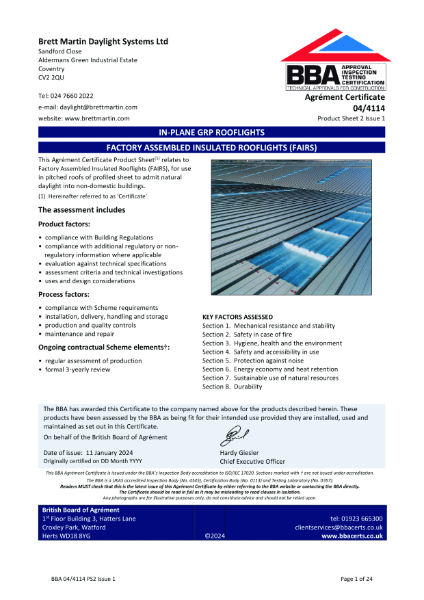

BBA Agrément Certificate
Certificate type

Innovative triple skin factory assembled insulating rooflights (FAIRs) for daylighting composite panel applications.

Jump to:

+44 (0)24 7660 2022 Website

Application

Composite panel roofs on industrial buildings.
For daylighting composite panel applications.

Description

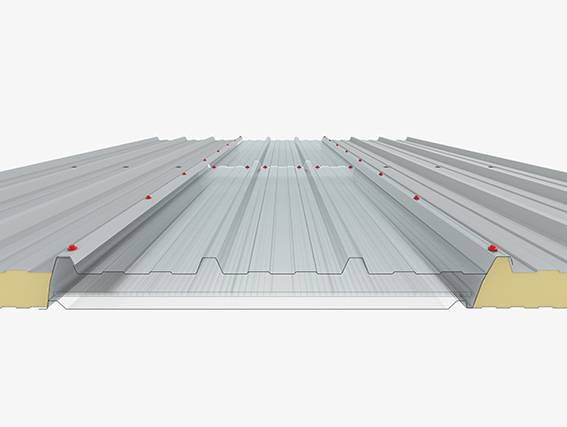

Energysaver composite panel rooflights are innovative triple skin Factory Assembled Insulating Rooflights (FAIRs) for composite roofs, manufactured from GRP. They offer the best quality diffused natural daylight, thermal performance and ready-to-fit convenience for wide-span buildings.

Delivering U-values from 1.9 W/m²K down to 0.9 W/m²K, thermally insulating Energysaver FAIRs help a building achieve compliance with Part L of the Building Regulations.

Energysaver FAIRs have distinct features as standard offering quick, simple and reliable installation. With a long-life expectancy of 25+ years, they offer outstanding value.

Features and benefits:

Excellent quality diffused natural light transmission.
Compatible with standard composite roof panels.
Can be tailored to meet specification requirements
Range of safety and fire ratings to meet all requirements.
Rapid ‘fit and forget’ trouble-free installation.
Ease of handling on site.
Long lifespan with minimal maintenance requirement.
Distinct design features including Hardpak filler and Underlap Strip for simple and reliable installation.
BBA approved.
BRE Globally Verified EPD (Environmental Product Declaration).

General information

Color	Clear
Material	Glass Reinforced Plastic (GRP)
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_30_59_72_30 Factory-assembled insulating rooflights (FAIRs)Primary Pr_25_71_63_34 Glass fibre-reinforced plastics (GRP) profiled sheets
CAWS	H31/160 Profiled plastics sheet H43/160 Profiled plastics sheet H31/30 Profiled plastics sheet H43/30 Profiled plastics sheet L10/45 Rooflights L10/460 Rooflights

Specification data - Factory-assembled insulating rooflights (FAIRs)

Standard	To BS EN 1013.
Material	Glass-reinforced polyester. (GRP).
Dimensional characteristics	-
Profile	Trapezoidal.
Thickness	Manufacturer's standard.
Cover width	- Manufacturer guidance Bespoke. Consult manufacturer and insert requirements.
Length	- Manufacturer guidance Bespoke. Consult manufacturer and insert requirements.
Colour	Clear.
Fire performance	-
External fire exposure	To BS EN 13501-5, Class Broof(t4).
Light transmission	55–64%.
Fragility	To ACR[M]001, Class B.

U-value	1.3–1.9 W/m²K.
Sheet weight	2.4 kg/m². 3.0 kg/m². 3.6 kg/m². 4.5 kg/m².
Surface protection	Not required. Superlife UV surface protection. Diamond long life. Guidance for specification option: Optional. Protection against weathering, UV degradation and chemical attack, giving a life expectancy of over 30 years.
Safety	Good.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Glass Reinforced Plastic (GRP)
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	31 kg CO₂ eq/unit
Expected Life	25 year
