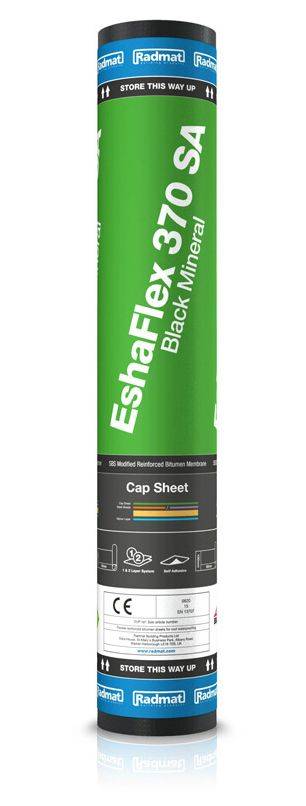

EshaFlex 370 SA Black Mineral

Name: EshaFlex 370 SA Black Mineral
Brand: Radmat Building Products Ltd
SKU: 2eMyvrPbfRby5FaQxYFUv2

Verified by manufacturer 3 months ago

Third party certifications:

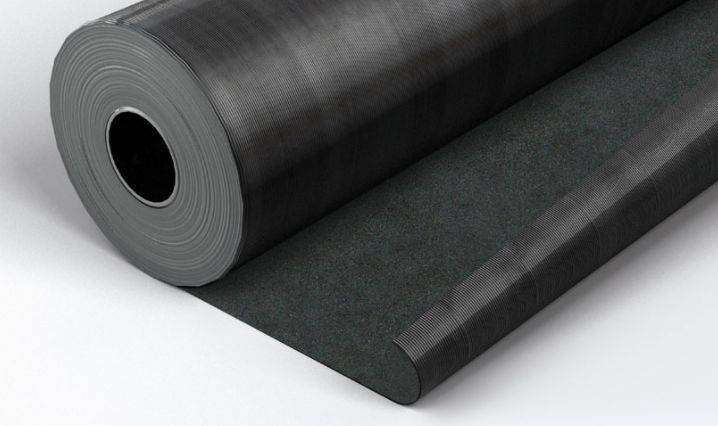

Self-adhesive SBS modified bituminized polyester/ fibreglass composite cap sheet with a black mineral finish for use in bituminous roofing systems.

Jump to:

Application

Suitable for all types of roof with a flat or sloped roof construction on new build or refurbishment. Overlaps must be torched.

Self-adhesive SBS modified bituminized polyester/ fibreglass composite cap sheet with a black mineral finish for use in bituminous roofing systems.

Sheet composition:

Overlaps:

Color	Black
Material	Polyester Thermoplastic elastomer (TPE) Guidance for specification option: SBS.
Shape	Rectangle
Length	7500 mm
Width	1000 mm

Uniclass	Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary
CAWS	J41/405 Single-layer reinforced bitumen waterproof covering J41/400 Built-up reinforced bitumen waterproof covering J41/120 Built-up reinforced bitumen membrane inverted roof covering J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/130 Built-up reinforced bitumen membrane cold deck roof covering J41/115 Single-layer reinforced bitumen membrane warm deck roof covering J41/125 Single-layer reinforced bitumen membrane inverted roof covering J41/10 Reinforced bitumen membrane warm deck roof covering J41/12 Reinforced bitumen membrane cold deck roof covering J41/135 Single-layer reinforced bitumen membrane cold deck roof covering

Standard	To BS EN 13707.
Performance characteristics	Visible defects: Pass; Straightness: Pass.
Material	-
Carrier material	Polyester/ fibreglass.
Bitumen modification	Styrene Butadiene Styrene (SBS).
Thickness (minimum)	4.2 mm. Guidance for specification option: ±0.2 mm.
Weight (minimum)	4.2 kg/m². Guidance for specification option: ±10%.
Surface finish	-
Top	Black slate chippings.
Underside	Self-adhesive backing. Guidance for specification option: With PE release film.
Colour	Black.
Third-party certification	BBA certificate No. 15/5282.

Roll length	To EN 13707, 7.5 m.
Roll width	To EN 13707, 1 m.
Reaction to fire	To EN 13707, Class F.
Watertightness	To EN 13707, Pass, ≥ 10 kPa.
Tensile strength (Cross direction)	To EN 13707, 700 ± 20% N/50 mm.
Tensile strength (Machine direction)	To EN 13707, 800 ± 20% N/50 mm.
Elongation MD/CD	To EN 13707, 25 ± 15/ 25 ± 15%.
Root protection	To EN 13707, Pass. Manufacturer guidance Resistance to root penetration.
Static load resistance	To EN 13707, ≥ 15 kg.
Impact resistance	To EN 13707, ≥ 1750 mm.
Resistance to tearing	To EN 13707, ≥ 250 N. Manufacturer guidance Nail shank.
Flexibility at low temperature	To EN 13707, ≤ -20°C.
Ageing	To EN 1296, ≥ 90°C. Manufacturer guidance Artificial ageing by long term exposure to elevated temperature EN 1296: flow resistance at elevated temperature.
FlowResistanceRange	To EN 13707, ≥ 100°C. Manufacturer guidance Flow resistance at elevated temperature.
Dimensional stability	To EN 13707, ≤ 0.3%.
Adhesion	To EN 13707, 30%. Manufacturer guidance Adhesion of Granules.
Water vapour resistance	To EN 13707, 20 000 μ.
