Essential Two Tier Bike Rack

Verified by manufacturer 2 months ago

Cyclehoop

High density, easy to use, two tier cycle parking for use when space is limited.

Jump to:
+44 (0)20 86991338 Website

Application

  • Suitable for spaces that require high-density cycle parking such as workplaces, universities, and apartments.
  • Can be installed indoors and covered outdoors.

Description

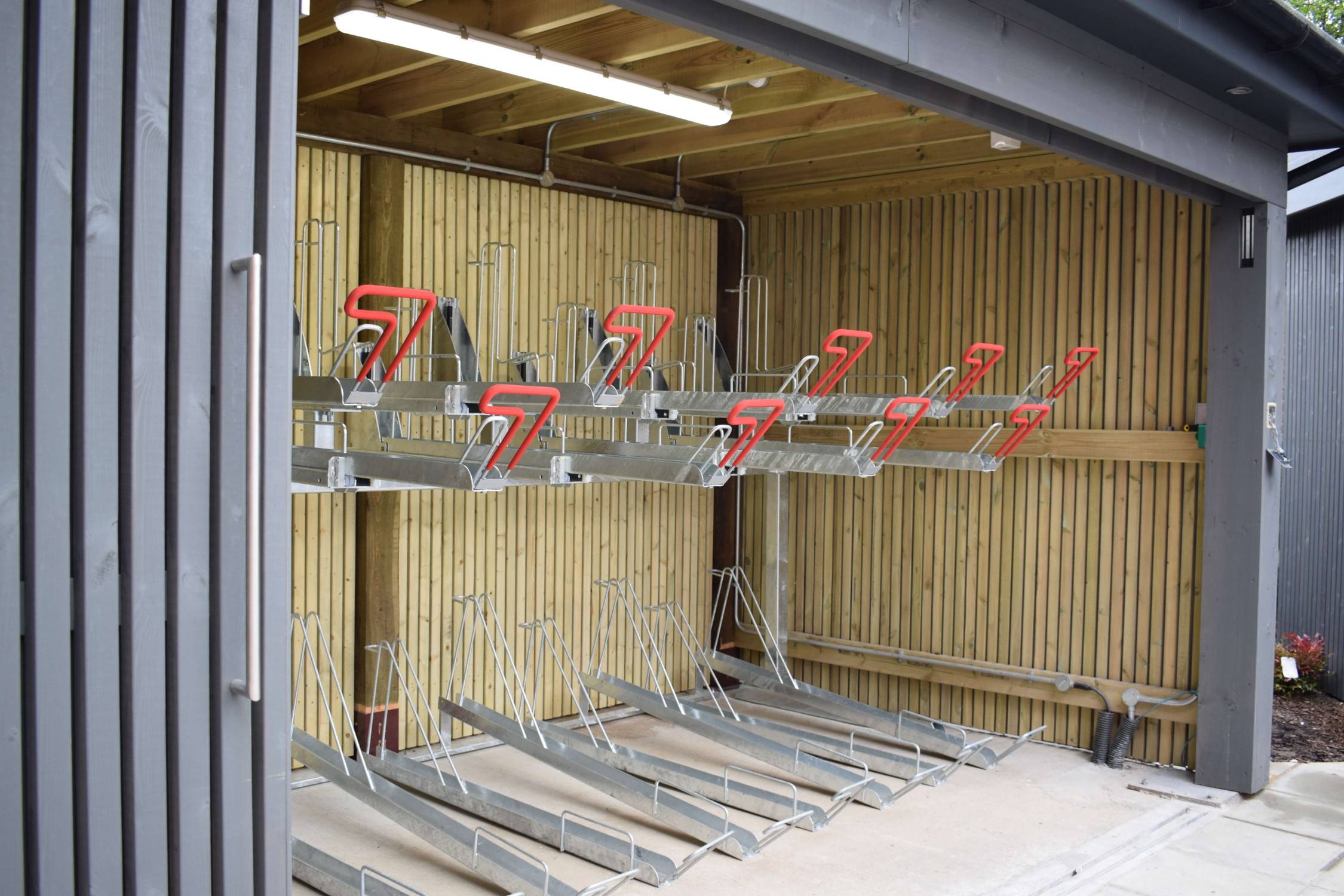

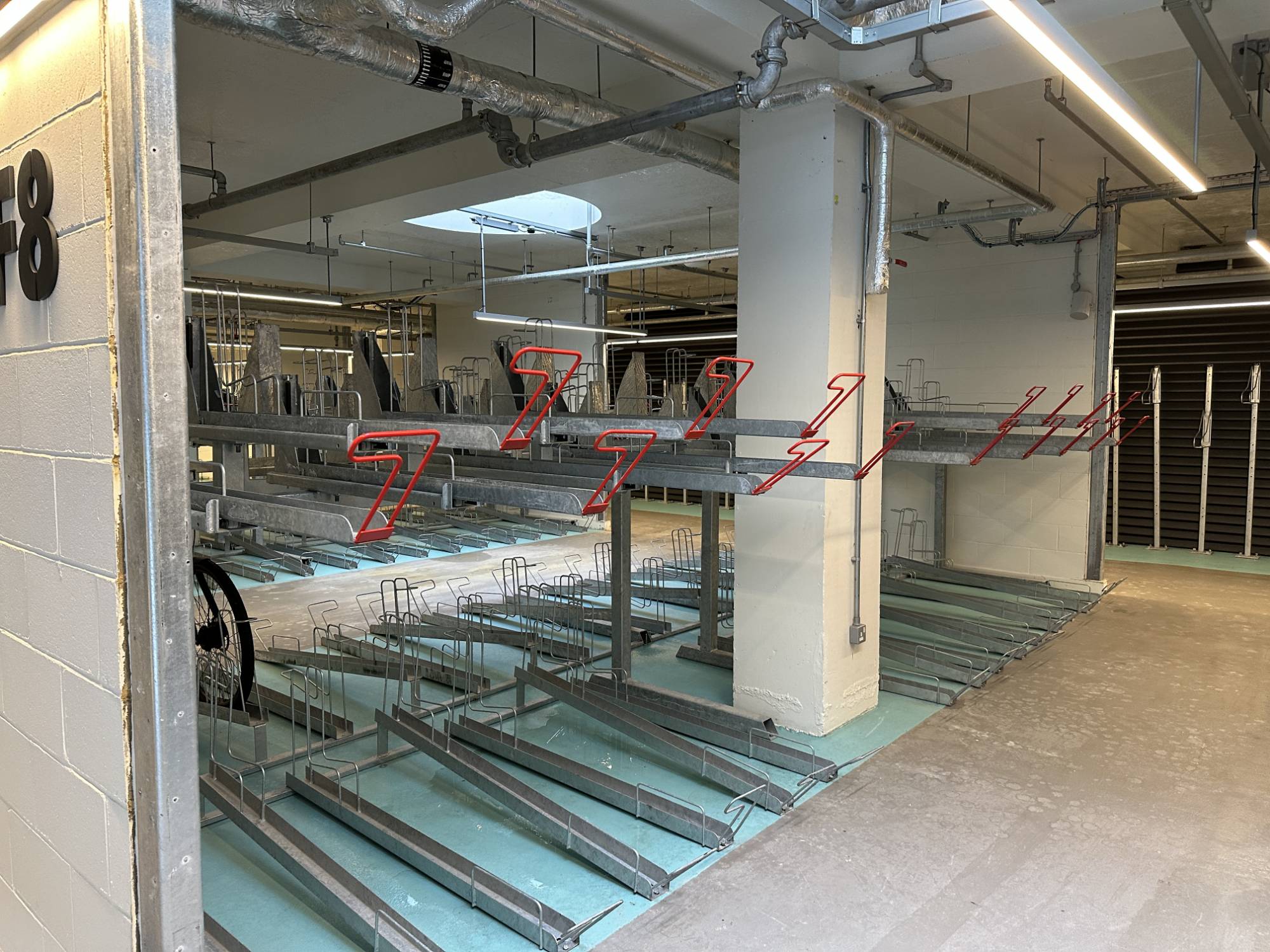

When space is limited, the Essential Two Tier Rack provides high density, easy to use cycle parking. It is a cost-effective solution that does not compromise on security and is BREEAM-compliant.


The upper level can be lowered making it easily accessible for bikes to be lifted in place. In addition to this, the gas assist - that comes as standard - significantly reduces the effort required to load and unload the rack.


Bikes can be secured to the rack with built-in locking bars providing points for a D-lock to anchor the bike frame and wheels. To cater for non-standard cycles or cargo bikes, Sheffield Stands or similar can be provided alongside this product.


Features and benefits:

  • Holds twice as many bikes within the same surface area as standard racks.
  • Minimal lifting of bike, top tier lowers for easy access.
  • Upper rack is gas-assisted for easy lifting.
  • Red handles on upper rack for visibility.
  • Wide channels suit a variety of tyre widths.
  • High density rack spacing of 375 mm on single sided and 400 mm on double-sided.
  • Lower level suitable for bikes with child seats.
  • Suits tarmac, block or slab paving and concrete.
  • Hard-wearing galvanized finish to BS EN ISO 1461 : 2009.
  • Available in single or double-sided.
  • Lower level can be individual channels or integrated Sheffield Stands.
  • Optional powder coating in any RAL colour.
  • Hardened steel locking points.
  • Both wheels and frame can be secured with D-locks.
  • Designed and manufactured in the UK.
  • Ten year warranty.

General information

Color

Grey

Other

Finish

Galvanized

Powder-coated

Material

Steel

Shape

Other

Length

Bespoke

Width

2115 mm

Height

1965 mm

Warranty description

Ten year

Uniclass

Pr_40_30_21_12 Carbon steel cycle standsPrimary

CAWS

Q50/32 Cycle stands

Q50/210 Cycle stands

Specification data - Carbon steel cycle stands

Stand type

Cycle.

Number of stands

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Base

Anchored base.

Guidance for specification option:

Securely bolted into tarmac, block or slab paving, or concrete, with expanding ground anchors, or threaded rods fixed with chemical anchoring adhesive and secured with shear nuts.

Finish as delivered

Galvanized to BS EN ISO 1461.

Colours

Grey (galvanized).

Guidance for specification option:

Standard.

Powder coating, RAL colour.

Guidance for specification option:

Optional - insert requirements.

Height

1965 mm.

Guidance for specification option:

Minimum height required: 2500 mm.

Depth

2115 mm.

Guidance for specification option:

  • In-use depth: 3000 mm.
  • Required space (depth): 3350 mm (includes additional 1300 mm for loading).

Accessories

Not required.

Sheffield stands.

Guidance for specification option:

Specified separately. Consult manufacturer for details and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Recyclability

Steel parts recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Literature

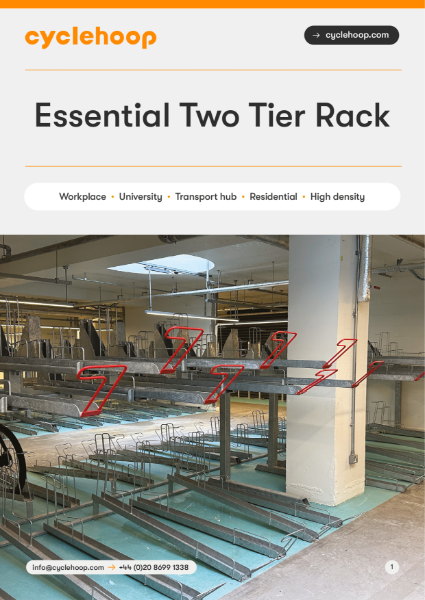

Essential Two Tier Bike Rack
