ESW-50REM SMOKE VENT
Verified by manufacturer 1 month ago
Single leaf stairwell Natural Smoke and Heat Exhaust Ventilator (NSHEV)(OV)(AOV).
Description
The Single leaf stairwell Natural Smoke and Heat Exhaust Ventilator is fitted with solid, insulated covers and has electric actuation for remote opening and closing.
The kerb is 305 mm in height with integral capflashing, 50 mm polyisocyanurate insulation with a U-value of 0.47 W/m²K, fully-welded at corners, and 114 mm mounting flange with 11mm holes provided for securing frame to the roof deck.
Features and benefits:
- Designed to satisfy Building Regulations and meets Approved Document B, BS 9999 and EN 12101.
- Also compatible with other guidance and codes of practices, for example those issued by the British Research Establishment such as BRE 79204.
- Kerb mounted junction box with terminal block enclosed for power cable connection.
- Built-in wind deflector.
- Fully welded corners on cover and kerb.
- Fully insulated cover.
- Kerb features the Bil-Clip® flashing system.
- Operation of the cover not affected by temperature.
- Entire vent weathertight with fully welded corner joints on cover and curb.
- Wind deflectors 4 mm aluminium with 3 mm EPDM gasket.
General information
Finish | Mill Guidance for specification option: Factory finish. |
Material | Aluminium Polyisocyanurate Guidance for specification option: Insulation. |
Shape | Square |
Length | 1488 mm |
Width | 1488 mm |
Height | 305 mm Guidance for specification option: Curb 305 mm in height formed with a 114 mm flange. |
Warranty description | Five year Guidance for specification option: Manufacturer's warranty. |
Uniclass | |
CAWS | L10/490 Roof ventilators |
Specification data - Natural smoke and heat exhaust ventilators
Standard | To BS EN 12101-2. |
Arrangement | Flap. |
Dimensions | |
Length | 1488 mm. |
Width | 1488 mm. |
Controls | Not required.1RPREM-01.Guidance for specification option: Control Panel Kit (Control Panel, MCP, and Smoke Detector). 1RPREM-02.Guidance for specification option: MCP. 1RPREM-03.Guidance for specification option: Smoke detector. 1RPREM-04.Guidance for specification option: Thermostat. 1RPREM-07.Guidance for specification option: Auto/ manual control switch. 1RPREM-08.Guidance for specification option: Open/ close smoke vent switch, keyed. 1RPREM-08A.Guidance for specification option: Open/ close smoke vent switch, paddle. 1RPREM-09.Guidance for specification option: OS2 control panel. 1RPREM-10.Guidance for specification option: Open/ close switch. 1RPREM-11.Guidance for specification option: Weatherproof open/ close switch. 1RPREM-15.Guidance for specification option: Rain sensor. 1RPREM-21.Guidance for specification option: MCP with break glass. |
Materials | |
Ventilator | |
Frame | Aluminium. |
Finish | Mill finish. |
Colour | Natural. |
Integral upstands | |
Material | Double-skin aluminium, insulated. |
Finish | Mill finish. |
Colour | Natural. |
Seals | Heavy extruded EPDM rubber gasket bonded to the cover interior to ensure a continuous seal when compressed to the top surface of the curb. |
Curb | Curb liner. Flanged apron. Fully enclosed. Standard. |
Explosion relief smoke vent | Not required. Required. |
Maximum live load | Cover reinforced to support a minimum live load of 195 kg/m². |
Deflection | 1/ 150th of the span (maximum). |
Operating | A single linear actuator mounted on a pivoting carriage capable of opening the cover to the fire open position of 140º. |
Cover | 3 mm aluminium with a 100 mm beaded flange with formed reinforcing members. Polyisocyanurate insulation of 50 mm thickness with a U-value of 0.47 W/m²K. Insulation to be fully covered and protected by an aluminium liner. |
Hardware | Heavy pintle hinges; Curb mounted junction box with a terminal block enclosed for power cable connection. |
Sustainability data
Material | Aluminium Polyisocyanurate Guidance for specification option: Insulation. |
Literature

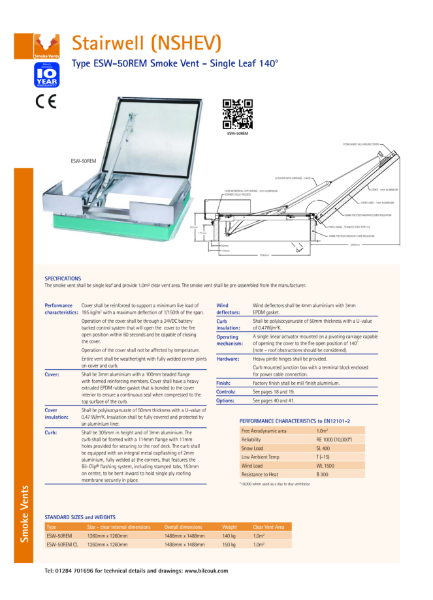

Smoke Vent ESW-50REM 1260x1260mm

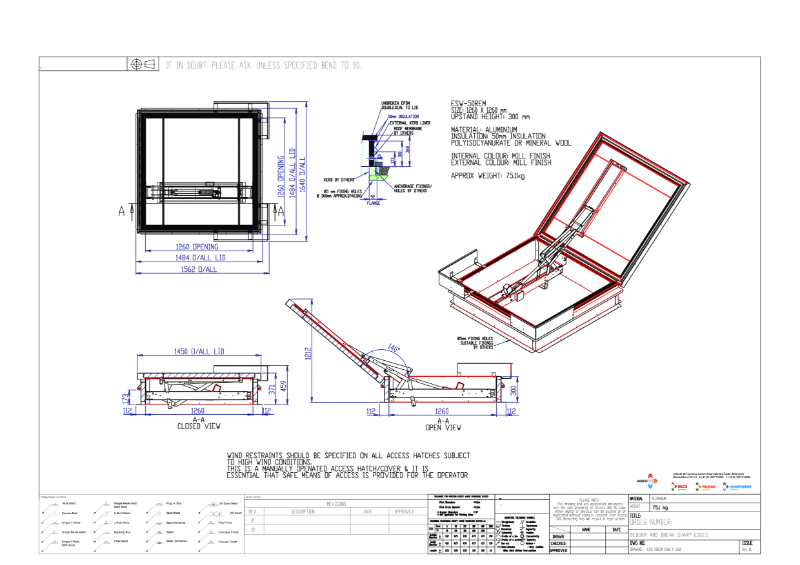

SUBMITTAL DRAWINGS ESW-50REM

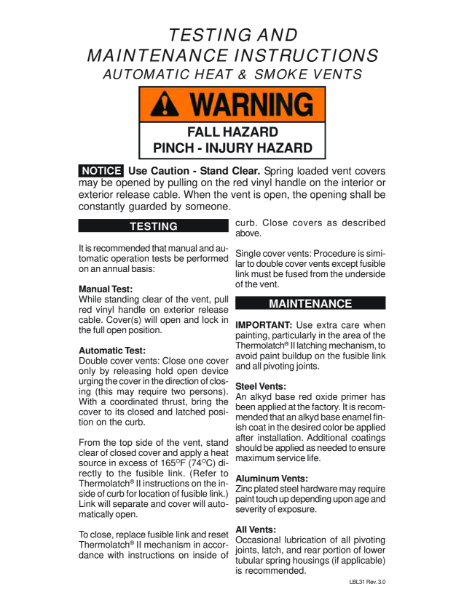

TESTING AND MAINTENANCE INSTRUCTIONS ESW-50REM
DECLARATION OF CONFORMITY ESW-50REM
