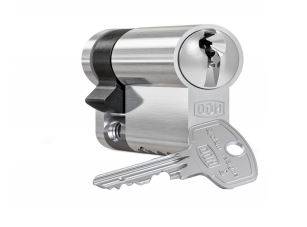

Euro Profile Single Cylinder (HUKP-0503-01) - Locking Cylinders
Verified by manufacturer 10 days ago
Single, Master Key registered EN 1303, euro profile cylinder.
Application
For residential use. Suitable for fire and smoke door assemblies subject to satisfactory assessment (tested to EN 1634-1:2000).
Description
Single, Master Key registered EN 1303, euro profile cylinder.
Features and benefits:
- Master Key system to 100,000 differs with Trademark Protection.
- Anti-Bump protection highest Grade 6 key security.
- Comprises 12 sectionally arranged core and housing pins.
- Vertical keyprofile has optimised angle cuts for smooth rotation.
- Cylinder includes 6 sprung solid tumblers set axially each side.
- Sizes available 40 mm, 45 mm, and 50mm - others on application.
- EN1303:2005 Performance tested Class: 1/6/-/1/-/C/6/2.
- German Vds inspected and approved 2156:1 AZ TM Registered.
General information
Color | Grey Silver Black Bronze Brown |
Finish | Matt Polished |
Material | Brass |
Shape | Other |
Length | Bespoke |
Width | 17 mm |
Height | 34 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/24 Door locks P21/515 Door locks |
SKU Code | HUKP-0503-01 |
Product range |
Specification data - Door locks
Classification data | |
Description | Single, Master Key registered EN 1303, euro profile cylinder. |
Manufacturer | Hafele UK Ltd. |
Standard | To BS EN 1303:2005, EN 1634-1:2000. |
Classification grades (minimum) | |
Category of use | BS EN 1303, Grade 1. |
Durability | BS EN 1303, Grade 6. |
Suitability for use on fire resisting and/ or smoke control doorset | BS EN 1303, Grade 1. |
Corrosion resistance and temperature | BS EN 1303, Grade C. |
Security and drill resistence | BS EN 1303, Grade 2. |
Lock type | Euro cylinder. |
Material and finish | Matt nickel. Polished chrome. Matt black. Light bronze. Dark bronze. Hafele black. Manufacturer guidanceOther finishes available to special order. |
Keying | Master Key system to 100,000 differs with Trademark Protection. |
Sizes | 40 mm. 45 mm. 50 mm. |
Sustainability data
Material | Brass |
