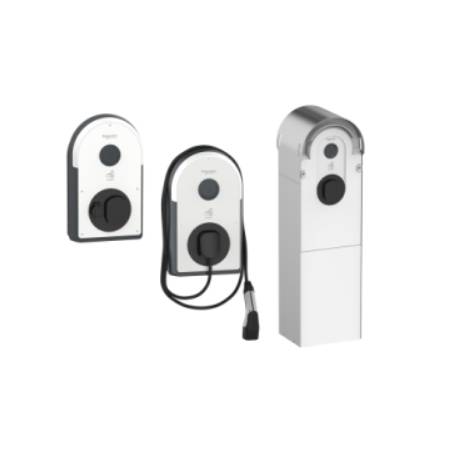

Evlink Pro AC - AC Electric Vehicle Charger

Verified by manufacturer 20 days ago

EVB3S07N4A

Schneider Electric Ltd Variant:

AC electric vehicle charger that provides highly reliable, flexible, and sustainable smart charging.

Jump to:
+44 (0)870 608 8608 Website

Application

  • AC electric vehicle charger suitable for providing reliable charging for efficient buildings.
  • Suitable for wall-mounting or mounting on a pedestal.

Description

EVlink AC charger provides highly reliable, flexible, and sustainable smart charging with reinforced safety to maximize uptime, ensuring a seamless user experience for drivers and installers for semi-public parking facilities in commercial and industrial buildings, corporate EV fleets and apartment blocks. Easy to install, operate, monitor, and maintain through digital capabilities and reinforced safety.

Features and benefits:

  • Enables highly reliable, flexible and sustainable smart charging for multifamily housing and buildings of the future.
  • Optimizes energy consumption.
  • Maximizes uptime and efficiency.
  • Ensures a seamless user experience for EV installers, operators and drivers.
  • Simple and intuitive to:
    • purchase,
    • install,
    • commission,
    • use,
    • operate,
    • maintain.
  • Robust products:
    • 100% tested and certified,
    • compliant with strict standards (ISO, IEC, etc.).
  • RCD type B EV or Asi and MNx (undervoltage tripping auxiliary) protection directly embedded in the charger.
  • Advanced connectivity:
    • mobile apps for commissioning,
    • remote monitoring,
    • smart charging,
    • OCPP 1.6 Json,
    • Modbus.
  • Flexibility:
    • scalable,
    • interoperable,
    • modular,
    • customizable look and feel.
  • Sustainability:
    • Green Premium™ label,
    • repairability.

General information

Color

Black

White

Finish

Smooth

Material

Metal

Plastic

Shape

Other

Length

153 mm

Width

317 mm

Height

529 mm

Warranty description

18 months

Uniclass

Pr_65_72_97_29 Electric vehicle charging pointsPrimary

CAWS

V90/445 Electric vehicle charging points

V90/590 Equipment

SKU Code

EVB3S07N4A

Specification data - Electric vehicle charging points

Classification data

Standards

To BS EN IEC 61851-1.

Charging mode

3.

Input voltage

230 V a.c. single-phase.

Input current

32 A.

Rated frequency

50 Hz.

Power output

7.4 kW.

Outlet type

T2S.

Mounting

Surface-mounted.

Guidance for specification option:

Wall-mounted.

Column-mounted.

Guidance for specification option:

On a pedestal.

Floor-mounted.

Guidance for specification option:

In a metallic enclosure wall-mounted or floor-standing.

Impact protection (minimum)

IK10.

Ingress protection (minimum)

IP55 (with T2S socket or with attached cable).
IP54 (with domestic socket).

Circuit protection

RDC-DD 6mA+RCD Type Asi 30mA+MNx.

Accessories

Not required.
3G/4G modem with antenna.

Guidance for specification option:

*To check availability, please contact Schneider Electric front offices.

ISO 15118 module.

Guidance for specification option:

*To check availability, please contact Schneider Electric front offices.

RFID badges.
Pedestal for 1 charging station.
Pedestal for 2 charging stations.
Plate to convert pedestal for 1 charging station to pedestal for 2 charging stations.

Integral accessories

Not applicable.

Sustainability data

Country of product manufacture

France

Material

Metal
Plastic
