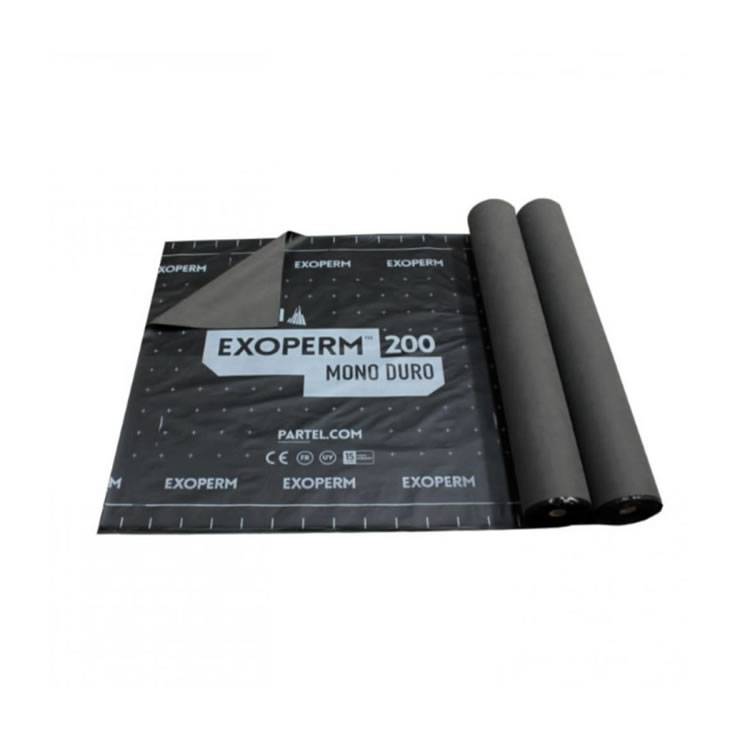

EXOPERM MONO DURO 200 - Fire Rated Breather Membrane - Fire-Resistant Breathable Monolithic

Name: EXOPERM MONO DURO 200 - Fire Rated Breather Membrane - Fire-Resistant Breathable Monolithic
Brand: PARTEL
SKU: bkuQHbsFWRj2ZMY8DEi2Bq

Verified by manufacturer today

PARTEL

Third party certifications:

DoP
Certificate type

Fire rated monolithic breather membrane suitable for wall and roof applications. Watertight, airtight and vapour permeable. Reaction to fire classification B-s1,d0. UKCA approved. CE approved.

Jump to:

+44 20 3740 1918 Website

Application

EXOPERM MONO DURO 200 is an external breather membrane designed for use on the cold side of insulation on facade wall and roof applications.

Suitable for:

Facades with open or closed joints
Timber and steel framed constructions
Warm, cold and hybrid roof applications
Pitched or flat roofs
Sarking boards

Description

EXOPERM™ MONO DURO 200 is an energy-efficient, diffusion permeable monolithic breather membrane consisting of a PES non-woven and innovative fabric, which provides long-lasting UV protection and increased fire resistance.

Features and benefits:

Reaction to fire classification B‐s1,d0 to BS EN 13501-1.
Fire rated and suitable for high rise constructions as per current Building Regulations.
UKCA & CE compliant to EN 13859‐1 (roofs) and EN 13859‐2 (walls).
High level of UV resistance 5000hr test.
Class W1 resistance to water penetration.
Highly vapour open with an Sd value of 0.12 m.
Airtight with an air permeability value of 0.01 m³/m²·h@50 Pa.
Weather tight.

General information

Color	Black
Finish	Coated
Material	Polyester
Length	50000 mm
Width	1500 mm
Warranty description	Ten year

Uniclass	Pr_25_57_10_94 Vapour-permeable sheetsPrimary
CAWS	H67/290 Vapour-permeable underlay H67/24 Vapour-permeable underlay H65/235 Vapour-permeable underlay H65/22 Vapour permeable underlay H64/307 Vapour-permeable underlay H64/22 Vapour-permeable underlay H62/3 Roof slating H62/235 Vapour-permeable underlay H61/235 Vapour-permeable underlay H61/22 Vapour-permeable underlay H60/235 Vapour-permeable underlay H60/22 Vapour-permeable underlay H51/110 Cladding H51/110 Cladding H20/155 Sheet cladding (attached to timber battens) H22/130 Breather membrane H21/130 Breather membrane H30/350 Breather membrane H31/280 Breather membrane H40/110 GRC cladding H42/115 Precast composite H42/110 Precast homogeneous H92/785 Breather membrane P10/320 Breather membrane H30/50 Breather membrane P10/65 Breather membrane H42/115 Precast composite H42/110 Precast homogeneous H20/10 Sheet cladding H21/20 Breather membrane H22/20 Breather membrane H31/55 Breather membrane H41/110 GRP single-skin cladding

Product range	Breather Membranes

Specification data - Vapour-permeable sheets

Standard	To EN 13859-1, EN 13859-2 and EN 13501-1.
Class (minimum)	W1.
Material	Specially coated polyester non-woven textile.
Form	Non-woven.
Weight (minimum)	215 g/m².

Sd value	To EN 13859-2, 0.12 m.
Vapour resistance	0.6 MNs/g.
Reaction to fire	To EN 13501-1, Class B-s1, d0.
Air permeability	To EN 12114, 0.01 m³/m²·h@50 Pa.
Tear resistance	MD/ CD to EN 13859-2, 210 N/ 300 N.
TensileStrength	MD/CD to 13859-2, 340 N/ 240 N/50mm ±30% (before ageing); 320 N/ 220 N/50mm ±30% (after ageing).
Elongation	MD/CD to 13859-2, 50 / 70% ±15% (before ageing); 40 / 60% ±15% (after ageing).
UV resistance	>Ten years.
