Fastwarm® Sticky Mat System
Verified by manufacturer 15 days ago
Length: 2 m/ Area: 1 m²
Length: 2 m/ Area: 1 m²

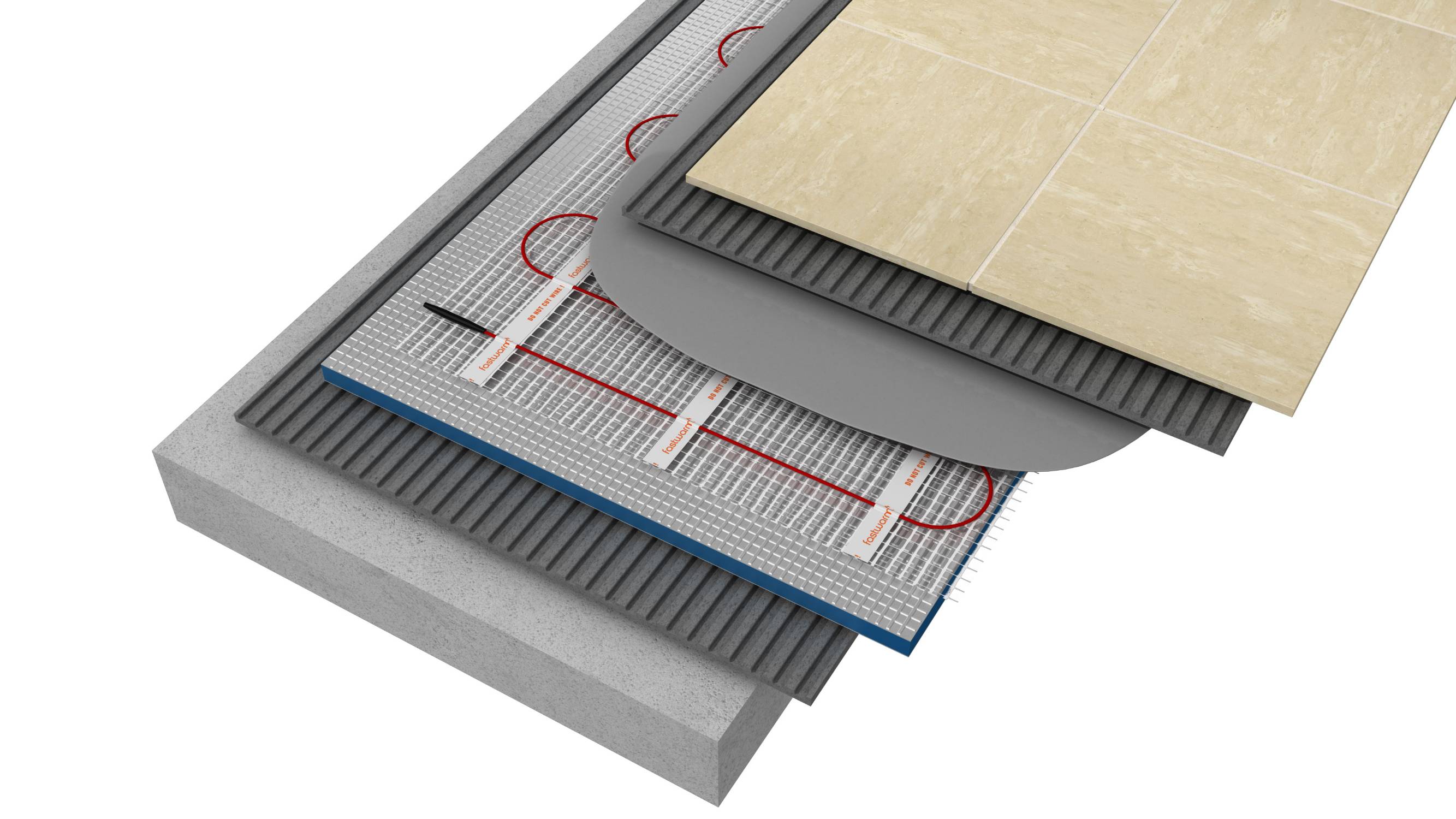

Fastwarm 150w heating mat kits are industry leading heating systems that can be used as a primary heat source under tiles, wood* or carpet * (when used with levellers)
Application
- Underfloor heating mat compatible with any shaped floor space with the mats designed for a quick and easy installation due to its versatility.
- Suitable for use in wet areas.
Description
Fastwarm heating mats comprise of the thinnest (2 mm) fluoropolymer (Teflon) coated, dual-core resistive heating cable on the market. The cables are evenly spaced at 100 mm, 65 mm or 50 mm intervals to provide an even heat distribution across the floor to suit the required heat output. The mat system allows for use in small confined areas (bathrooms and en suites) plus large areas, making fitting a Fastwarm Underfloor Heating Mat suitable for any DIY enthusiast.
Features and benefits:
- 2 mm thick cable adhered to our industry leading sticky mat which complies to IEC 60335 standards and is also UKCA approved.
- Evenly spaced Fluropolymer dual core heating elements which ensure consistent desired heat output.
- Combining the highest comfort level with maximum energy efficiency.
- Single point connection.
- No PVC used on heating element.
- Suitable for wet areas IPx7.
- Emits zero EMF (electromagnetic fields).
- Flexible and durable constructed cable.
General information
Color | White Red |
Finish | Other |
Material | Fibre-glass Polymer Guidance for specification option: Multi strand twin core conductor, fluoropolymer insulation (Teflon), earth braid, fluoropolymer insulation (Teflon). |
Shape | Other |
Length | 2000 mm 3000 mm 4000 mm 5000 mm 6000 mm |
Width | 500 mm |
Height | 2 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | T90/479 Underfloor electric heating mat T90/478 Underfloor electric heating cables |
Specification data - Electric sheet underfloor heating elements
Standards | To BS EN 60335-1 and BS EN 60335-2-96. |
Rating | 100 W/m².150 W/m².200 W/m². |
Area | 1 m². |
Cable | ⌀2 mm. |
Length | 2 m. |
Width | 500 mm. |
Resistance | Manufacturer guidanceDependent on rating. Insert requirements:
|
TotalWattage | Manufacturer guidanceDependent on rating. Insert requirements:
|
Voltage | 230 V. |
Sustainability data
Material | Fibre-glass Polymer Guidance for specification option: Multi strand twin core conductor, fluoropolymer insulation (Teflon), earth braid, fluoropolymer insulation (Teflon). |
Literature
Fastwarm Sticky Mat Install Manual
