Fastwarm® Under Carpet System
Verified by manufacturer 15 days ago
Length: 2 m/ Area: 1.0 m²
Length: 2 m/ Area: 1.0 m²

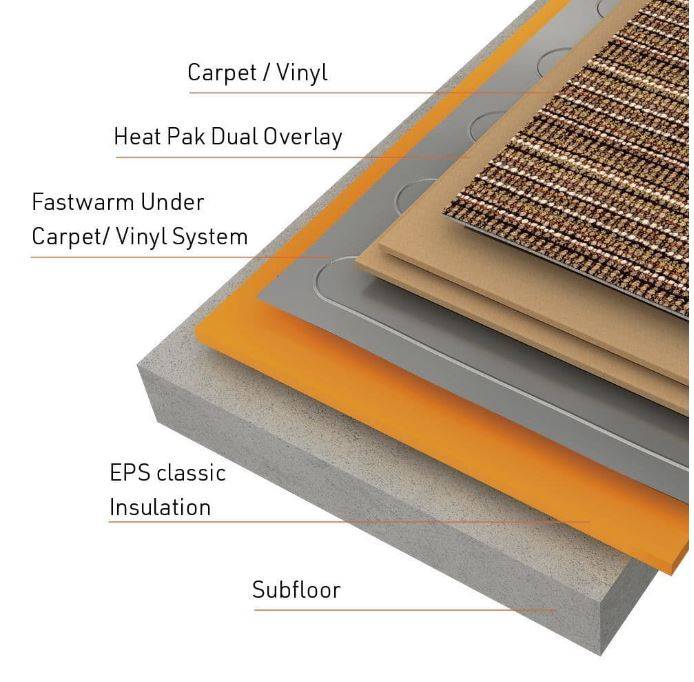

FastWarm Under Carpet / Vinyl heating mat kits are industry leading heating systems that can be used to warm your floors. (When used in conjunction with FastWarm 6mm EPS and HeatPak Dual Overlay.)
Application
- Electric floor heating suitable for installation below carpet or vinyl.
- Suitable for floating floor finishes.
- This system must be installed using Fastwarm® 6 mm EPS insulation board and HeatPak dual overlay.
Please note this system must not be installed in areas such as bathrooms, wetrooms or areas that may be subject to wet conditions.
Description
FastWarm Under Carpet / Vinyl heating mats comprise 2 mm fluoropolymer (Teflon) coated, dual-core resistive heating cables. The cables are encased between two layers of heat reflective aluminium foil providing even heat distribution. The cables are fixed to the mat at even spacing's, making fitting the FastWarm Under Carpet / Vinyl foil heating mat easy to install.
Features and benefits:
- 2 mm thick cable applied within industry leading foil matting which complies to IEC 60335 standards and is also UKCA approved.
- Combining the highest comfort level with maximum energy efficiency.
- Single point connection.
- No PVC used on heating element.
- Suitable for floating floor finishes.
- Emits Zero EMF (electromagnetic fields).
- Flexible and durable constructed cable.
- Constructed using a multi strand wire composite making them extremely durable and very strong.
General information
Color | Silver |
Finish | Foil |
Material | Aluminium |
Shape | Other Guidance for specification option: Roll. |
Length | 2000 mm 3000 mm 4000 mm 5000 mm 6000 mm |
Width | 500 mm |
Height | 2 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | M50/25 Carpeting M50/170 Carpeting M50/130 Carpet tiling M50/20 Sheeting M50/150 Sheeting T90/479 Underfloor electric heating mat T90/478 Underfloor electric heating cables M50/15 Carpet tiling |
Specification data - Electric sheet underfloor heating elements
Standards | To BS EN 60335-1 and BS EN 60335-2-96. |
Rating | 140 W/m². |
Area | 1.0 m². |
Roll length | 2 m. |
Roll width | 500 mm. |
Resistance | 378 0 hms. |
TotalWattage | 140 W. |
Voltage | 230 V. |
Sustainability data
Material | Aluminium |
