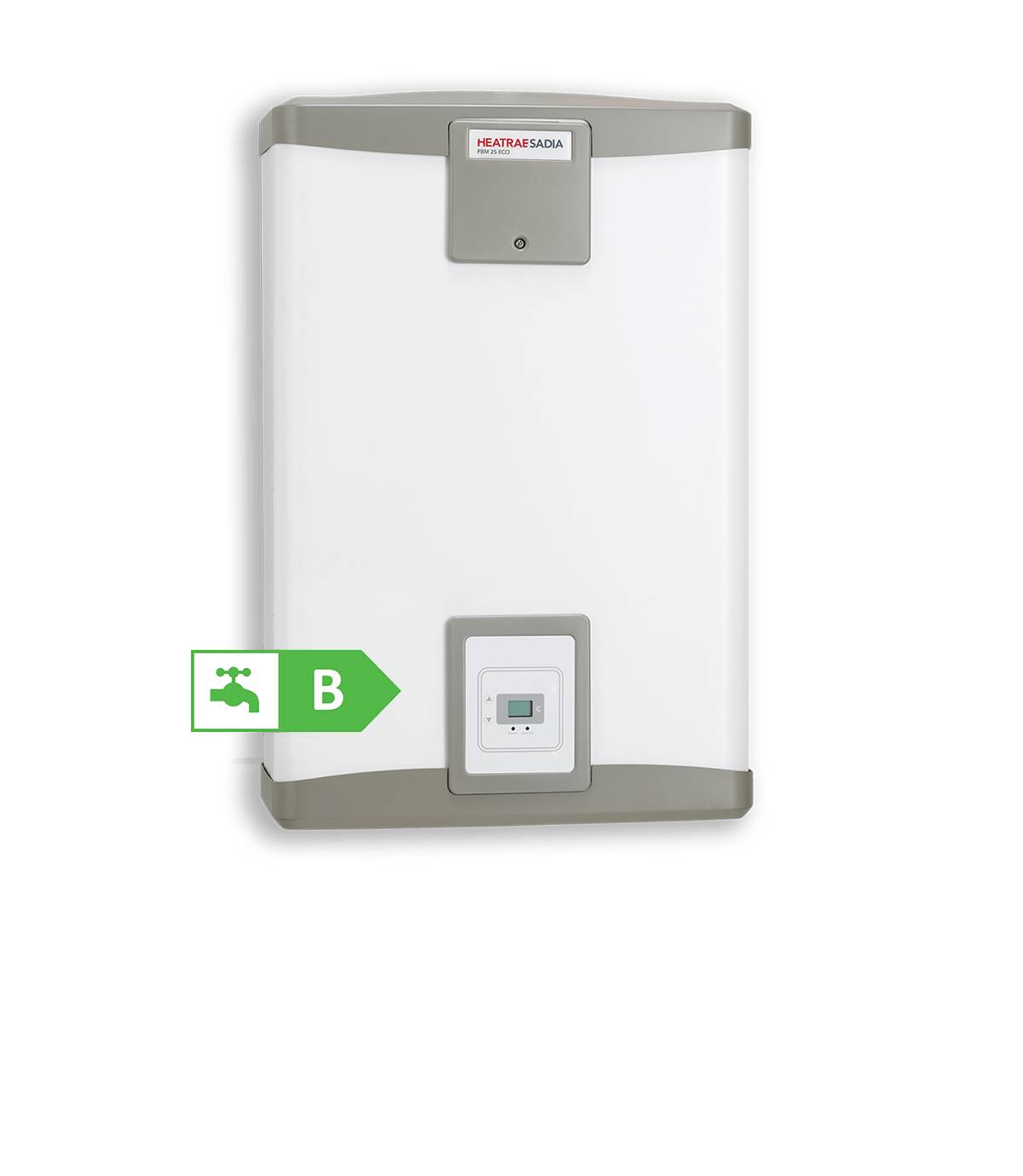

FBM 25 Eco 3 kW
Commercial vented water heaters with intelligent design and easy to use controls.
Suitable for commercial and large domestic applications, including cloakrooms, canteens, kitchens and bathrooms.
Developed specifically with the ErP directive in mind, the FBM Eco offers efficiency and high performance with its completely cistern-less design. It has universal bracketing, making it suitable either as a replacement to retrofit and replace an existing unit or as a first time installation.
The Eco Series Flatback Electric Water heater is a self-contained vented hot water solution particularly suitable for commercial or large domestic uses. The range is available in four sizes; each controlled remotely through BMS or at point of use, fully ErP compliant, and backed by a full five year guarantee.
Features and benefits:
Color | White Grey |
Finish | Enamelled |
Material | Metal |
Shape | Rectangle |
Length | 235 mm 276 mm 429 mm |
Width | 510 mm 609 mm 600 mm |
Height | 830 mm 882 mm 1221 mm 1021 mm |
Warranty description | Two year Five year Guidance for specification option: Inner container warranty. |
Uniclass | |
CAWS | S90/400 Storage water heaters, electric |
SKU Code | 95040300 |
GTIN/EAN | 5012496991903 |
Classification data | |
Standards | To BS EN 60335-1 and BS EN 60335-2-21. |
Third-party certification | KIWA-approved and Nemko (N-Mark) certified. |
Arrangement | Mains supply. |
Capacity | 25 L. |
Rating | 3 kW. |
Flow rate | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Casing finish | White stove-enamelled. |
Controls | Adjustable thermostat. |
Accessories | Not required. CT1 thermostatic blending valve - 95:970:357. CT2 pressure reducing valve - 95:970:358. |
Voltage | 230 V. Guidance for specification option: Electrical rating (kW): 2.8 kW at 230 V; 3.0 kW at 240 V. |
Connection | Push fit and straight. |
Connection sizes | 15 and 22 mm. |
Dimensions | 830 x 510 x 235 mm. Manufacturer guidanceHeight x width x depth. |
Weight | 15 kg (empty); 40 kg (full). |
Environmental performance | ErP rating: B. |
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Metal |
Recyclability | Manufacturer guidanceThe unit is partially recyclable:
|
Expected Life | 15 year |
