FD10 Swing Door Operator

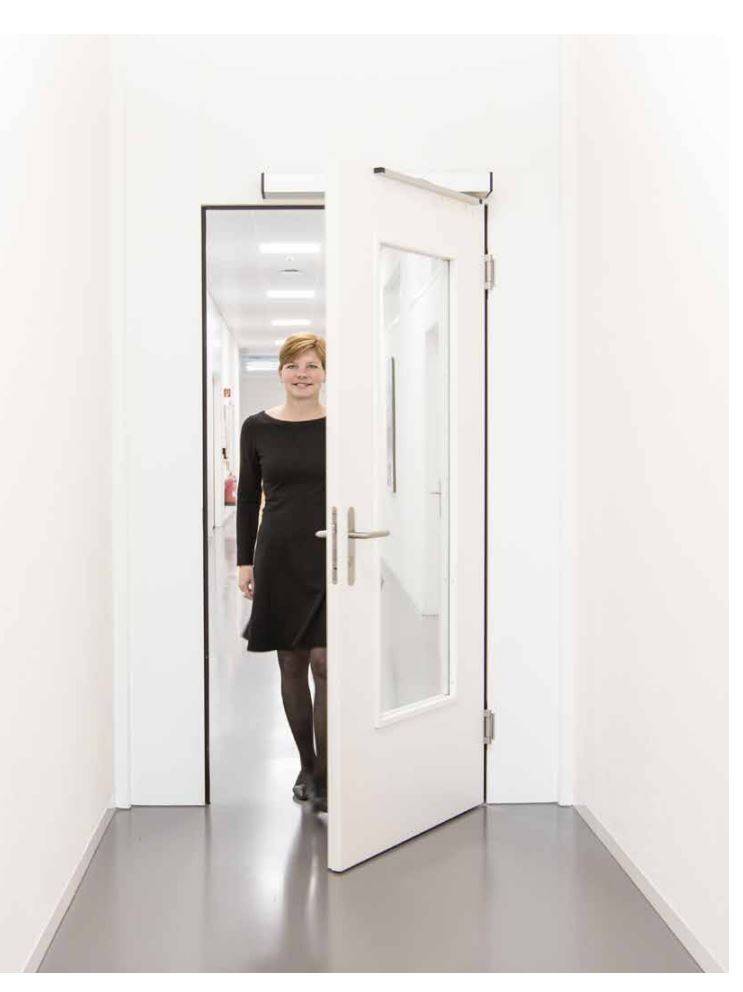

The Gilgen FD10 swing door operator is a suitable solution for the automation of internal door sets, with its sleek design and 60 minute fire rating this versatile operator fits seamlessly into the fabric of the building.

Compact and reliable drive mechanism for use in areas with heavy footfall. This low-noise electromechanical drive unit comes in an impressively sleek package. Its design is both robust and vandal-resistant, making it suitable for any location.

Offers spring force closing and adjustable closing EN 3-7, for different widths of door leaves in accordance with EN 1154.

Fully automatic or low energy operation complete with back check and adjustable hold open, transom mounted with standard rods/sliding rods fitted to door leaf.

Integrated INVERSE function- If required, the FD 10 can be configured to ‘Inverse’, in order for the door to always fail in the OPEN condition. This is especially suitable for smoke ventilation or emergency escapes.

Features and benefits:

• Compatible with single/two-leaf doors and interlock accesses.
• Controlled, spring-actuated closure with motor assistance.
• The drive mechanism has a built-in travel stop Freely selectable.
• Full Power and Low Energy functions in a single drive mechanism.
• Assisted-opening option, with servo function Terminals for connecting accessories such as locks, security/safety elements or operating controls.
• Voltage-free outputs for acknowledgements to, for example, the building management system (via relay PCB).
• Simple to set up and operate via the integrated graphic display screen.
• Software updates via USB interface to ensure a long service life.
• Built-in program selector for changes of operating mode.
• All-pole main switch for safe disconnection from the mains and easy reset by the customer.
• Commissioning with integrated display + joystick.
• Aluminium or stainless steel covering.
• Sliding rods / Standard rods.
• Integrated LCD control panel.
• TÜV approved and complies with the pertinent standards and requirements (e.g. EN 16005, DIN 18650).
• Tested and certified for use on 60 minute fire doors.
