Fibergrate® FGI-AM Resin Grating System - Walkway Grating
Verified by manufacturer 1 day ago
25.4 mm FGI-AM (rectangle mesh)
25.4 mm FGI-AM (rectangle mesh)

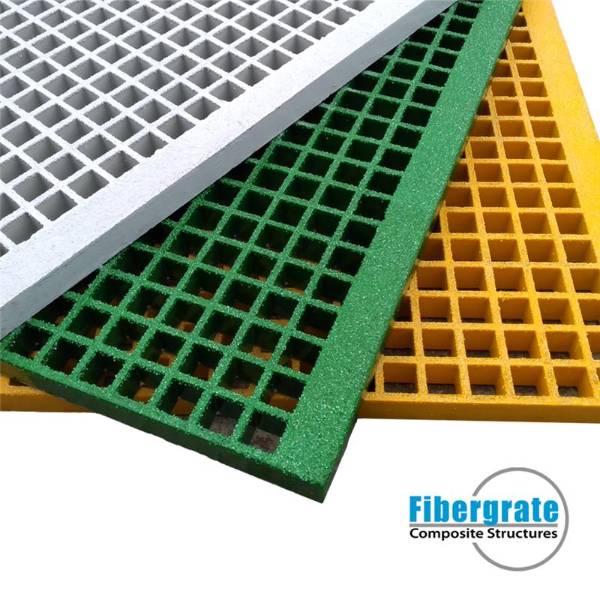

Glass fibre-reinforced plastic (GRP) moulded grating created using a proprietary resin system.
Application
Suitable for a range of applications for standard pedestrian traffic, specifically within the food and beverage industry.
Description
Glass fibre-reinforced plastic (GRP) moulded grating created using a proprietary resin system that has been successfully tested to inhibit the growth of bacteria and fungus that cause foul odors, discoloration, and mildew on the surface of the product that in some cases can degrade or corrode the product.
Features and benefits:
- United States Department of Agriculture (USDA) approvable.
- Anti-slip surface.
- Corrosion resistance - eliminates the need for sandblasting, scraping and painting.
- Extremely durable.
- Ergonomic.
- Low installation cost.
- Tested by certified laboratories and independent food processors.
- ASTM E84 flame spread rating index of 25 or less.
General information
Color | Green Grey Yellow Other |
Finish | Anti-slip Anti-microbial |
Material | Glass Reinforced Plastic (GRP) Composite Resin |
Shape | Rectangle |
Length | 2438 mm 3048 mm 3658 mm |
Width | 914 mm 1219 mm 1524 mm |
Height | 25 mm 38 mm 50 mm |
Warranty description | Three year |
Uniclass | |
CAWS | L30/45 Ramps/ walkways Q10/312 Footway gratings L30/460 Walkways |
Specification data - Glass fibre-reinforced plastics (GRP) moulded open mesh gratings
Classification data | |
Description | GRP moulded grating created using a proprietary resin system. |
Colour | Green. Guidance for specification option: RAL 6010. Grey. Guidance for specification option: RAL 7047. Yellow. Guidance for specification option: RAL 1003. Other. Guidance for specification option: Consult manufacturer and insert requirements. Any RAL or BS colour subject to extended lead time. |
Size | |
Length x width | 2438 x 1219 mm. Guidance for specification option: 8' x 4'. 3048 x 914 mm. Guidance for specification option: 10' x 3'. |
Depth | 25.4 mm. Guidance for specification option: 1". |
Slip resistance value – water wet (minimum) | Manufacturer's standard. |
Design | 25.4 x 101.6 mm mesh. 69% open area. Guidance for specification option: 1" x 4" mesh. |
Service temperature | -50 to +105°C. |
Fixing | 'M' clips and bolts. Other. Guidance for specification option: See manufacturer's literature for details. |
Minimum loadbearing capacity | Manufacturer's standard. Guidance for specification option: Note 14 mm depth option does not support load. Dependent on design and size specified, consult manufacturer's literature for details. |
Weight | 12.2 kg/m². Guidance for specification option: 2.5 lbs/sq.ft. |
Resin | Food-grade isophthalic (ISO) resin with with Microban® antimicrobial product protection. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
Material | Glass Reinforced Plastic (GRP) Composite Resin |
Recyclability | 0 |
Expected Life | 25 year Guidance for specification option: 25+ years (subject to traffic analysis). |
Literature
Fibergrate Food and Beverage
