Fibergrate Firewalk™ Pultruded Phenolic Grating - Walkway Grating
Verified by manufacturer 1 day ago
1-1/2” Deep I6015P-FW - Walkway
1-1/2” Deep I6015P-FW - Walkway
Certificate of Approval
Certificate type
Product Design Assessment
Certificate type
Fibreglass phenolic grating is a high-temperature-resistant alternative to metallic grating.
Application
Suitable for a wide range of offshore, marine, transportation, and industrial applications, including:
- Offshore platforms.
- Equipment skids.
- Workboats.
- Marine vessels.
- Access and wellhead platforms.
- Stairways.
- Refineries.
- Petroleum processing.
Description

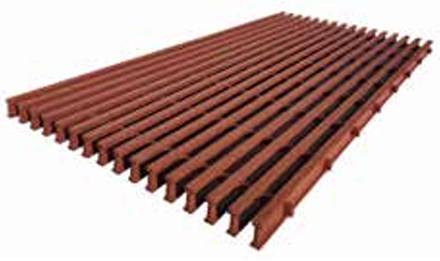

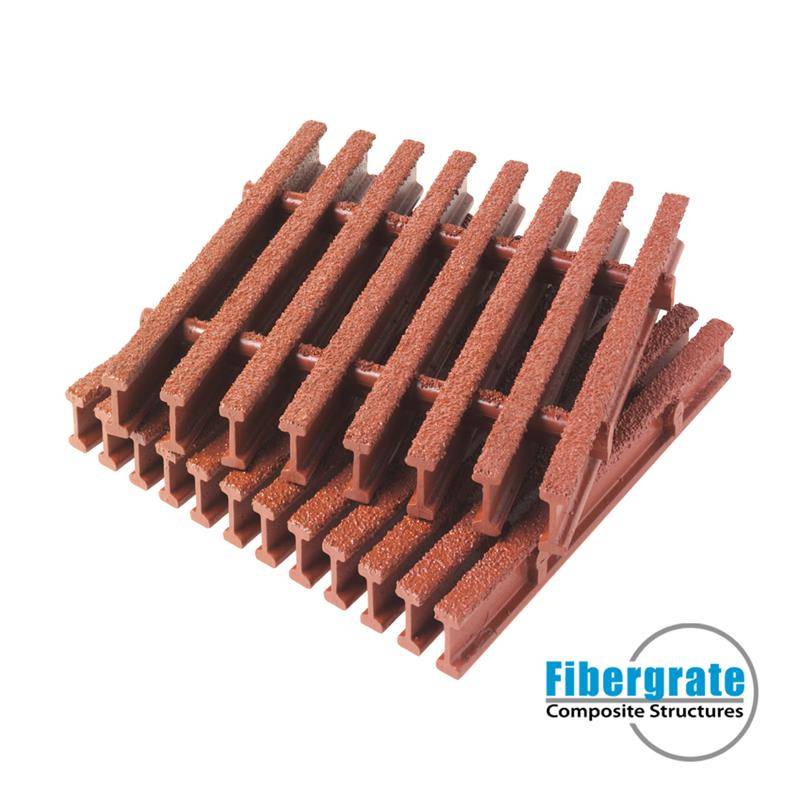

Safe-T-Span® Firewalk™ phenolic grating, manufactured by Fibergrate Composite Structures, is an alternative to maintenance-intensive metallic grating. It is suitable for applications where conventional pultruded grating cannot be used and can withstand high temperatures and direct flame while maintaining structural integrity.
Features and benefits:
- Made from fibreglass.
- Tested in accordance with ASTM F3059-18.
- Flame-resistant with low smoke and toxic emissions.
- Durable and corrosion resistant.
- Easy to clean using a high-pressure washer.
- High strength to accommodate heavier weights.
- Slip-resistant for safe footing and adhesion.
- Eliminates the need for heavy lifting equipment.
General information
Color | Brown |
Finish | Anti-slip |
Material | Fibre-glass Glass Reinforced Plastic (GRP) |
Shape | Rectangle |
Length | 3048 mm 3657.6 mm 6096 mm 7315.2 mm Bespoke |
Width | 914.4 mm 1219.2 mm Bespoke |
Height | 38 mm |
Warranty description | Three year |
Uniclass | |
CAWS | Q10/312 Footway gratings L30/45 Ramps/ walkways L30/460 Walkways |
SKU Code | I6015P-FW |
Specification data - Glass fibre-reinforced plastics (GRP) moulded open mesh gratings
Classification data | |
Standard | To BS 4592-6. |
Colour | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Size | |
Length x width | 3048 x 914.4 mm. 3657.6 x 914.4 mm. 6096 x 914.4 mm. 7315.2 x 914.4 mm. 3048 x 1219.2 mm. 3657.6 x 1219.2 mm. 6096 x 1219.2 mm. 7315.2 x 1219.2 mm. |
Depth | 38.1 mm. Manufacturer guidanceLoad bar depth. |
Slip resistance value – water wet (minimum) | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Spacing | 38.1 mm. Manufacturer guidanceLoad bar spacing. |
Design | Manufacturer guidanceConsult manufacturer and insert requirement. Open area possible to 60%. |
Fixing | Stainless steel R clip assembly. Stainless steel M clip assembly. Stainless steel El clip assembly. |
Weight | 1.68 kg. Guidance for specification option: Per square feet. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
Manufacturing plant location | |
Material | Fibre-glass Glass Reinforced Plastic (GRP) |
Expected Life | 20 year |
Product certifications
Certification type
Certificate of Approval
DNV - Type Approval Certificate: TAF000003C
Product Design Assessment
Product Design Assessment: 23-2442612-PDA
Literature
Literature type
Fibergrate UK Phenolic Datasheet
38mm PULTRUDED GRATING PANEL

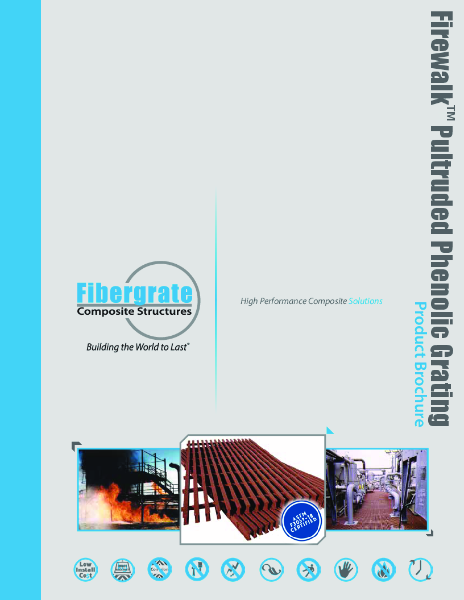

Offshore Brochure
Case studies
Mexico Oil Refinery Reactor - Pultruded Phenolic Grating
