Fibergrate® Modular GRP Handrail - GRP Handrail
Verified by manufacturer today

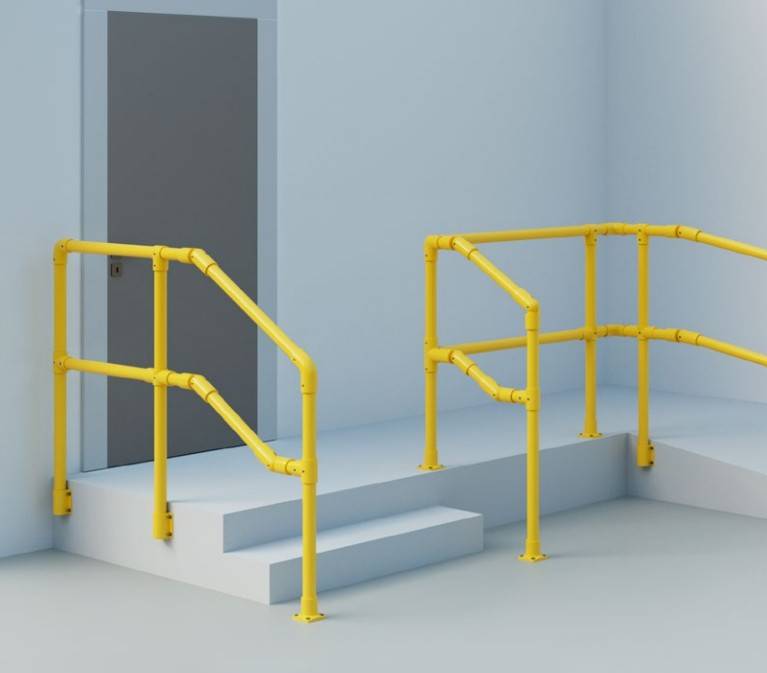

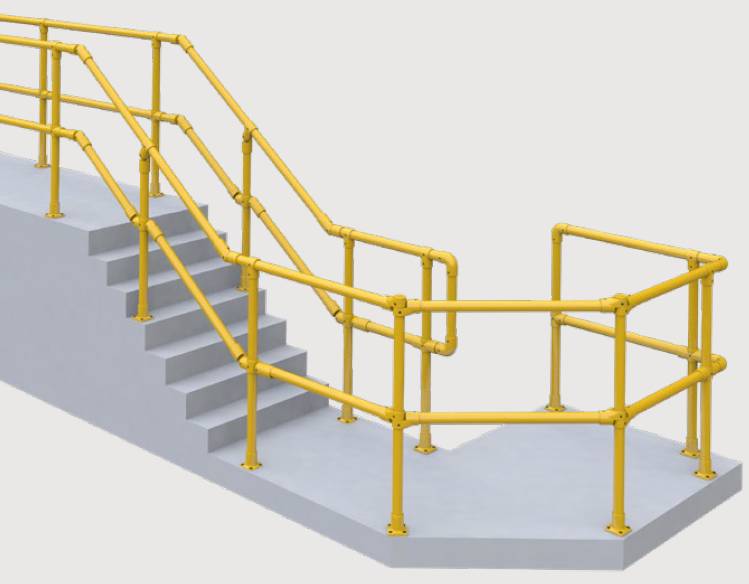

Glass fibre-reinforced plastic (GRP) modular handrail.
Application
Suitable for a range of applications in the transportation, utilities and construction sectors, including:
- Platform walkways.
- Gangways.
- Pedestrian bridges and steps.
- Worker access to machinery.
Description
Glass fibre-reinforced plastic (GRP) modular handrail.
GRP modular handrail systems are a low-cost and long-lasting alternative to traditional metallic materials. They have low installation and maintenance costs, exceptional corrosion and impact resistance, and high strength-to-weight ratios.
The handrail passed an independent inspection test and was determined to comply with BS 4592-0: Industrial flooring, stairs, and handrails for general duty (0.36 kN/m). The handrail also complies with BS 14122-3 Stairs, Stepladders, and Guardrails.
The moulded fittings are made with a proprietary sheet moulding compound that contains chopped E glass fibre, isophthalic polyester resin, and mineral filler.
Features and benefits:
- Easy to install.
- Excellent corrosion and weather resistance.
- Lightweight.
- Low thermal conductivity.
- Non-conductive.
- Radar transparent.
- Chemical resistance.
- Available in high contrast yellow.
Includes a range of components dependent on design, including:
- Elbows.
- Base foot.
- Three and four-way connections.
- P-joints.
- Side fit joints.
- Tubes.
- End caps.
General information
Color | Yellow |
Material | Glass Reinforced Plastic (GRP) Composite Resin Guidance for specification option: Isophthalic polyester resin. Isophthalic polyester |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Three year |
Uniclass | |
CAWS | L30/70 Proprietary handrails L30/580 Proprietary handrails |
SKU Code | FR-120E-YW, FR-3WC-YW, FR-4WC-YW, FR-90E-YW,FR-BF-BOLT, FR-BF-YW, FR-CF-FIX, FR-IUJ-YW, FR-L3W-YW, FR-PJ-YW, FR-S3W-YW, FR-S4W-YW, FR-SFJ-YW, FR-T5M-YW, FR-U2W -YW, FR-U3W-YW, FR-U4W-YW, FR-TEC-YW |
Specification data - Fibre-reinforced polymer handrails
Classification data | |
Diameter | Manufacturer guidanceConsult manufacturer and insert requirements. |
Cross section | Circular. |
Colour | Yellow. |
Accessories | |
Materials generally | To match handrail. |
Adapters and panel clips | Manufacturer's standard. |
Brackets | Manufacturer's standard. |
Baseplates and covers | Base foot, FR-BF-YW. |
End caps | Tube end cap, FR-TEC-YW. |
Angles and tees | 90° elbow, FR-90E-YW. 120° elbow, FR-120E-YW. |
Design | Manufacturer guidanceInsert drawing/ size requirements. Components to be supplied as required based on design. |
Minimum loadbearing capacity | 0.36 kN/m. Pass according to BS 4592-0 and BS EN 14122-3. |
Resin | Isophthalic (ISO) resin. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom Manufacturer guidanceAlso China, Mexico and the USA. |
Country of product manufacture | United Kingdom Manufacturer guidanceAlso China, Mexico and the UK. |
Manufacturing plant location | |
Material | Glass Reinforced Plastic (GRP) Composite Resin Guidance for specification option: Isophthalic polyester resin. Isophthalic polyester |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | 20 year Guidance for specification option: 20+ years in typical industrial environments. |
Case studies

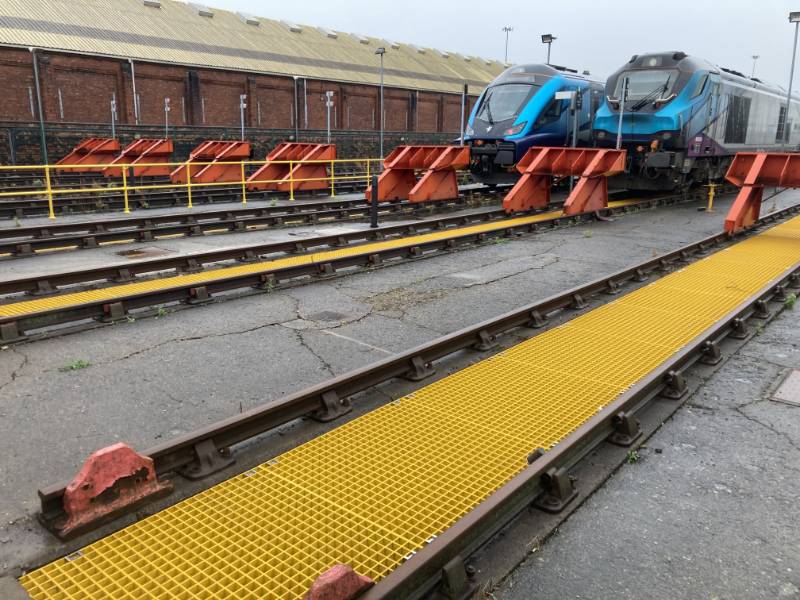

Manchester Train Depot - Handrail & Walkways
