Fibergrate® Riser System - GRP Service Riser
Verified by manufacturer today

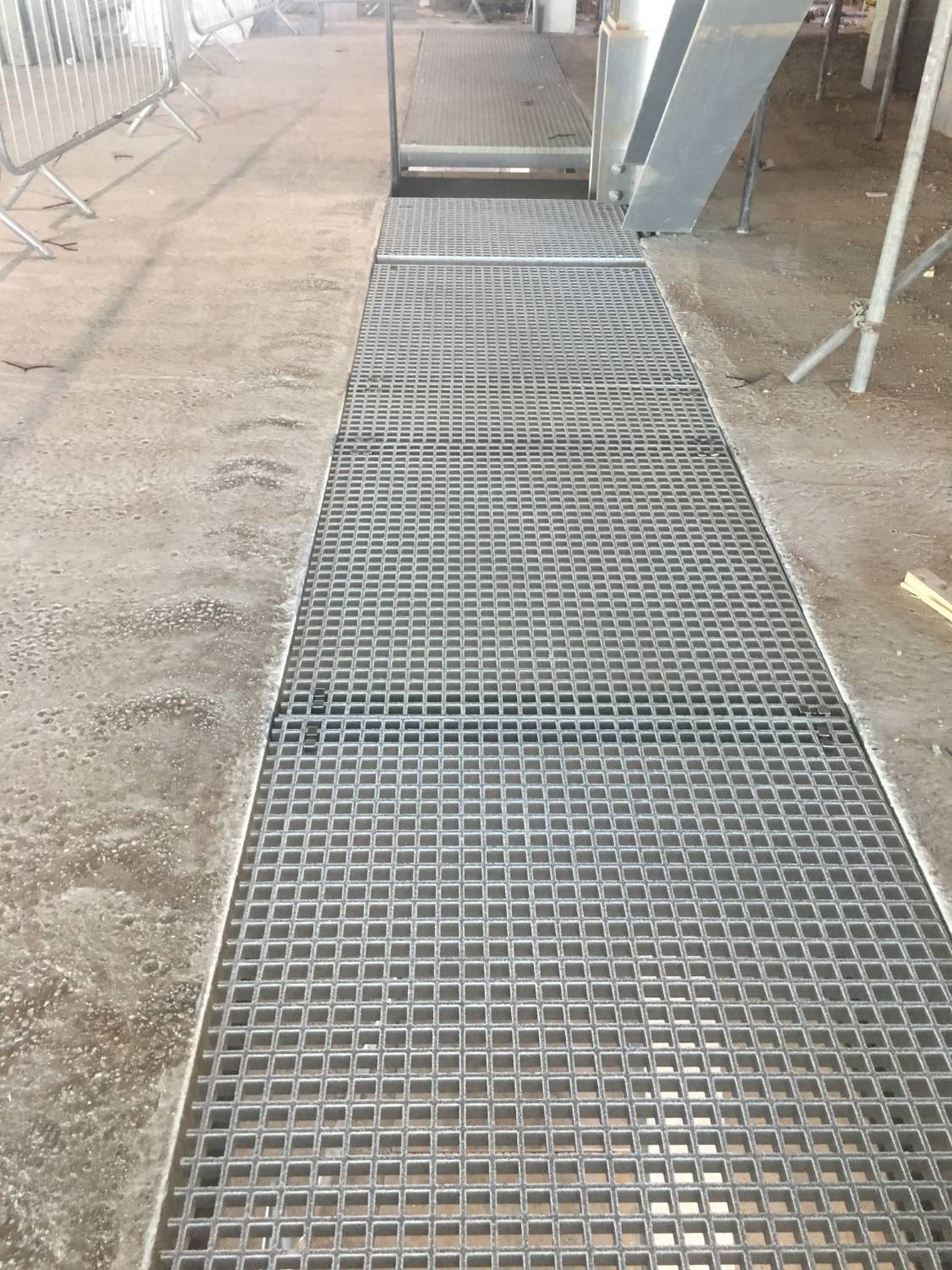

Open Mesh Grating Riser
Open Mesh Grating Riser
Glass fibre-reinforced plastics (GRP) service riser grating.
Application
Suitable for service riser applications.
Description
Glass fibre-reinforced plastics (GRP) service riser grating.
The GRP Riser System is constructed to allow for easy fabrication either on site prior to installation, or at the factory if required. If fabricating on site, the GRP Riser Grating can be easily cut using standard cutting tools, and no hot works are required.
The system can either be cast into concrete, or retro-fitted to riser voids at a later date. Additional supports can be provided if required using Fibergrate GRP Pultruded profiles such as angles, channels and beams.
Features and benefits:
- Excellent strength-to-weight ratio.
- Long maintenance-free service life.
- Impact resistant.
- Fire retardant.
- Non-conductive.
- Flexible installation.
- Chemical resistance.
- Corrosion resistance.
- Non-sparking.
General information
Color | Other |
Finish | Anti-slip |
Material | Glass Reinforced Plastic (GRP) Composite Resin |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L35/470 GRP components |
Specification data - Glass fibre-reinforced plastics (GRP) moulded open mesh gratings
Classification data | |
Colour | Manufacturer guidanceDependent on grating specified. Consult manufacturer and insert requirements. Any RAL or BS colour subject to extended lead time. |
Size | |
Length x width | Manufacturer guidanceConsult manufacturer and insert requirements. |
Depth | 38 mm. 50 mm. |
Slip resistance value – water wet (minimum) | Manufacturer's standard. Guidance for specification option: Dependent on grating specified. Consult manufacturer for details. |
Design | Manufacturer guidanceFibergrate offer a full detailed design service to allow for support of grating to accommodate service penetrations at a later date. This can be designed in conjunction with the relevant M&E contractors to aid installation and minimize future required alterations. Consult manufacturer for details. |
Fixing | 'M' clip/ saddle clip. Panel joining clip. Fixing clamp. Guidance for specification option:
Manufacturer guidanceSupplied as required based on design. |
Type | Open mesh grating. |
Structural support | Not required. GRP I-Beam Supports, 152 x 76 mm. GRP I-Beam Supports, 152 x 152 mm. GRP I-Beam Supports, 203 x 203 mm. Other. Guidance for specification option: Other supports available to suit design, consult manufacturer and insert requirements. Manufacturer guidanceFor larger risers, or where there are to be large service cut-outs, additional structural supports such as GRP I-Beams are used. |
Perimeter trim | Not required. Perimeter angle, 50 mm. Perimeter angle, 75 mm. Perimeter angle, 100 mm. |
Accessories | Not required. Steel/ GRP cleats. Guidance for specification option: Available for fixing beams to the riser perimeter. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom Manufacturer guidanceAlso Mexico, China, India and USA. |
Country of product manufacture | United Kingdom Manufacturer guidanceAlso Mexico, China, India and USA. |
Manufacturing plant location | |
Material | Glass Reinforced Plastic (GRP) Composite Resin |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | 25 year |
Case studies
Barclays Technology Centre Renovation - Access Solutions

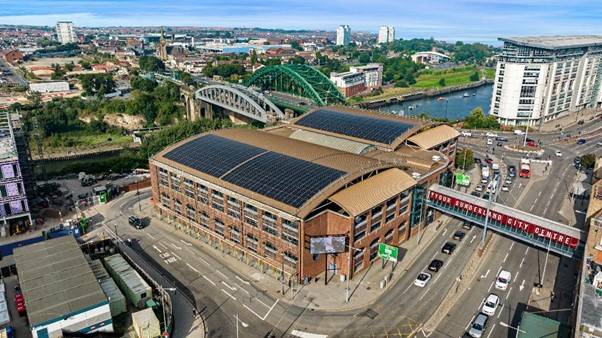

St Mary's Car Park - Risers
