Fibergrate® Solid Top GRP Grating - Walkway Grating
Verified by manufacturer today
FGS28 - 28 mm Solid Top
FGS28 - 28 mm Solid Top

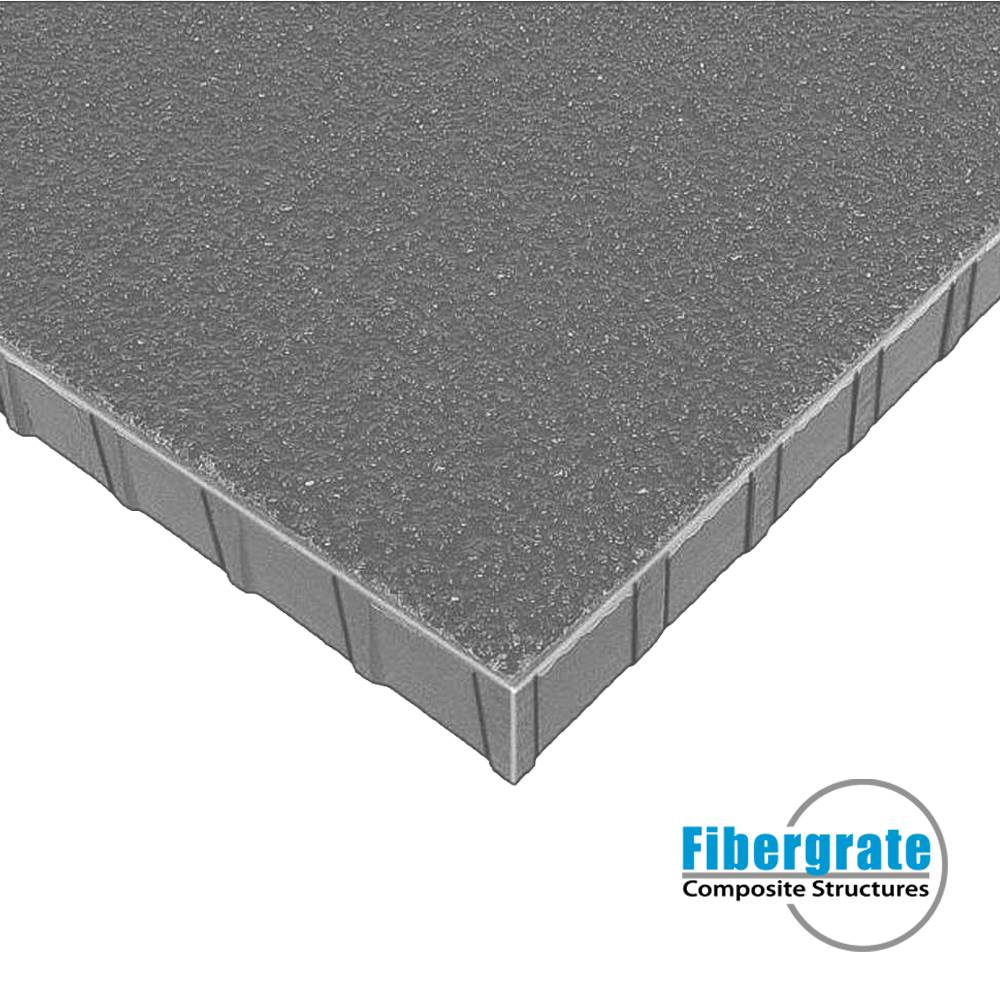

Glass fibre-reinforced plastic (GRP) solid top walkway grating.
Application

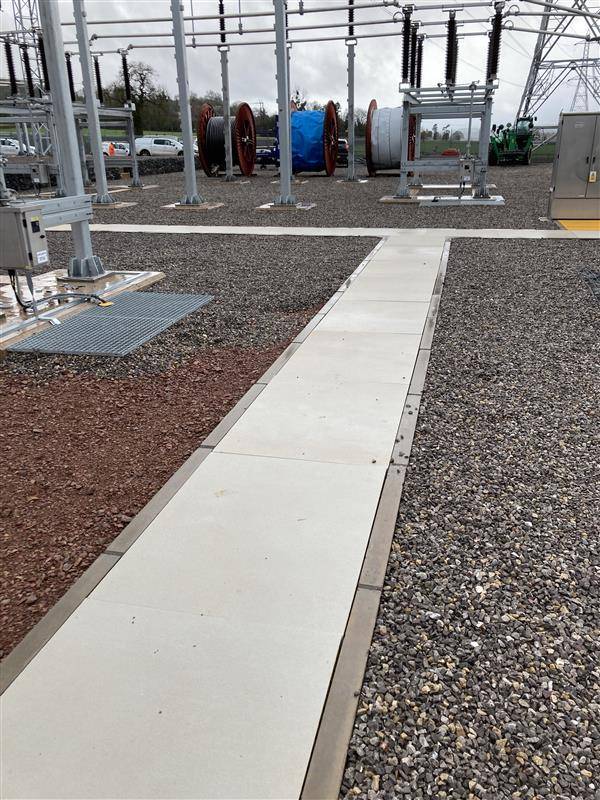

Suitable for a range of applications for standard pedestrian traffic, including:
- Walkways.
- Gullies.
- Trenches.
- Cooling towers.
- Overhead gantries.
- Railway crossing points.
Description
Glass fibre-reinforced plastic (GRP) solid top walkway grating.
An anti-slip, lightweight, strong and durable grating, making it the ideal choice for a wide variety of applications and environments. It is considerably lighter than concrete and allows significant savings on installation time, transport costs and labour. Solid Top Grating has exceptional advantages including rigidity, shock resistance and no permanant deformation after overloading.
These factors provide excellent mechanical strength and safety in marine and industrial environments. Also, the GRP Solid Top Grating is a useful alternative to standard gratings, as there are no gaps for items to fall through.
Features and benefits:
- Extremely durable.
- Impact resistant.
- Anti-slip surface.
- Fire retardant.
- Chemical resistance.
- Corrosion resistance.
- Lightweight.
- Low maintenance.
- Non-conductive.
- Non-magnetic.
- Tested in accordance with BS 4592-0.
General information
Color | Grey Other |
Finish | Anti-slip Guidance for specification option: Solid top with grit. |
Material | Glass Reinforced Plastic (GRP) Composite Resin Isophthalic polyester |
Shape | Rectangle |
Length | 3660 mm Bespoke |
Width | 1220 mm Bespoke |
Height | 28 mm 41 mm 54 mm Bespoke |
Warranty description | Three year |
Uniclass | |
CAWS | L30/45 Ramps/ walkways Q10/312 Footway gratings L30/460 Walkways |
SKU Code | FGS28 |
Specification data - Solid glass fibre-reinforced plastics (GRP) plates
Classification data | |
Description | GRP solid top walkway grating. |
Colour | Grey. Guidance for specification option: RAL 7047. Other. Guidance for specification option: Consult manufacturer and insert requirements. Any RAL or BS colour subject to extended lead time. |
Size | |
Length x width | 3660 x 1220 mm. Bespoke size. Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidance
|
Depth | 28 mm. Manufacturer guidanceDepth tolerances: +/- 1.5 mm. |
Slip resistance value – water wet (minimum) | PTV of 67. Guidance for specification option: Slip resistance value – dry: PTV of 72. |
Design | 38 x 38 mm mesh with solid top. |
Service temperature | -50 to +105°C. |
Fixing | Channel clamp. J-clamp. Dome fixing (WLP). Manufacturer guidanceSee manufacturer's literature for details. |
Minimum loadbearing capacity | Manufacturer's standard. Guidance for specification option: Dependent on design and size specified, consult manufacturer's literature for details. |
Weight | 16.5 kg/m². |
Resin | Isophthalic (ISO) resin. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom Manufacturer guidanceAlso India, Mexico, China and USA. |
Country of product manufacture | United Kingdom Manufacturer guidanceAlso India, Mexico, China and USA. |
Manufacturing plant location | |
Material | Glass Reinforced Plastic (GRP) Composite Resin Isophthalic polyester |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | 20 year Guidance for specification option: 20+ years (subject to traffic analysis). |
