Fire Alarm Interfaces - Loop Powered Interfaces

Name: Fire Alarm Interfaces - Loop Powered Interfaces
Brand: Gent
SKU: pWA1HnyhSdPSLdNRE9pD2B

Verified by manufacturer 6 days ago

Four Channel Interface (Input/ Output) (No Enclosure)

Gent

Product certifications:

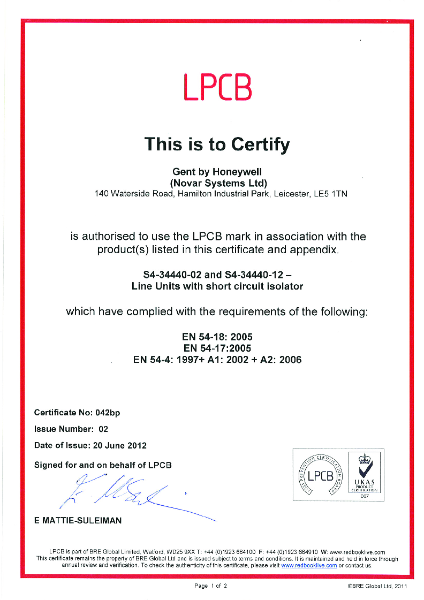

LPCB Certification
Certificate type

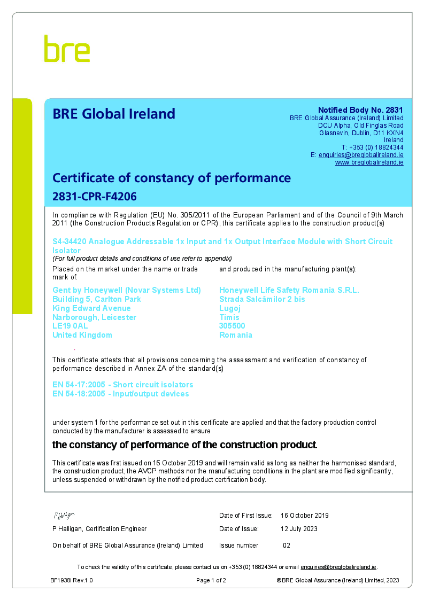

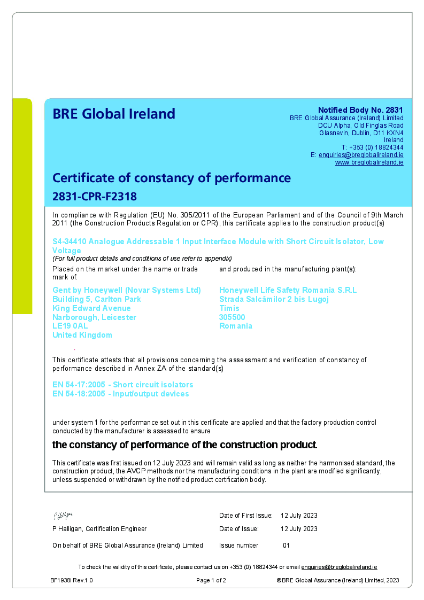

BRE Certificate
Certificate type
BRE Certificate
Certificate type
BRE Certificate
Certificate type

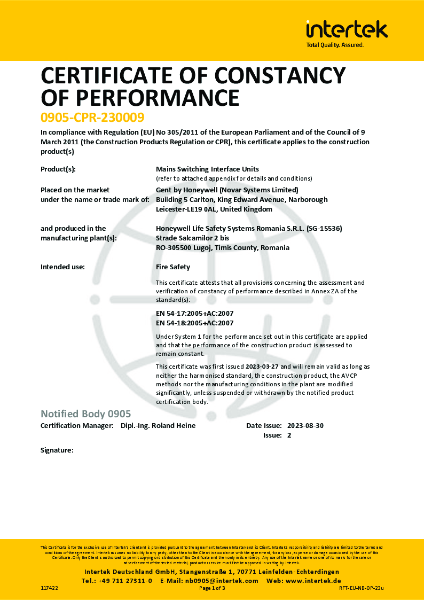

Intertek
Certificate type

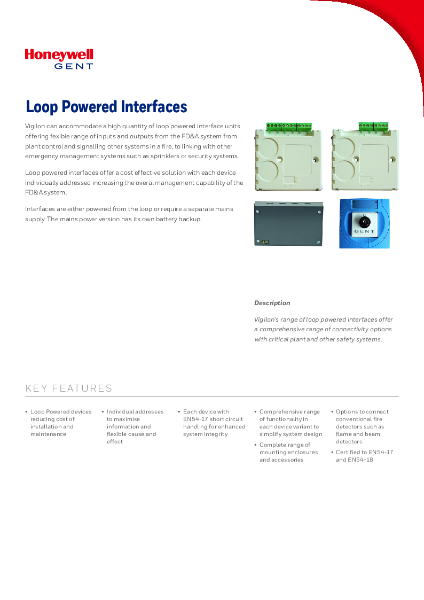

Vigilon’s range of loop connected interfaces offer a comprehensive range of connectivity solutions for the control of critical plant and other safety systems in the event of an emergency.

Jump to:

+44 (0) 203 4091779 Website

Description

Vigilon can accommodate a high quantity of loop connected interface units offering flexible range of inputs and outputs from the FD&A system from plant control and signalling other systems in a fire, to linking with other emergency management systems such as sprinklers or security systems.

Loop powered interfaces offer a cost effective solution with each device individually addressed increasing the overall management capability of the FD&A system.

Interfaces are either powered from the loop or require a separate mains supply. The mains power version has its own battery backup.

Features and benefits:

Loop powered devices reducing cost of installation and maintenance.
Individual addresses to maximise information and flexible cause and effect.
Each device with EN 54-17 short circuit handling for enhanced system integrity.
Comprehensive range of functionality in each device variant to simplify system design.
Complete range of mounting enclosures and accessories.
Options to connect conventional fire detectors such as flame and beam detectors.
Certified to EN 54-17 and EN 54-18.

General information

Color	Grey Blue
Finish	Smooth
Material	Plastic
Shape	Square Rectangle

Uniclass	Pr_75_80_30_28 Fire alarm input and output modulesPrimary
CAWS	W90/125 Fire detection and alarm systems in non-domestic premises

SKU Code	S4-34450

Specification data - Fire alarm input and output modules

Classification data
Standards	To EN 54-17 and EN 54-18.
Third-party certification	LPCB-approved.
Device type	Four channel input/ output module.
Mounting arrangement	- Manufacturer guidance Complete range of mounting enclosures and accessories. Consult manufacturer and insert requirements.
Enclosure	-
Ingress protection (minimum)	No enclosure.
Material	ABS plastics.
Colour	Grey.
