Fire Curtain - Fibreroll E120 - EW20
Verified by manufacturer 2 days ago
dhf certificate
Certificate type
Two Hour Fire and Radiant Heat Resisting Curtain.
Application
Applications Include:
Any internal application where fire compartmentation is required, but is ideally suited for:
Retail Malls, Offices, Receptions/ Foyers, Lift Lobbies/ Lift Doors, Open-plan Private Residencies.
Performance Characteristics:
Resistance to fire: E120 classifications.
Radiation control: EW15 and EW20 (dependent on opening configuration).
Fixing: Rigid (blockwork) structures.
Fire: Tested to EN 1634-1 in accordance with EN 13501-2, EN 15269.
Key Attributes:
Fire-rated curtain.
CE marked option.
Compact and lightweight design.
Bespoke manufacture to suit individual openings.
Range of controls.
Description
Bolton Gate Company, the acknowledged leader in the field of rolling fire door technology, are pleased to offer the Fibreroll range of fire-rated curtains.
These fire curtains are specifically designed to provide fire compartmentation and a protected means of escape, all within a compact, aesthetically pleasing yet robust and reliable system.
Utilising a fully tested woven glass fabric with stainless steel wire reinforcement, the Fibreroll E120 Rolling Fire Curtain provides up to two hours fire integrity between fire compartments.
Operation
Electric operation is by means of a tubular motor suitable for connection to a 230-volt nominal single-phase supply with gravity failsafe closure in a fire condition.
A control panel is provided with the facility for connection of a normally closed volt-free contact from the Client's fire alarm system. A battery is included to prevent unwanted closing of the curtain in case of power failure.
The curtain will automatically descend upon receipt of the fire signal and retract once removed.
If the curtain system is to be used on an escape route, only local heat detection can be used. This can be accommodated by our operating controls.
Curtain
Specially reinforced and coated fibreglass material which is designed to withstand temperatures more than 1000 degrees C.
Bottom Rail
A steel bottom rail is attached to provide rigidity and act as a weight to assist closure.
Side Guides
Manufactured from galvanized steel and formed into a slimline profile, which is prepared for bolting to the opening structure.
Roller
The roller comprises a suitable diameter steel tube in which the tubular motor is fitted at one end and steel shafts/ discs at the other.
Endplates
Galvanized steel endplates are provided with integrated angles to simplify installation.
Coil Casing
The roller is covered by a galvanized steel casing, which also acts as a fire seal at the head.
Finish
The curtain is supplied in a neutral grey colour with the side guides, bottom rail, and coil casing all supplied in a standard galvanized finish.
Maximum Sizes
E120 Unlimited width x 6000 mm high
E120/EW15 Up to 6000 mm wide x 6000 mm high
E120/EW20 3000 mm wide x 3000 mm high
Please discuss size availability of E120/EW15 with Bolton Gate Company's technical sales team.
Weight
Curtain 0.78 kg/m² approx.
Barrel/ Casing 30 kg/m approx.
Options
- Sounder beacon during closing.
- Voice warning during closing.
- Emergency retract via UPS and push button on one or two sides.
- Two-stage or delayed descent.
- Obstruction warning using light curtain or photocell with delayed timer and sounder.
- Side guides, bottom rail and coil casing supplied with polyester powder-coated finish to alternative RAL colour from standard range.
- Local heat detector.
General information
Color | Grey |
Finish | Galvanized Powder-coated Textured Manufacturer guidanceSide guides, bottom rail and coil casing supplied with polyester powder coated finish to alternative RAL colour from standard range. |
Material | Steel |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke Guidance for specification option: Bespoke sizes. Single roller - maximum 5000mm wide Multiple rollers - maximum width is unlimited |
Height | Bespoke Guidance for specification option: Bespoke sizes. Single roller - maximum 8000mm high Multiple rollers - maximum 6000mm high |
Warranty description | One year |
Uniclass | |
CAWS | L20/610 Roller shutters/ curtains |
Product range |
Specification data - Vertical active fire curtain barriers
Classification data | |
Standards | Tested to EN 1634-1 and EN 1634-3 all in accordance with EN 13501-2, EN 15269-11. These active fire curtains are CE marked all in keeping with BS EN 13241 and EN 16034. |
Test standards | Vertical to BS EN 1634-1 and -3. |
Size | Manufacturer guidanceInsert requirement. Maximum sizes: E120: Unlimited width x 6000 mm high. E120 EW15: Up to 6000 mm wide x 6000 mm high. E120 EW20: 3000 mm wide x 3000 mm high. Consult manufacturer for size availability of E120 W15. |
Performance | |
Pressure and impact | Manufacturer's standard. |
Durability class | Manufacturer's standard. |
Fire resistance | E120. E120/EW15. E120/EW20. |
Deployment | Two stage. Delayed descent. |
Activation | In a fire condition, activation is initiated by a normally closed volt free contact from the fire alarm system or, where on a fire exit route, local heat detector. Closure is by gravity with a controlled descent. |
Accessories | None. Emergency retract. Local heat detector. Obstruction warning (via light curtain). Sounder beacon. Two-stage descent. Voice warning. |
Execution | Installing active fire curtain barrier assemblies. |
Colour | Galvanised Steelwork. PPC Option Available. |
Fixing | Face-fixed. Soffit-fixed. Suspended (to a maximum of 500 mm). Manufacturer guidanceBoth flexible and rigid structures. |
Weight | Curtain: 0.78 kg/m², Barrel/casing: 30 kg/m² (approx). Guidance for specification option: Approximately. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Steel |
Recyclability | 50% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | Ten year |
Product certifications
Literature

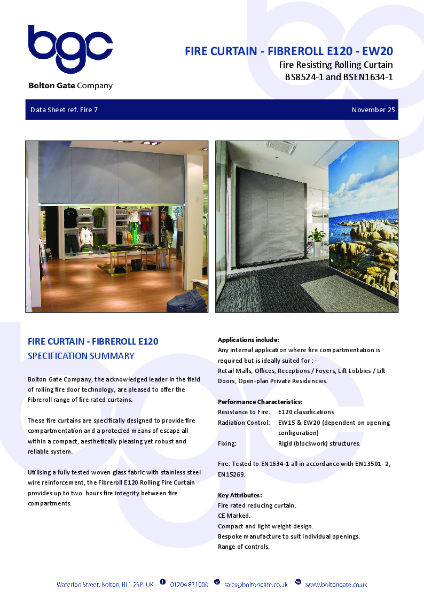

Fire Curtain - Fibreroll E120 - EW20
