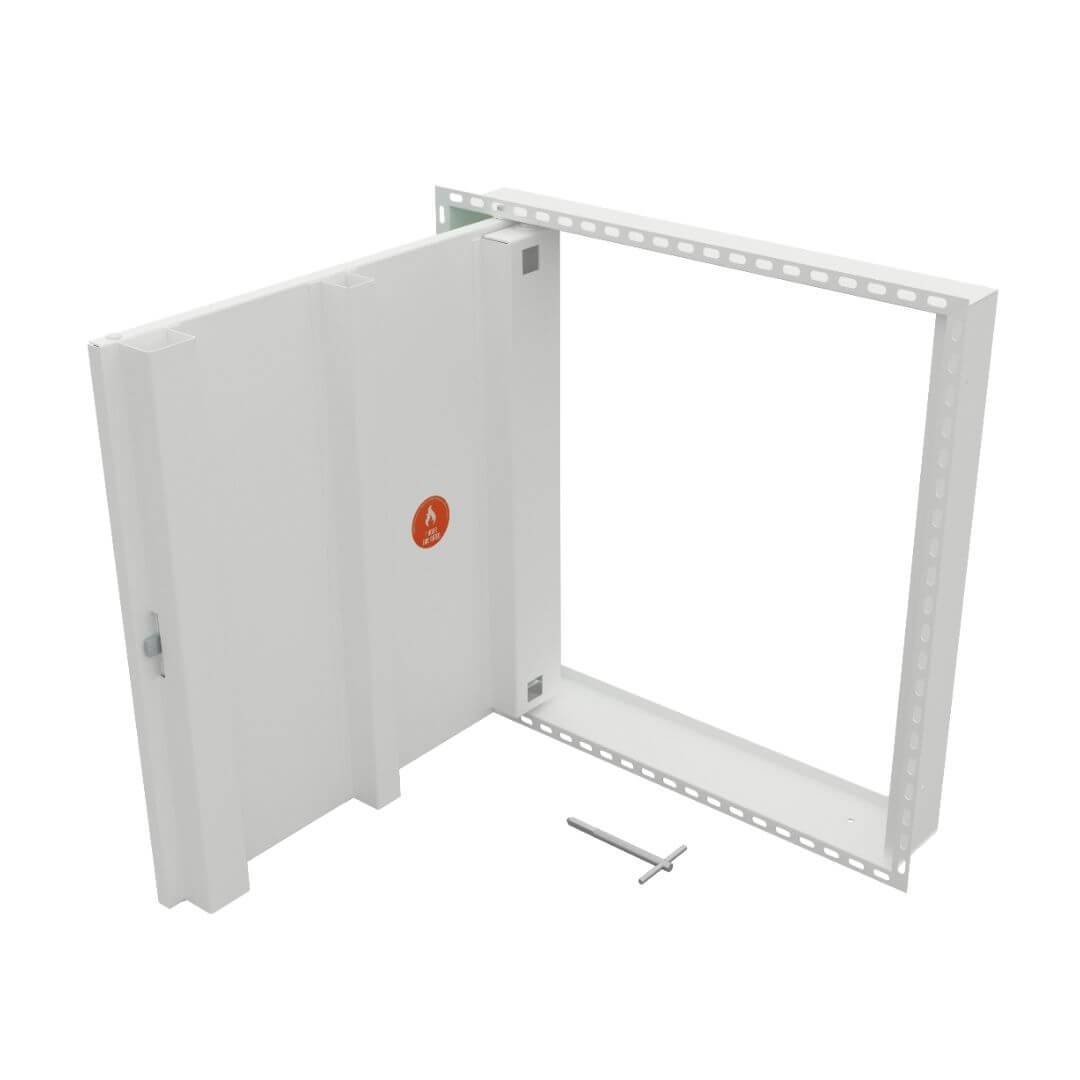

Fire Rated Tiled Access Panel

Name: Fire Rated Tiled Access Panel
Brand: Access Panels Direct
SKU: qvWWBLnjid8gGBoPDmp1Sv

Verified by manufacturer 4 months ago

Access Panels Direct

Tile faced wall access panel.

Jump to:

BOS

01922 313518 Website

Application

Recessed door for ceramic tiles.

Description

APD.CTD/FR60/120

Fire Rated Tile Faced Wall Access Panel with Moisture Board infill and Concealed Beaded Perforated front flange to take a ceramic tile. Fire rated to 1 hour. Supplied with either a Three-way Lock and Plastic Tee Key or Concealed Touch Latches. Other Locking Options available (refer to the Locking Options Guide). Door and Frame Fully Polyester Powder Coated RAL 9010, 20% Gloss.

Fire Rated Tile Faced Wall Access Panel – Manufactured to order from 1.5 mm thick Zintec Steel with a front perforated flange (hidden when tiled) and polyester powder coated with a matt white RAL 9010 20% gloss. The recessed door is lined with 12.5 mm moisture resistant plasterboard and comes complete with a sliding pin hinge system. Various locking systems are available including touch catch, three-way locking and quarter turn lock. For more information please contact our technical sales department.

Features and benefits:

Resistant.
Suitable for areas.

Fire Rating:

This APD.CTD/FR60 access panel has been independently tested to BS476. Part 22, 1987. A two hour fire rated tile faced wall access panel is available. For more information please contact our technical sales department.

General information

Color	White Guidance for specification option: Polyester Powder Coated in matt white RAL 9010 20% gloss.
Finish	Polyester powder coated
Material	Steel
Warranty description	10 year Guidance for specification option: Valid if the access panel is used correctly, not misused and is not modified in any way.
Size	- Manufacturer guidance Made to order, consult manufacturer for options.

Uniclass	Pr_30_59_36_01 Access panelsPrimary
CAWS	K10/57 Encasement on timber framing K10/41 Wall lining system (metal furrings) K10/55 Encasement system (metal framing) K10/35 Wall lining system (metal framing) K10/45 Wall lining system (adhesive) K10/50 Suspended ceiling system on metal framing K10/30 Metal stud K10/15 Lining on timber K10/25 Ceiling lining on timber K10/430 Access panels

Specification data - Access panels

Position	Wall mounted.
Size	- Manufacturer guidance Bespoke, consult manufacturer for options.
Frame	Exposed picture frame type.
Panel	-
Material	Steel Guidance for specification option: Zintec steel.
Integral finish	Powder coated. Guidance for specification option: Polyester Powder Coated in matt white RAL 9010 20% gloss.
Latch or lock type	Budget lock. Magnetic catch. Security locks.
Operation	Manual.
