FirePro® SP FireStop EN - Linear cavity firestop
Verified by manufacturer 3 months ago
SP FireStop EN 60
SP FireStop EN 60

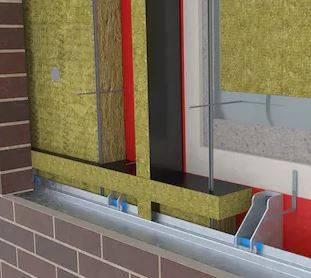

Stone wool insulation cavity firestop for use within cavities formed between compartment walls (vertical) and compartment floors (horizontal) and the external wall.
Application
FirePro® SP FireStop EN has been tested in accordance with BS EN 1366-4:2021 and is suitable for use as a linear cavity firestop in both vertical and horizontal orientations. SP FireStop EN has been tested with multiple substrate types including masonry/concrete, SFS and composite panels with a stone wool core. SP FireStop EN can achieve fire resistance ratings of up to 120 minutes (EI 120) in cavities up to 600 mm, depending on the application. SP Firestop EN has been classified in accordance with BS EN 13501-2: 2016
Description

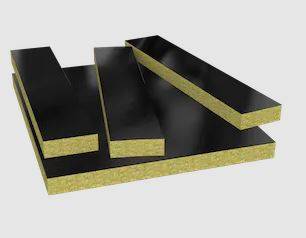

FirePro SP Firestop EN comprises of both a medium density stone wool slab faced with black aluminium foil on both sides. SP FireStop EN is available with three sizes of SP FireStop Fixing Bracket (small, large or extra large). Black aluminium foil tape is also available for the taping of joints at the abutment between slabs.
Features and benefits:
- Tested to provide up to two hours of fire resistance.*
- Resists the passage of smoke – black aluminium foil faced on both sides.
- Suitable for cavity widths up to 600 mm.*
- Easy to install, dry fit system.
- Tested within a full scale furness in accordance with BS EN 1366-4:2021
- Tested against a SFS substrate both horizontally and vertically.
*Subject to application.
General information
Color | Black |
Finish | Foil Matt Lacquered |
Material | Stone wool Rock fibre mineral wool Aluminium |
Shape | Rectangle |
Length | 1000 mm |
Width | 1200 mm |
Height | 60 mm 90 mm |
Warranty description | Manufacturer guidanceNot applicable. |
Uniclass | |
CAWS | P10/432 Cavity barriers P12/360 Mineral wool rigid batts F30/180 Cavity closers H30/370 Fire resisting profile fillers F30/18 Cavity closers H31/305 Fire-resisting profile fillers |
Specification data - Mineral wool fire-stopping
Material | |
Standard | To BS EN 1366-4:2021. |
Type | Rigid. |
Density | Manufacturer guidanceMedium density. |
Facing | Metal foil laminate. |
Fire performance | Fire resistance: EI 60 to BS EN 13501-2. |
Recycled content | 20—20%. |
Reaction to fire | Euroclass A1 non-combustible. |
Thickness | 75 mm. |
Width | 1200 mm. |
Length | 1000 mm. |
Colour | Black. |
Accessories | Not required. SP FireStop Fixing Bracket SP/S - Cavity size: 100 mm (maximum). SP FireStop Fixing Bracket SP/L - Cavity size: 400 mm (maximum). SP FireStop Fixing Bracket SP/XL - Cavity size: 600 mm (maximum). |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stone wool Rock fibre mineral wool Aluminium |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceNone available |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceBetween 20-26% recycled content. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
FirePro® SP FireStop EN Datasheet
