Flagon BSL
Verified by manufacturer 5 months ago

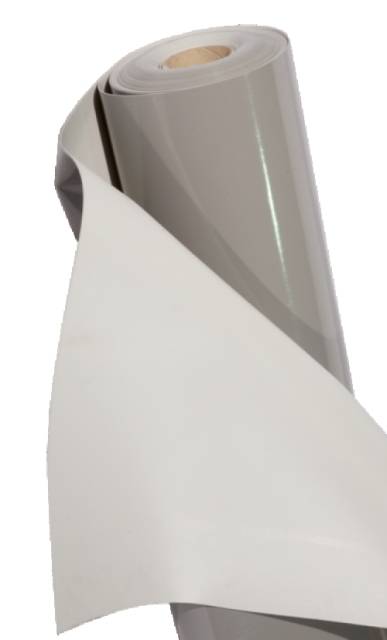

A single layer synthetic membrane of plasticized PVC.
Application
Designed for underground works in foundations and tunnels. Typical applications include lining of natural and artificial tunnels and as a humidity screen for foundations.
Description
A synthetic membrane of plasticized PVC, manufactured by co-extrusion, producing a single layer membrane with different colour surfaces. The upper signal layer is coloured white and the lower surface black, which enables damaged areas to be immediately identified.
Features and benefits:
- Displays high mechanical resistance and is resistant to roots, washout water action, low temperatures and eddy currents.
- The liner can also be supplied with inherent fire resistance to Class ‘B’ in accordance with DIN 4102/1.
- Joints are fixed/ sealed by welding. Laps are dependent on location and welding method.
General information
Material | Polyvinyl chloride (PVC) |
Uniclass | |
CAWS | J40/297 Waterproofing/ damp-proofing/ gas-retardant membrane |
Product range |
Specification data - Polymeric membranes
Material | Polyvinyl chloride (PVC). |
Thickness (minimum) | 2 mm. |
Hydrostatic resistance | Waterproof (72 hours at 4 bar). Manufacturer guidanceTo DIN 16726-5.11. |
Resistance to tearing | >80 N/mm. Manufacturer guidanceTo DIN 53363. |
Tensile strength (to EN ISO 527) | >16 N/mm². |
Elongation to break | >300%. |
Puncture resistance | >1100 mm. Guidance for specification option: 2 mm. >1800 mm. Guidance for specification option: 3 mm. Manufacturer guidanceTo DIN 16726-5.12. |
