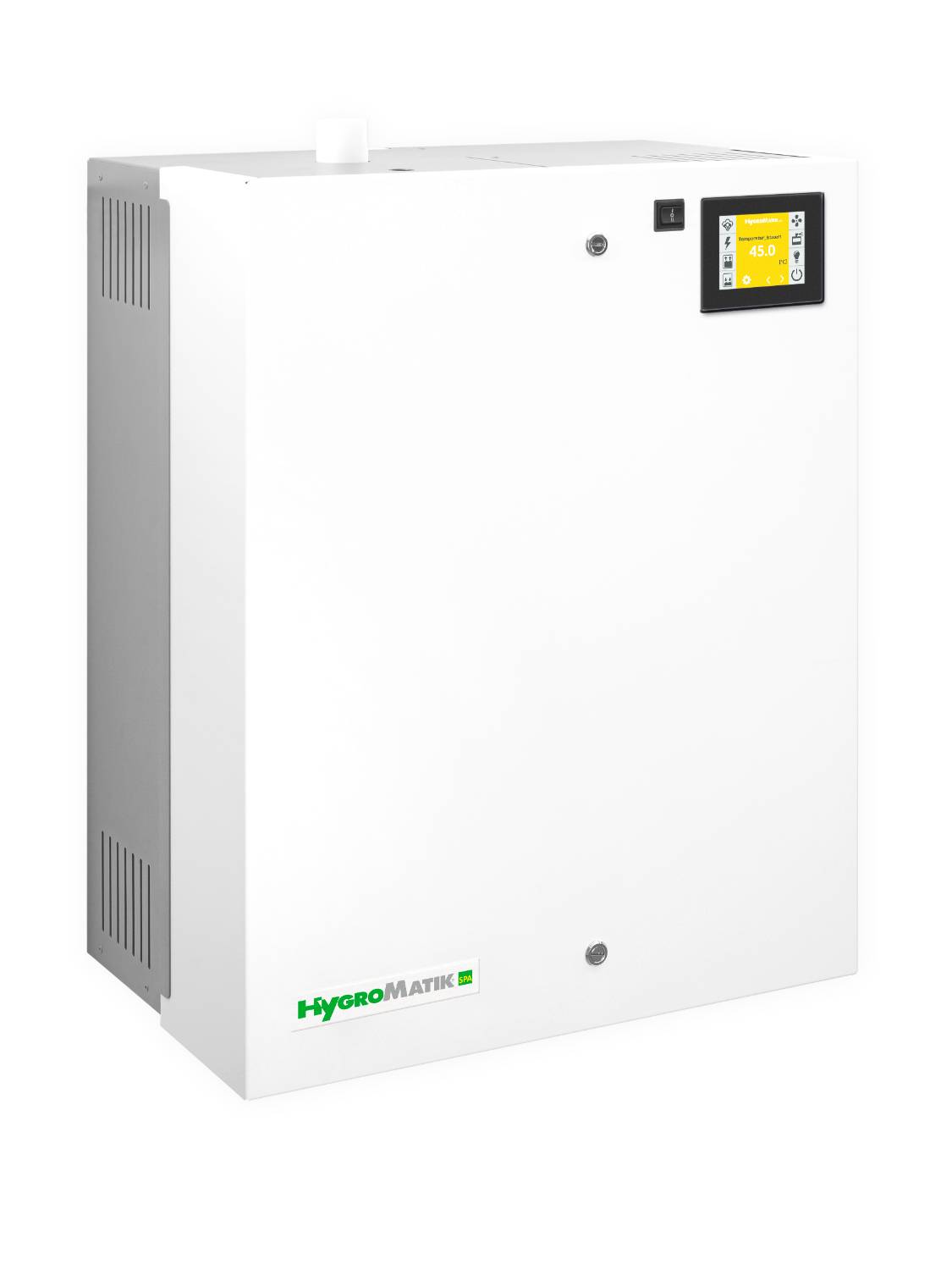

FLH - FlexLine Resistive - Steam Humidifier Range

Name: FLH - FlexLine Resistive - Steam Humidifier Range
Brand: CAREL
SKU: 3csGuvwN694AvEe9f6gHTs

Verified by manufacturer 3 months ago

FLH03 - rated steam production: 2.7–3.3 kg/h

CAREL

Third party certifications:

Watermark
Certificate type
Declare
Certificate type

Steam humidifiers which consist of a basic model that can be expanded to create an individual humidification solution.

Jump to:

+44 (0)20 8391 3540 Website

Application

Applications include:

Public buildings and offices.
Production and manufacturing processes.

Description

Steam humidifiers which consist of a basic model that can be expanded to create an individual humidification solution suitable for all requirements.

Features and benefits:

Ease of installation by means of individual pre-configuration ex-factory.
Expansion options for retrofitting.
Autonomous control and stabilization of air humidity in ventilation systems for industry and processes.
Capacitive 3.5“ touch display.
Adjustable power limitation from 1% to 100%.
Adjustable load shedding to temporarily adapt operation to the respective load conditions.
Long-term continuous operation: A robust base material provides our reusable cylinders with high temperature resistance and dimensional stability.
Durable: All FlexLine cabinets are manufactured in corrosion-resistant stainless steel; the powder coating of the housing increases the lifespan and offers optimum work safety.
Robust blowdown pump for removing scale deposits to ensure long operating life cycles and minimal maintenance.
Mechanical safety temperature limiter for heater type steam humidifiers.
Numerous control and reporting functions can be assigned to up to 11 relays depending on the unit.
Freely programmable, overload-protected digital input.
Standby heating for quick steam production.

Certifications:

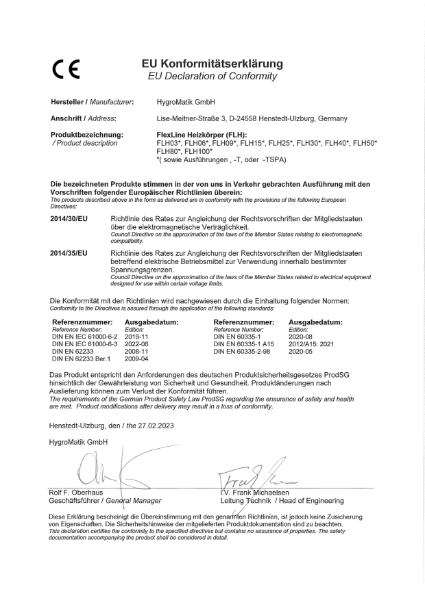

VDE and GS certification; CE- and EAC-compliant.

General information

Color	White Silver
Finish	Powder-coated
Material	Metal Guidance for specification option: Housing.
Shape	Other
Length	320 mm 420 mm
Width	540 mm 640 mm 1170 mm
Height	535 mm 695 mm 785 mm
Warranty description	One year Guidance for specification option: Materials warranty (from the manufacture date, excluding consumables).

Uniclass	Pr_65_67_39_84 Steam humidifiersPrimary

Specification data - Steam humidifiers

Electrical supply type	Single phase, 220–240 V a.c., 50/ 60 Hz.
Steam source	Resistive boiler (heater elements).
Material	Galvanized metal housing.
Access doors for maintenance	Manufacturer's standard.
Accessories	Not required. Standard manifolds. Guidance for specification option: Lances for duct (HVAC). Fan blower, VU10 up to 10 kg/h. Guidance for specification option: Fan blower for room (HVAC). Fan blower, VU30 up to 30 kg/h. Guidance for specification option: Fan blower for room (HVAC). Steam hose. Fogmaker for steam bath. Guidance for specification option: Wellness and SPA. Steam jet nozzle for steam bath. Guidance for specification option: Wellness and SPA. Remote display for steam bath. Guidance for specification option: Wellness and SPA. Temperature sensor for steam bath. Guidance for specification option: Wellness and SPA.

Dimensions	540 x 535 x 320 mm. Manufacturer guidance W x H x L.
Weight	18 kg.
Network type	Modbus RTU. BACnet.
Steam	Rated production: 2.7–3.3 kg/h.
Power consumption	2.1–2.4 kW. Guidance for specification option: Nominal current: 9.4–10.2 A.
Connections	Steam: 25 mm diameter. Water fill: 3/4”. Water drain: Ø1 1/4“.
Pressure	Outlet pressure limits: 0–1500 Pa.

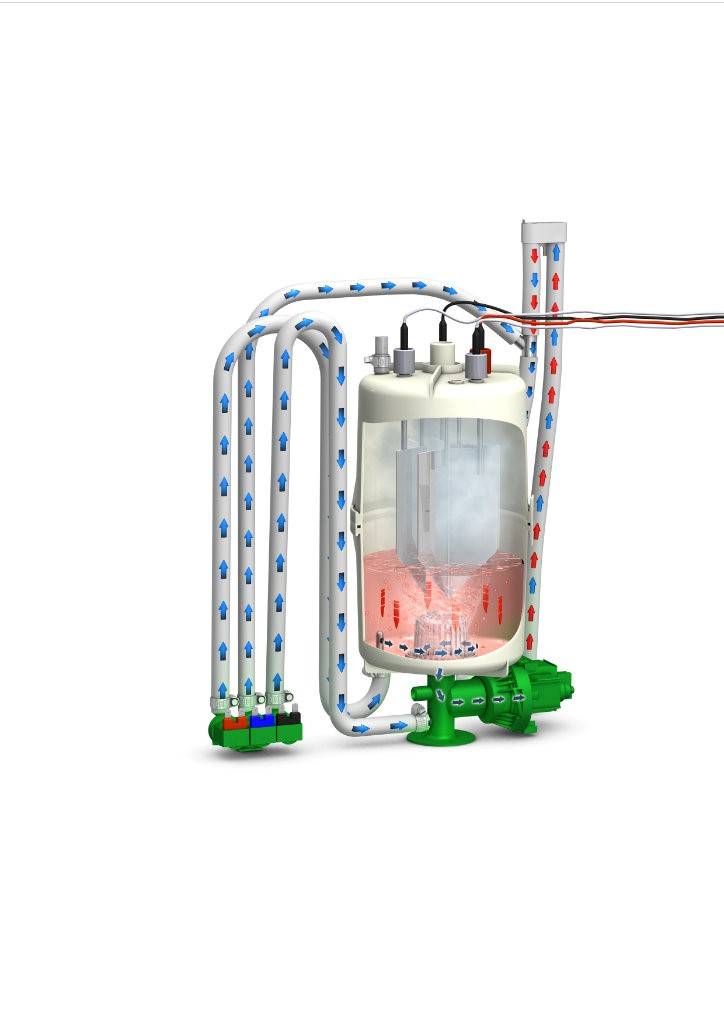

Cylinders	Standard cleanable cylinder. SuperFlush and HyFlush. Guidance for specification option: Cylinder flushing device. HyCool. Guidance for specification option: Integrated waste water cooling. HyFlush and HyCool. Guidance for specification option: Cylinder flushing device and integrated waste water cooling. Manufacturer guidance One cylinder.
Conditions	Operating: 5 to 40°C, to not exceed 80% relative humidity.
Ingress protection	IP20.
Model	FLH-T (HVAC) - Resistive. Guidance for specification option: Equip HygroMatik FlexLine with the power you need for optimum humidification. Performance classes with steam output from 3 kg/h to 100 kg/h are selectable in 6 housing sizes. In addition, individual performance adjustments can be programmed both at the factory and on site. FLH-TSPA (Wellness/ SPA) - Resistive. Guidance for specification option: Equip HygroMatik FlexLine with the power you need for optimum humidification. Performance classes with steam output from 3 kg/h to 100 kg/h are selectable in 6 housing sizes. In addition, individual performance adjustments can be programmed both at the factory and on site. Highest regulating accuracy and top protection against excessive temperatures by means of second supply air and ventilation steam bath fan. The option of up to 4 different lighting scenarios. Flexible switchover of up to 4 essences without changing containers.
Water	Fill: · Temperature limits: <40°C. · Water pressure limits: 1 to 10 (bar). · Conductivity limits: 125 to 1250 μS/cm.
Fan	One blower, type VU10. Guidance for specification option: Power supply: 220-240V / 1 / N. Rated power: 26 W. Sound level: 49 dB(A) (at 1 m distance). Manufacturer guidance Steam outlet adapter Ø25 mm to Ø40 mm needed.
