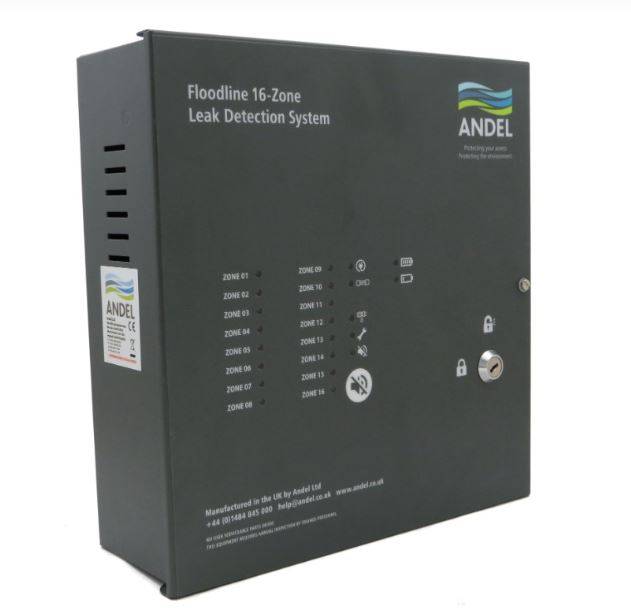

Floodline® Multi-Zone Control Panel

Multi-zone control panel with options of four, eight or sixteen zones.

The control panel continuously monitors a network of multiple leak detection zones (a zone can be anything from a single point to multiple liquid, gas and oil sensors, as well as liquid leak detection distance measuring up to 1500 metres via Andel’s Floodline Ranger® System).

The whole network is continuously monitored for leaks and continuity. Temperature and humidity sensors can be configured for four separate alarm levels in any zone. Zones are isolated from each other and individually displayed, so the system can accept and report any number of simultaneous or consecutive zone alarms delivering true multiple leak reporting. If an alarm is triggered in any zone, other zones remain unaffected, providing continuous leak detection.

A leak detection alarm is indicated by a flashing LED as well as an audible alarm with mute function. All alarms are displayed separately and continuously until corrected and reset.

Output relays connect to building management systems (BMS) and remote alarms and can drive other devices such as beacons and valves to isolate water, gas and oil supply in the event of a leak alarm.

Features and benefits:

• Four-zone, eight-zone and sixteen-zone options.
• Monitors the full range of Floodline® leak detection sensors, including liquid leak detection distance measuring up to 1500 metres via Andel’s Floodline Ranger® System.
• Monitors temperature and humidity sensors.
• In the event of an alarm, all other zones remain unaffected, providing continuous full leak detection monitoring and reporting.
• LEDs provide clear system status and alarm information.
• Audible alarm with mute function.
• Output relays connect to BMS and remote alarm.
• Includes controls for mute (buzzer silence/ alarm accept) button, security key-switch output disable/ reset.
